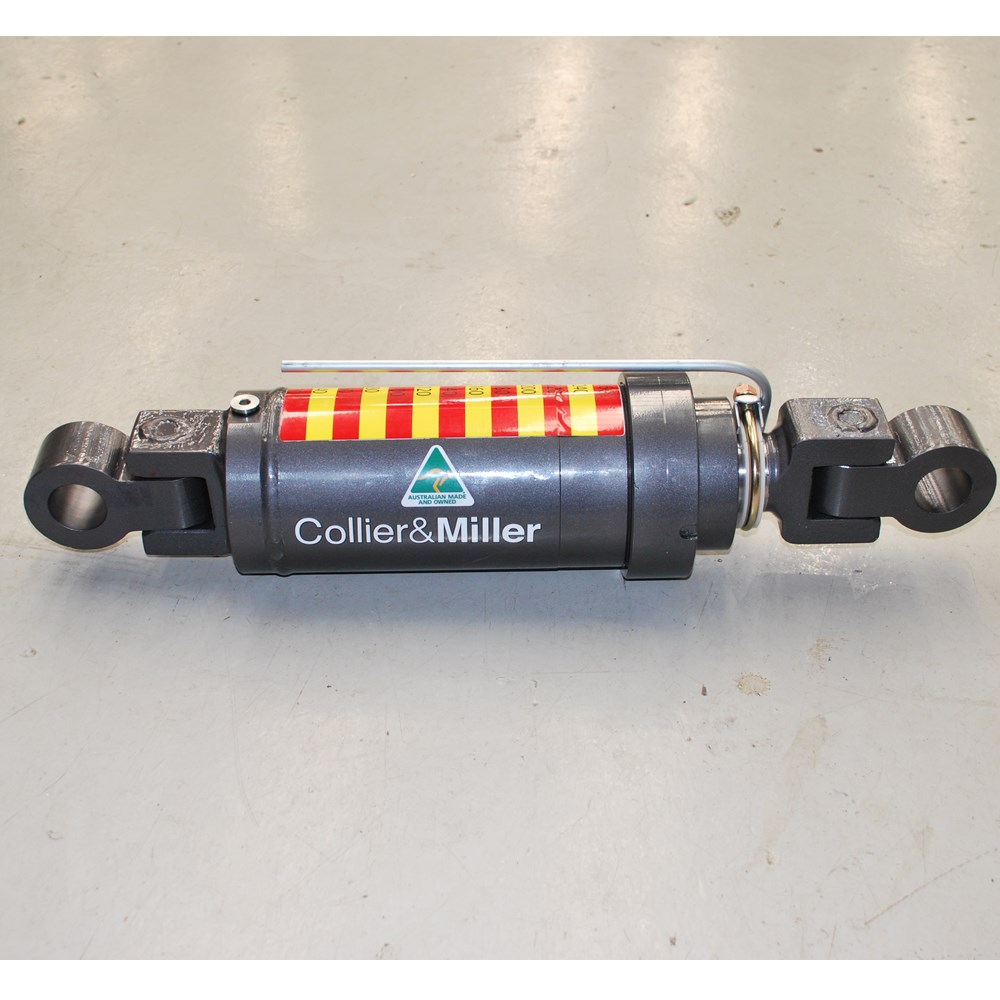

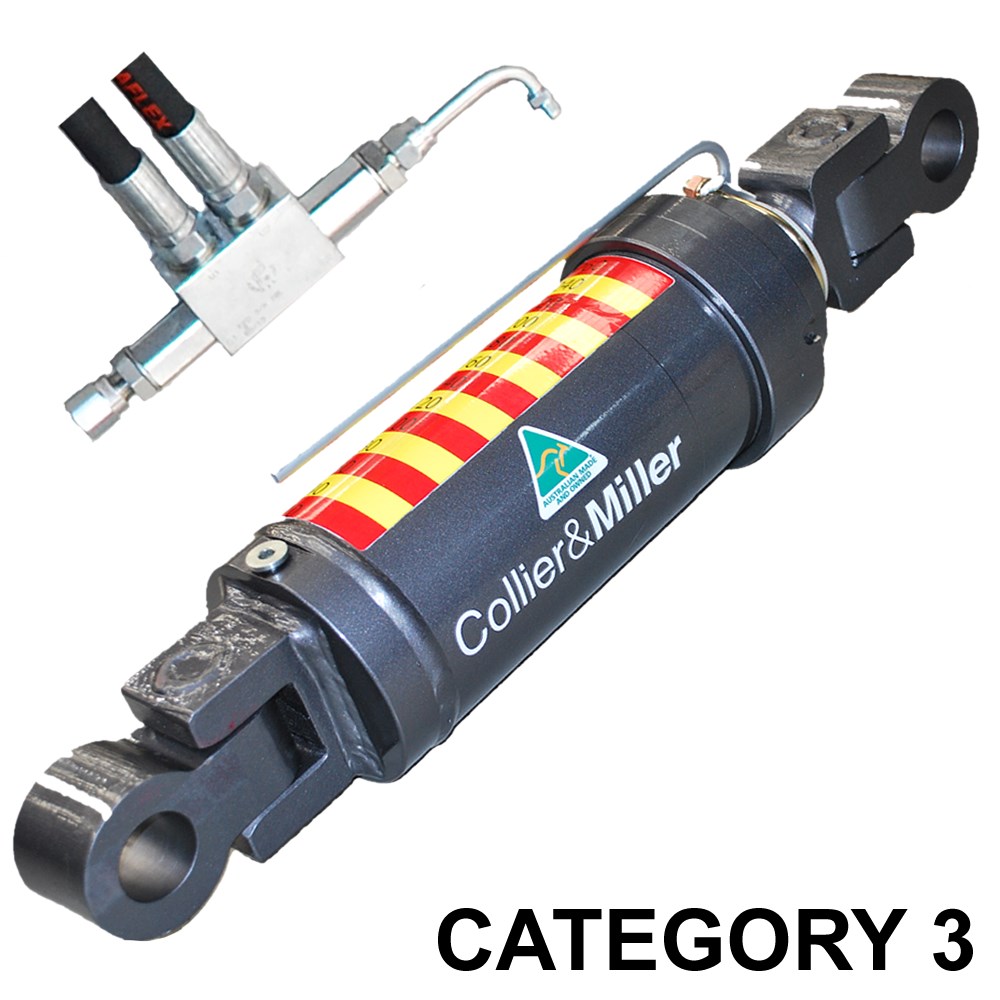

C&M Australian designed and manufactured Category 3 hydraulic top link supplied with configurable A/B port orientation and hydraulic lock valve.
This hydraulic top link is well designed with the capability to set the ports to either A or B orientation depending on how the clevis is mounted on your machinery. Manufactured in our own factory in Australia it follows the Collier & Miller design philosphy of extreme heavy duty design, coupled with high quality components that guarantee's long life and excellent performance.
Features
- Heavy Duty Category 3 - (1-1/4" diameter hole) swivel knuckle
- 8" Stroke x 4" Bore x 2.00" Shaft
- Configurable A/B Port orientation
- High performance 5 piece piston seal
- High performance top end seal

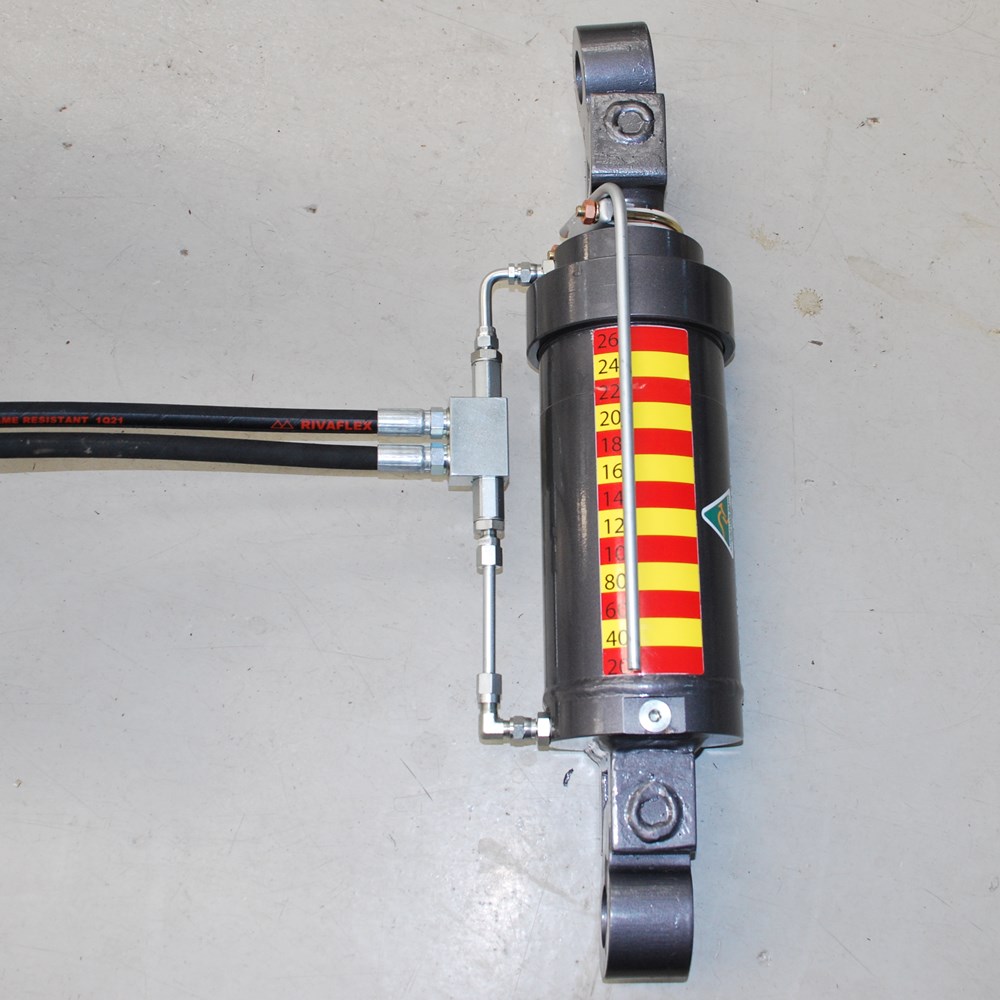

- Stroke length indicator

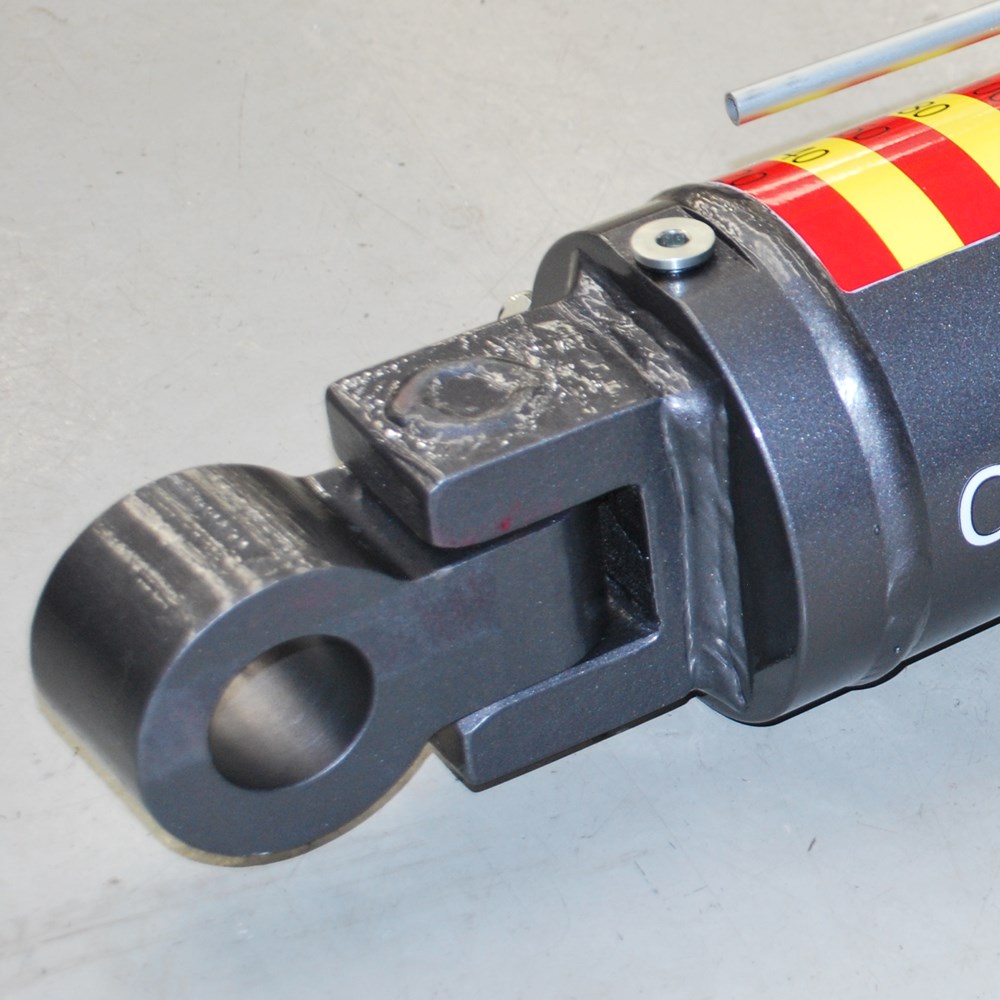

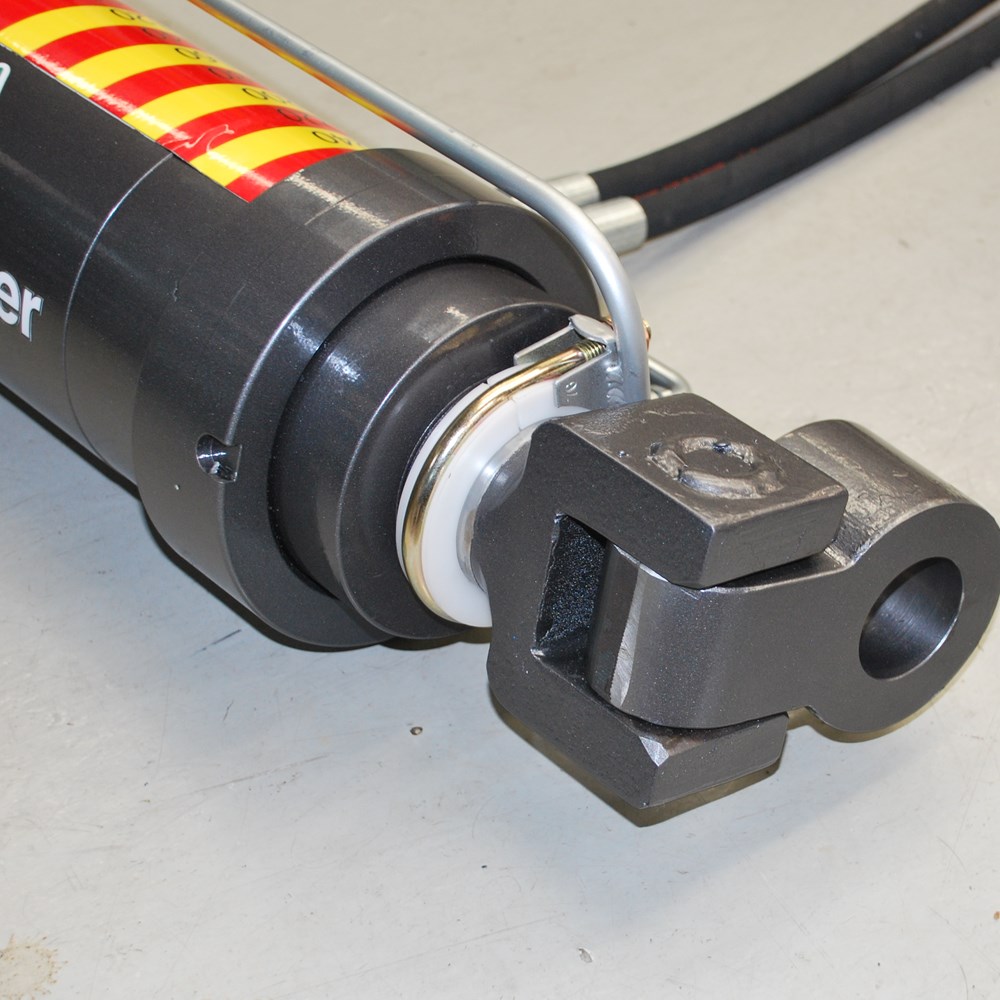

- Swivel clevis mount
Specifications
| Stroke |
202mm |
| Closed centre measurement |
650mm |
| Open centre measurement |
852mm |
| Ports |
3/8" BSPP-Female |
| Base Mount |
1-1/4" Knuckle |
| Shaft Mount |
1-1/4" Knuckle |
| Force Extension |
12,824kG @ 2250psi |
| Force Retraction |
9,618kG @ 2250psi |
