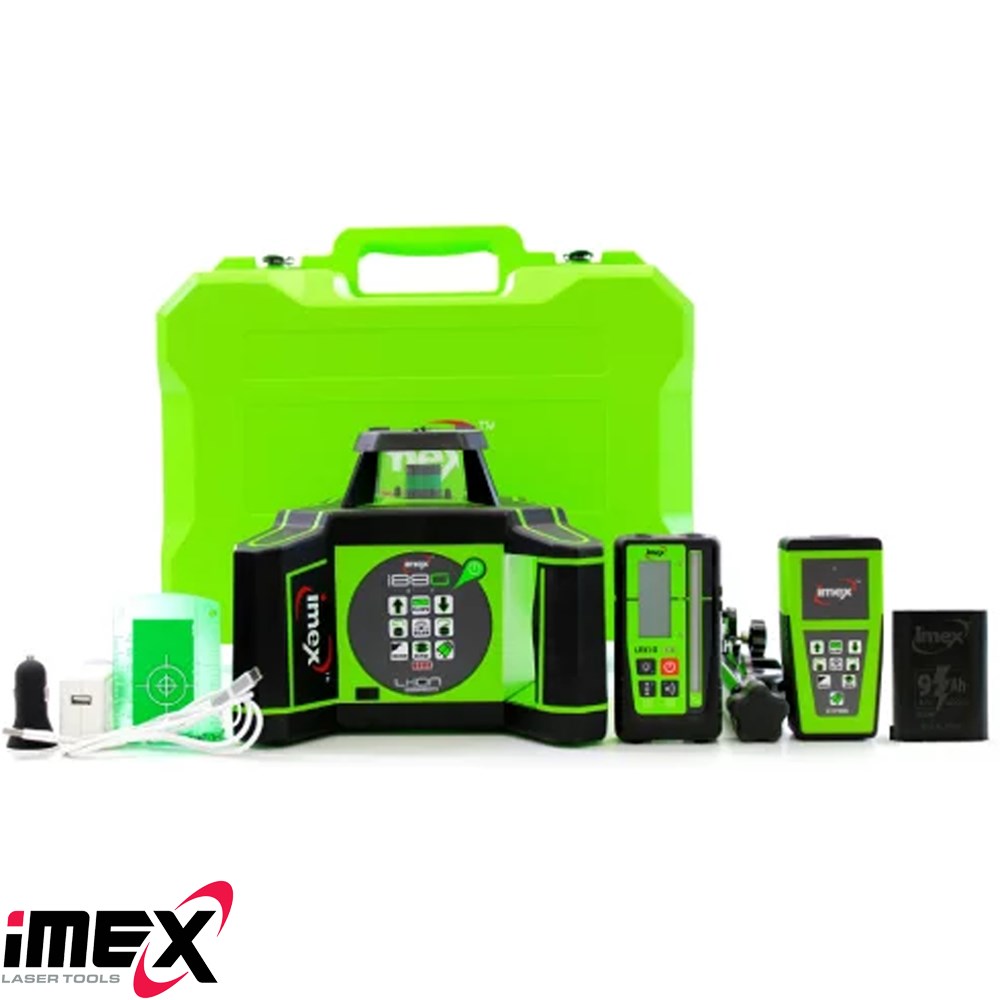

IMEX I88R ROTATING LASER LEVEL

GREEN BEAM WITH LRX10 RECEIVER

Product Code: 012I88G
  $2025.00
EACH inc GST
Afterpay Logo
Unavailable for this order
In Stock Low Stock Contact Us Please See Attributes 2
Increase value Decrease value

  • Detail
  • Downloads

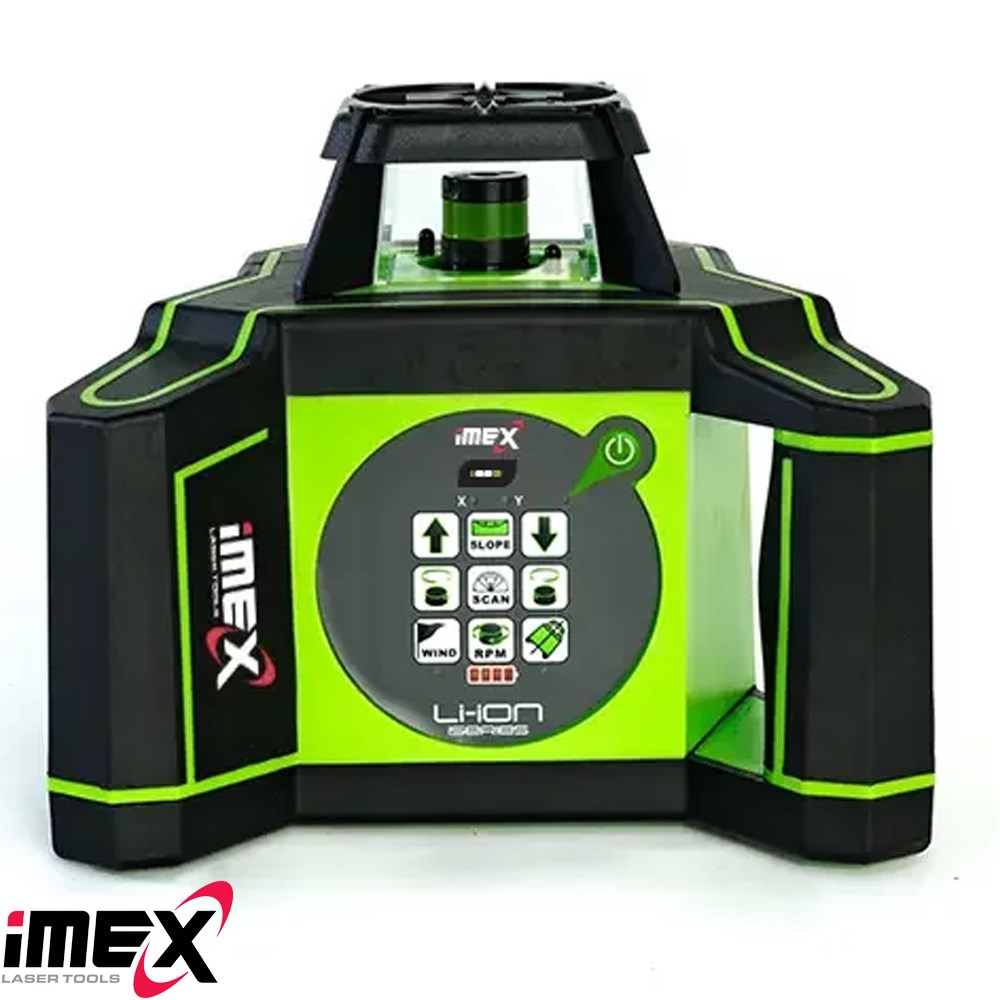

Imex i88G Rotating Laser Level with Green Beam features self-levelling, grade slope function, scan mode, horizontal and vertical, remote controller and 9Ah lithium-ion battery. This tool is highly visible, heavy duty and robust and is included in a water and dust-proof case, with a fully enclosed laser diode for years of trouble-free use.

The measuring device also boasts a sensor based self-levelling system, stepping motor for excellent levelling ability and enhanced accuracy, as well as a robust componentry for reduced calibration and service requirements.

Features:
  • Horizontal/Vertical self-levelling (electronic). 600m range. Dual manual grade slope.
  • 9Ah lithium-ion battery – approx. 24 hours run time
  • USB quick charge port with car charger
  • LRX10 Digital Detector in mm reading (German made)
  • 90mm Detector reading ultra-fine, fine, medium, course and ultra-course.
  • Scan Mode – Allows for part beam rotation in selected working environments, i.e. on interior walls, busy work-sites where other laser interference may be present. Various scan lengths and rotation placement.
  • Dual Grade – Grade slope to 5° (8.8%) in two directions, X and Y axis simultaneously for true grade control. Ideal for pipe layout or concrete slab falls.
  • Plumb Spot – Top and bottom plumb spot beam to assist in set ups over a point.
  • Accuracy – +/- 1.5mm @ 30 metres for excellent results every time.
  • Remote Control Panel – allows grade or other functions to be carried out up to 20 m away from the instrument, for true one-man operation and greater efficiency.
  • Hi-Visibility Case – unique Imex feature, easy to see on the busiest construction site, minimises the risk of the unit being bumped, increasing safety and accuracy.
