OTR® Titan Hub Kit
110H-10/335 EUROPEAN TRUCK
Replacement hub kit to fit
OTR-Titan® agricultural 110H-10 Series stub axles. This hub kit contains all of the components (stub not included) required to repair your hub-stub assembly and reduce your down time. Australian made stub axle designed for heavy duty off-highway agricultural and industrial trailer applications.

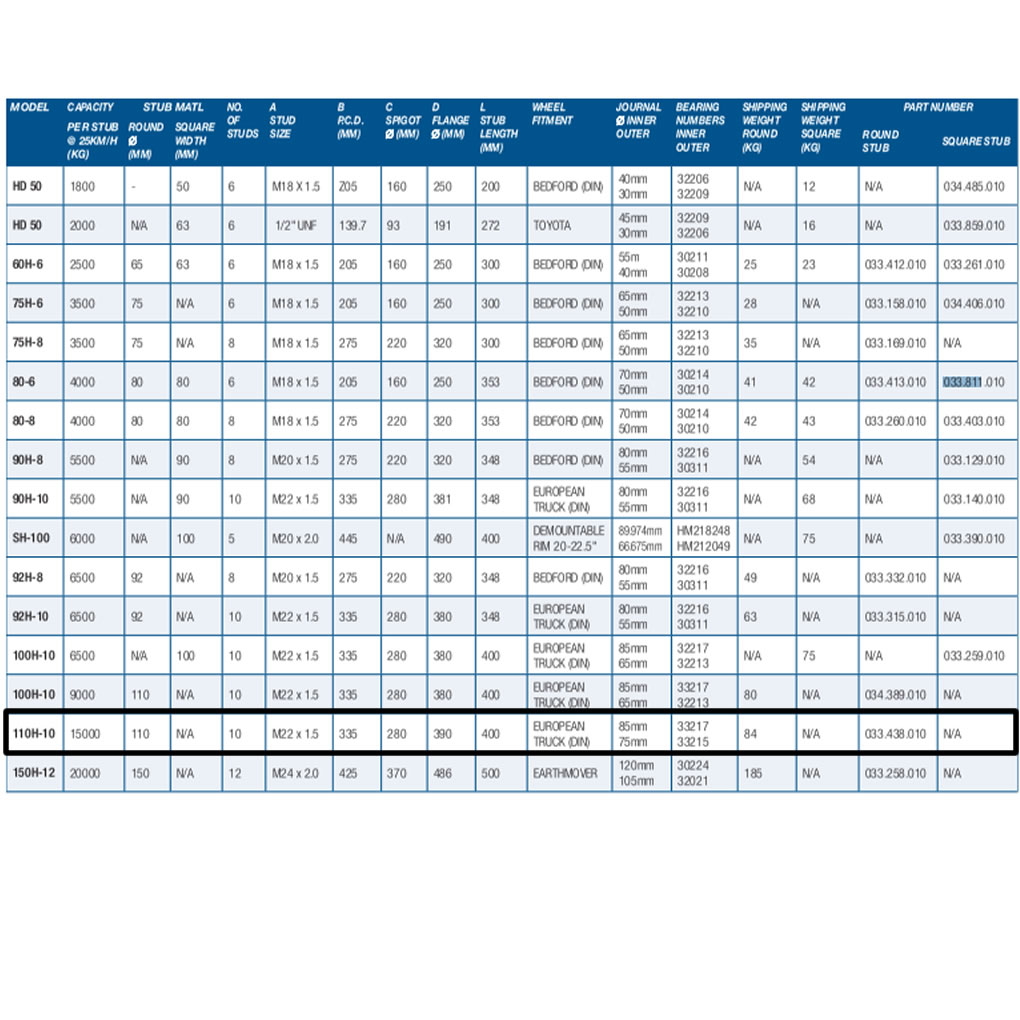

AXLE MODEL |
CAPACITY @25kph |
STUB MATERIAL |
STUD NUMBER |
STUD SIZE |
PCD Ø (MM) |
SPIGOT Ø (MM) |
FLANGE Ø (MM) |
STUB SIZE (MM) |
110H-10 |
15,000KG |
110MM ROUND |
10 |
M22X1.5 |
335 |
280 |
390 |
400 |
WHEEL FITMENT |
JOURNAL INNER Ø |
JOURNAL OUTER Ø |
BEARING INNER |
BEARING OUTER |
SHIPPING WEIGHT |
PART NUMBER |
|
|
EURO TRUCK (DIN) |
85 |
75 |
33217 |
33215 |
84 |
033.438.080 |
|
|

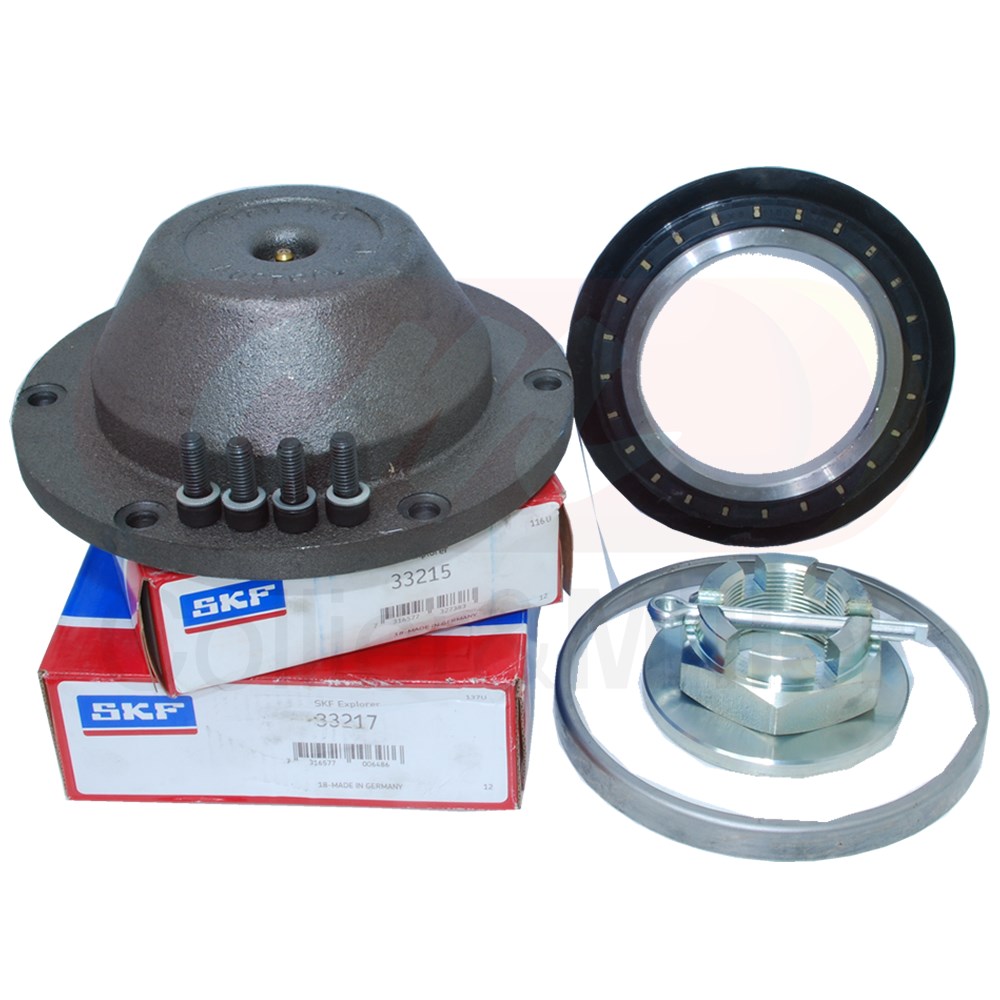

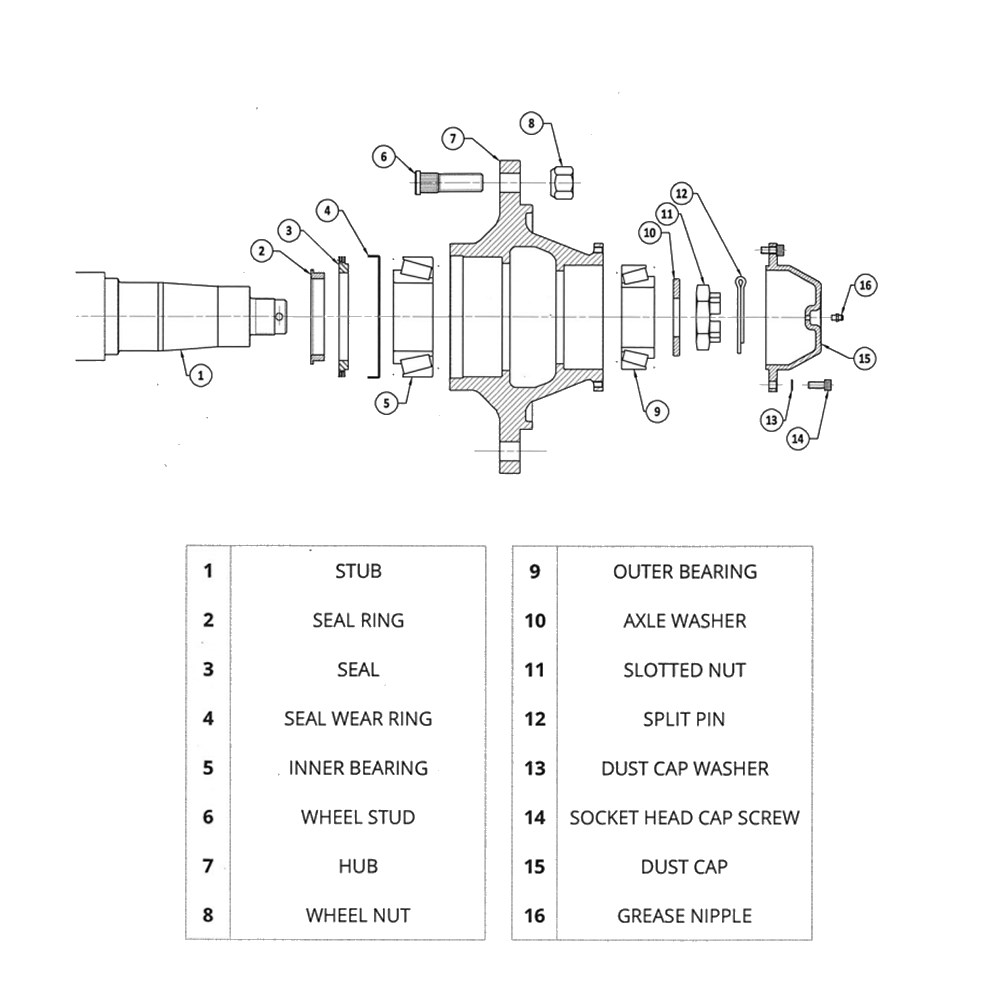

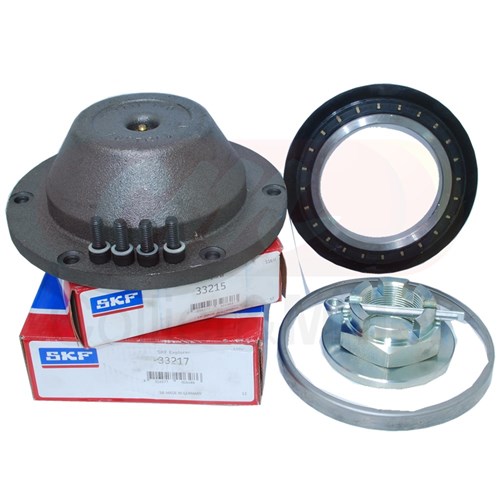

Contents

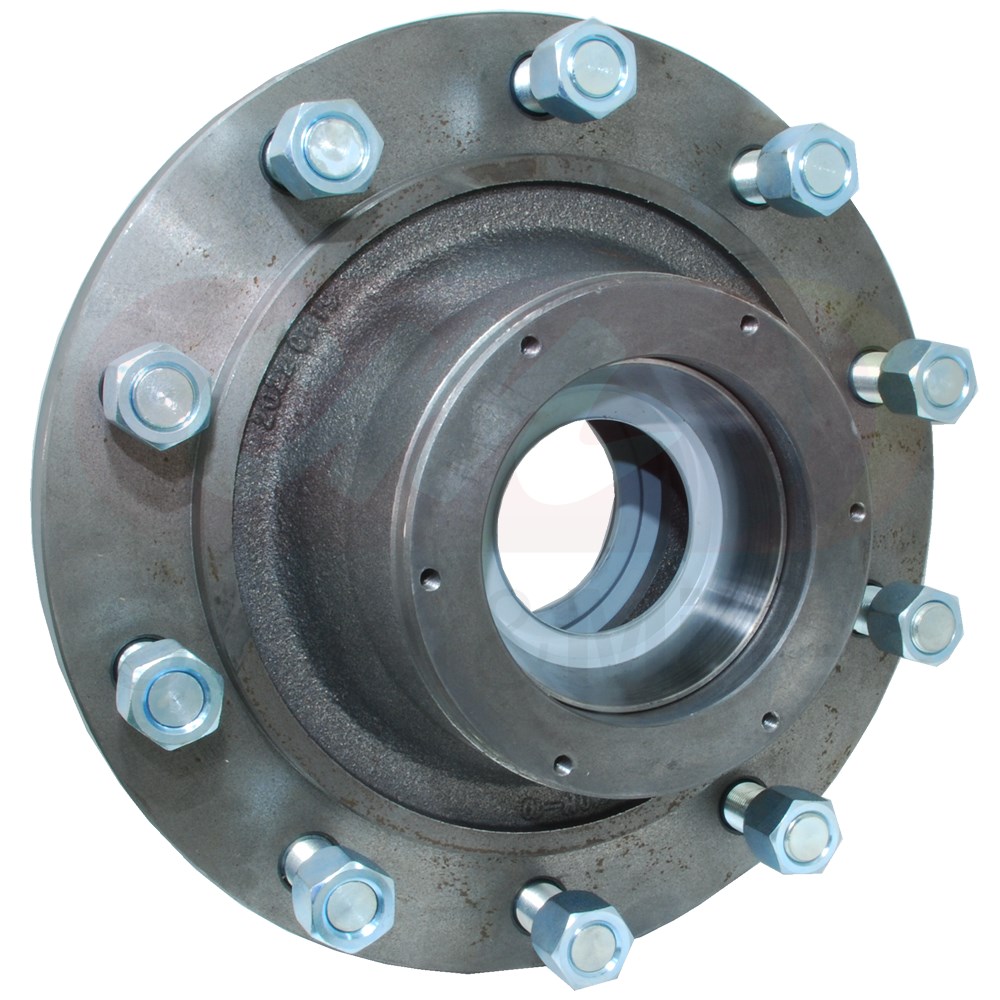

- 1 x Hub
- 10 x studs & nuts (M22x1.5mm)
- 1 x Dust cap & fasteners
- 1 x Castle nut, washer & split pin
- 2 x outer & inner seal rings
- 1 x seal
- 2 x complete bearing sets (inner & outer)
