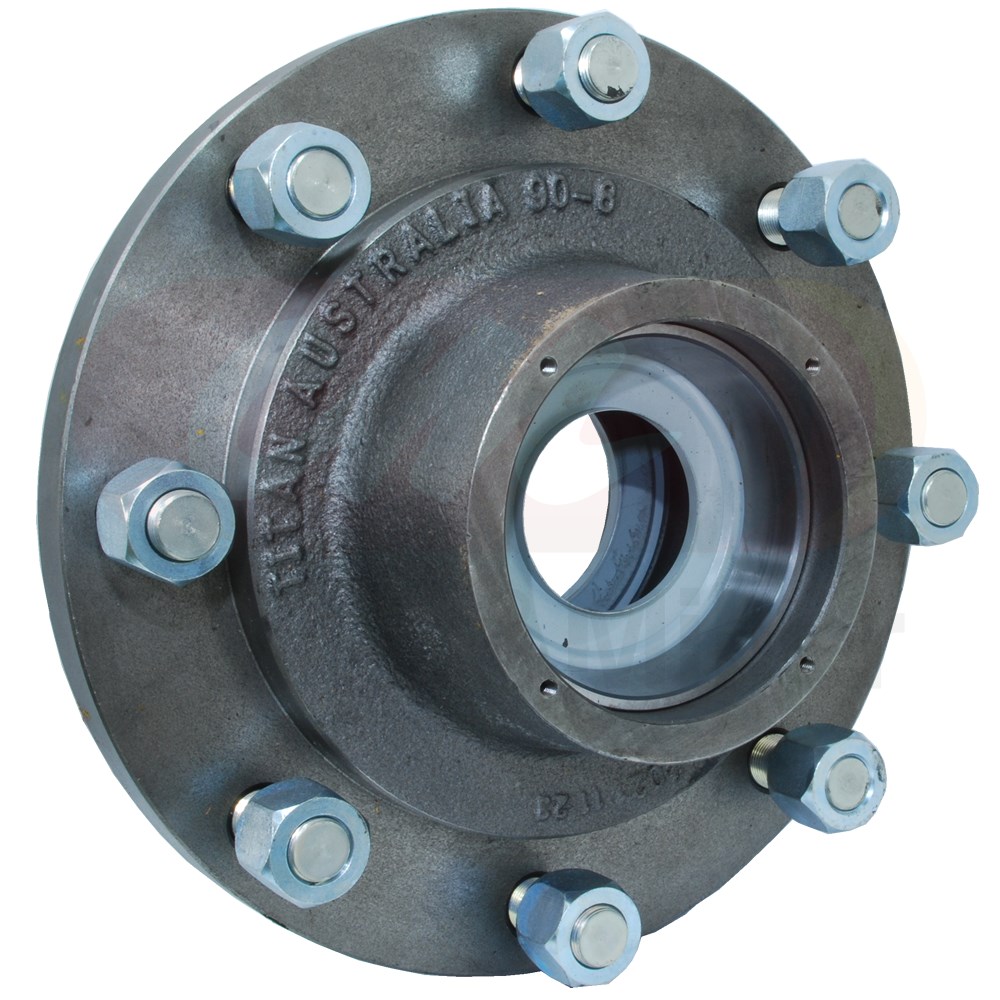

OTR® Titan Hub Kit
90H-8/275 BEDFORD
Replacement hub kit to fit
OTR® Titan agricultural 90-8 Series stub axles. This hub kit contains all of the components (stub not included) required to repair your hub-stub assembly and reduce your down time. Australian made designed for heavy duty off-highway agricultural and industrial trailer applications.

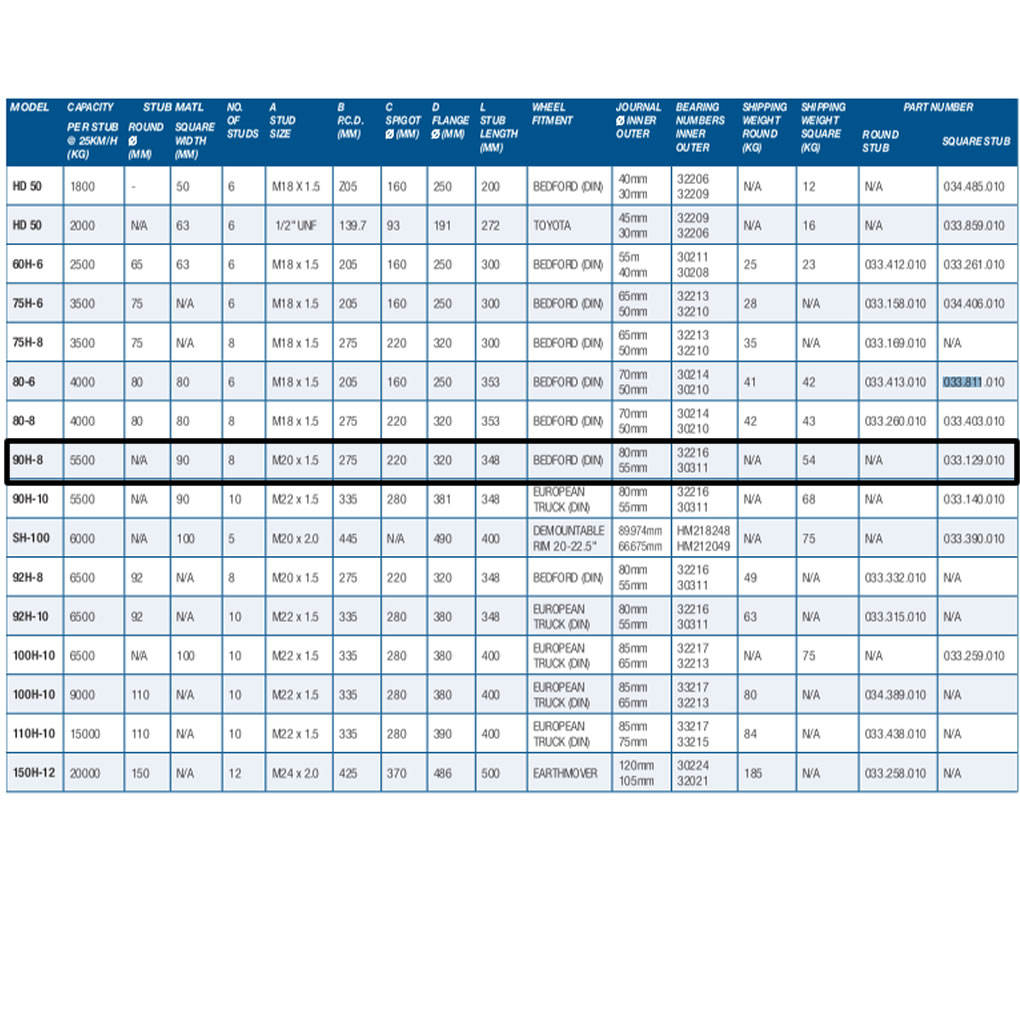

AXLE MODEL |
CAPACITY @25kph |
STUB MATERIAL |
STUD NUMBER |
STUD SIZE |
PCD Ø (MM) |
SPIGOT Ø (MM) |
FLANGE Ø (MM) |
STUB SIZE (MM) |
90H-8 |
5,500KG |
|
8 |
M20X1.5 |
275 |
220 |
320 |
|
WHEEL FITMENT |
JOURNAL INNER Ø |
JOURNAL OUTER Ø |
BEARING INNER |
BEARING OUTER |
SHIPPING WEIGHT |
PART NUMBER |
|
|
BEDFORD (DIN) |
80 |
55 |
32216 |
30311 |
54 |
033.874.010 |
|
|

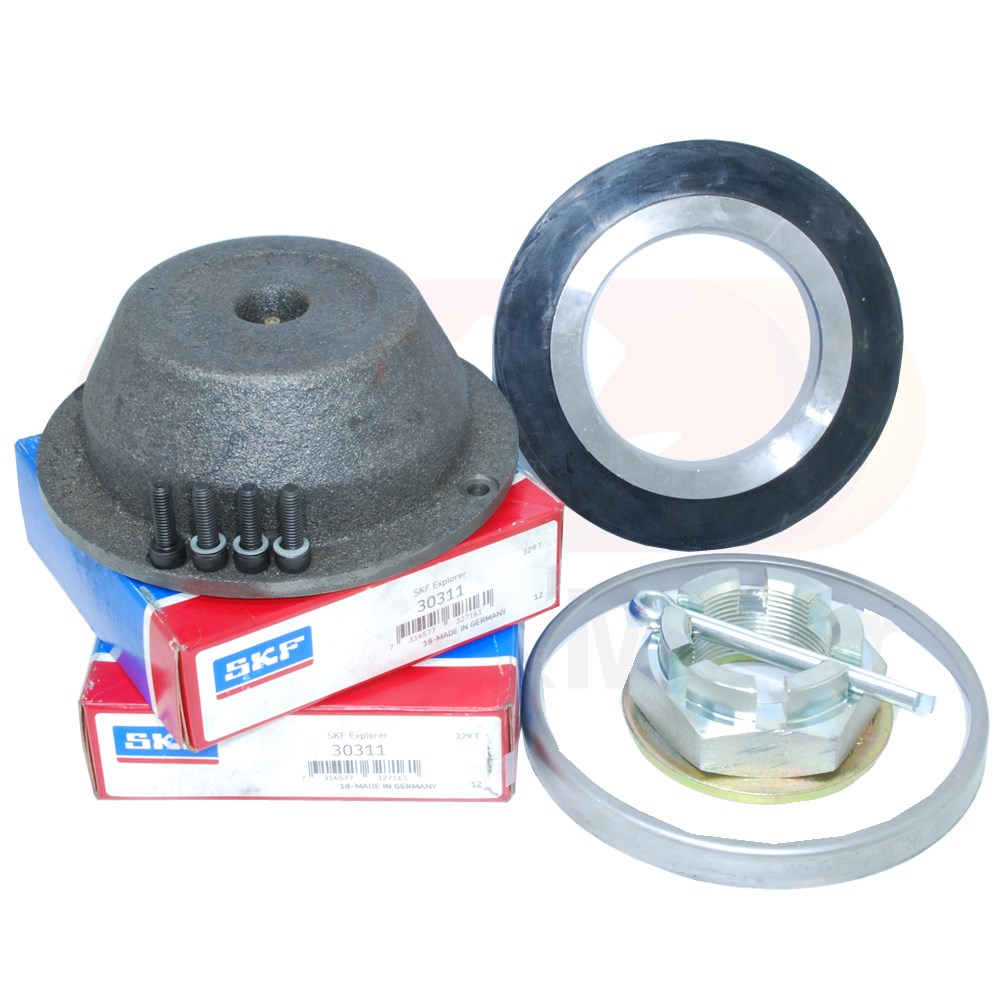

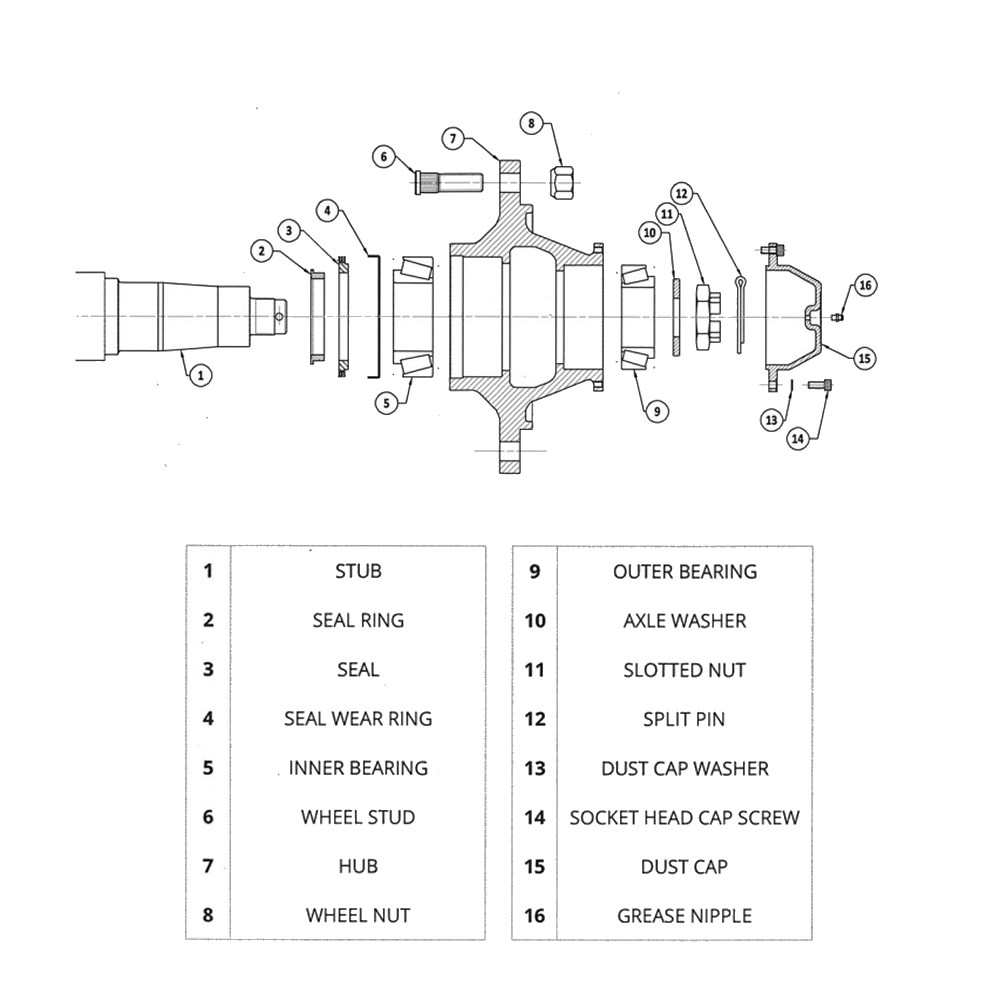

Contents
- 1 x Hub
- 8 x studs & nuts (M20x1.5mm)
- 1 x Dust cap & fasteners
- 1 x Castle nut, washer & split pin
- 2 x Outer & inner seal rings
- 1 x Seal
- 2 x complete bearing sets (inner & outer)
