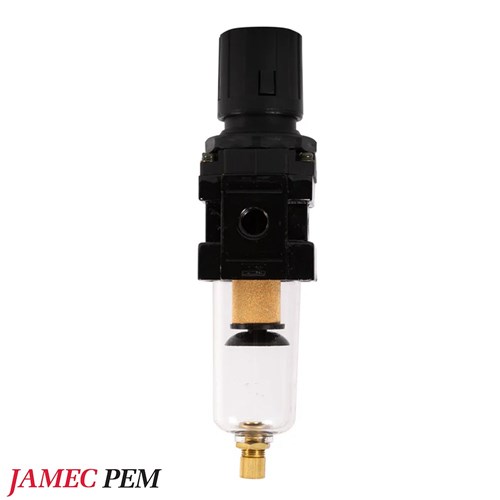

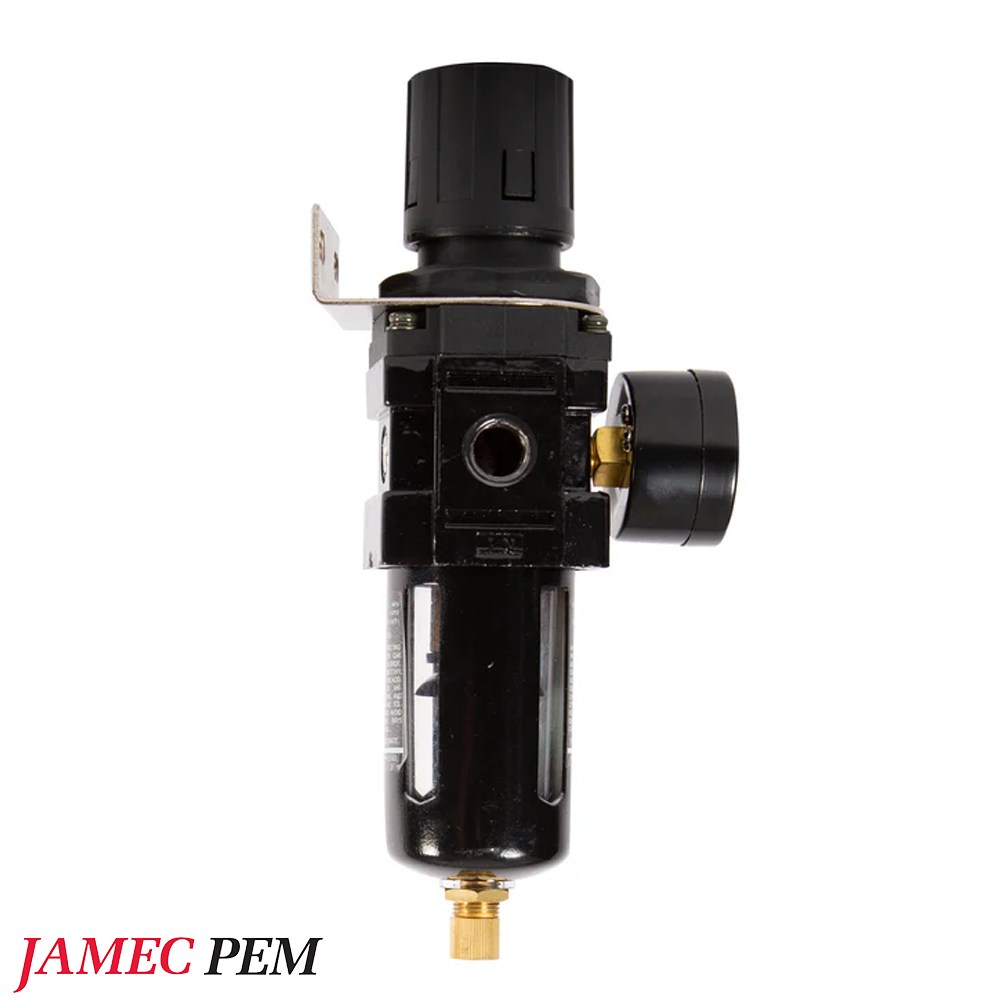

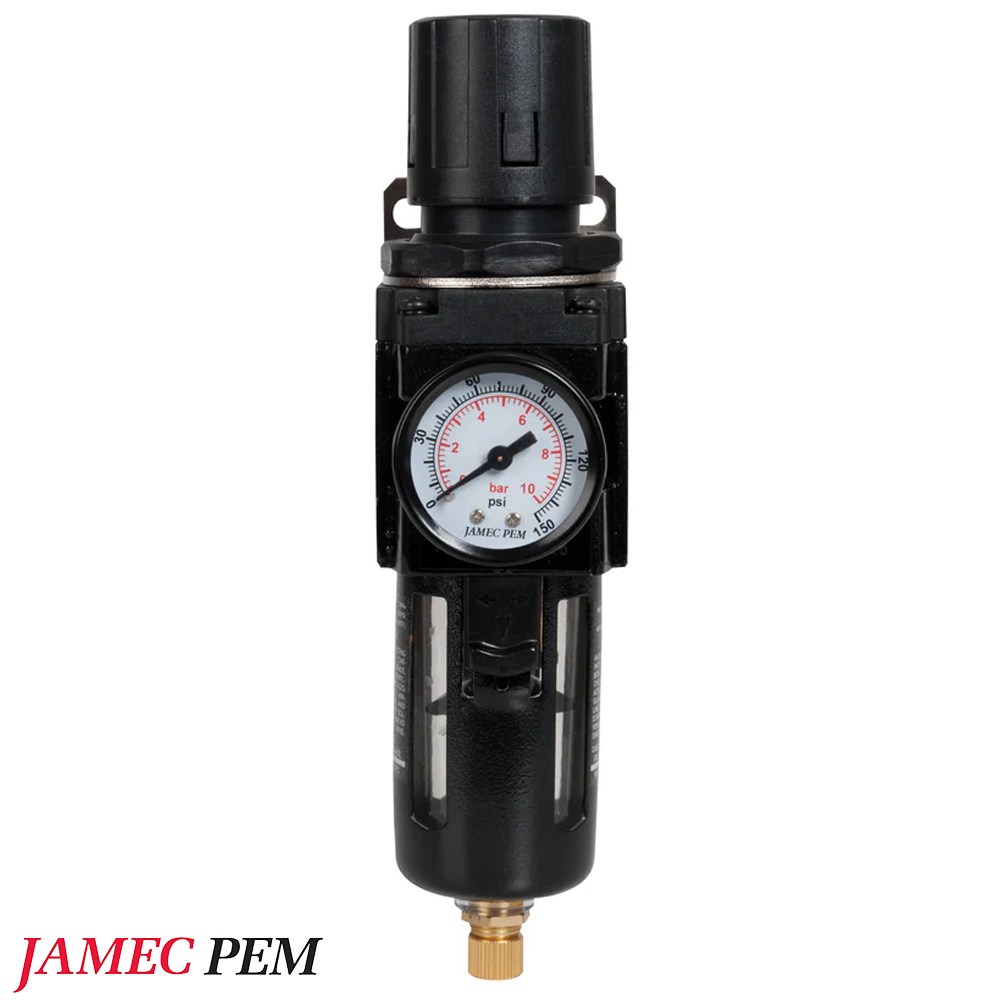

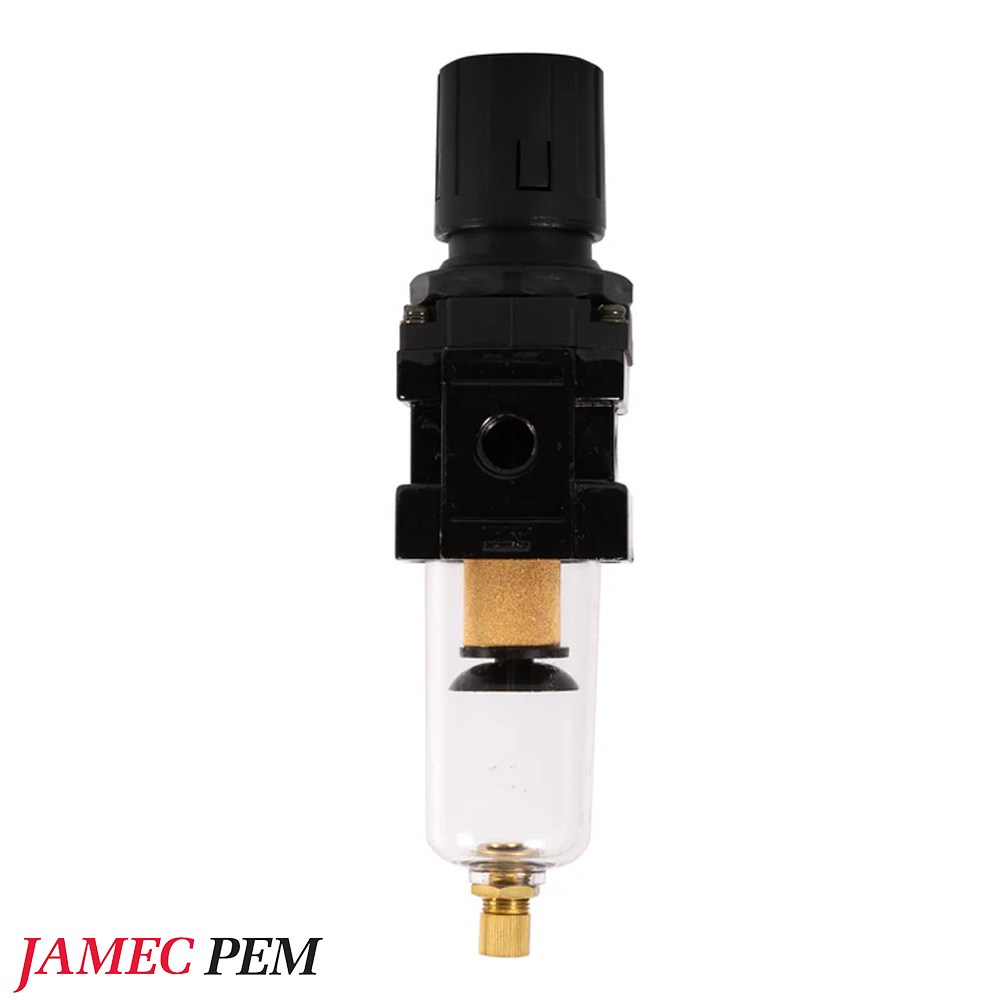

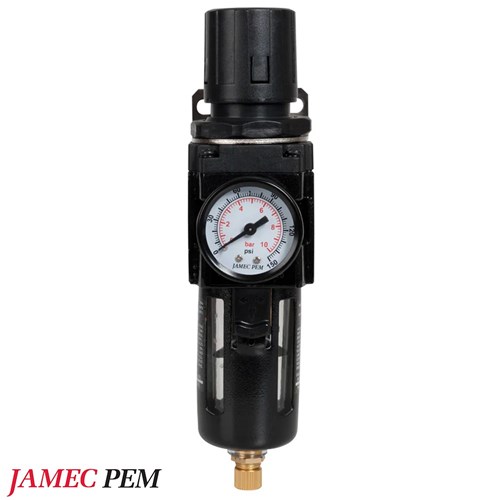

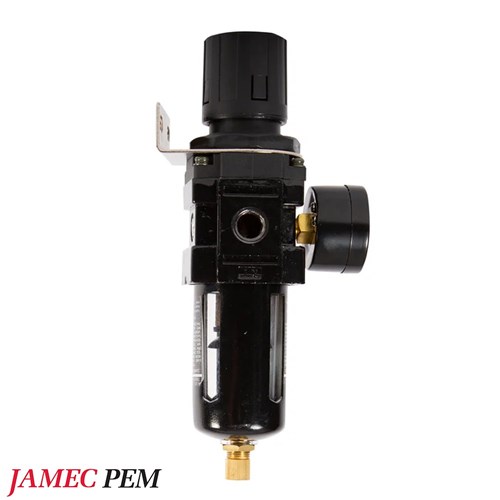

JAMEC-PEM FILTER REGULATOR ¼" BSP FEMALE
The Jamec-Pem ¼" Filter Regulator delivers clean, controlled compressed air for workshop and industrial applications. Designed to remove moisture, oil and contaminants from air lines, it features a 5-micron brass filter element, semi-automatic drain and precise pressure adjustment to help protect pneumatic tools and equipment while ensuring consistent performance.
Features
- 1/4" BSP female inlet and outlet connections
- 5-micron brass filter element removes moisture, oil and particles
- Transparent polycarbonate bowl for easy visual inspection
- Semi-automatic drain valve with manual draining capability
- Locking adjustment knob for precise pressure control
- Robust metal construction with protective metal bowl guard
- Ideal for protecting pneumatic tools, spray guns and workshop equipment
- Includes pressure gauge and mounting bracket for easy installation
Includes
- Filter regulator assembly
- Pressure gauge (1/8" BSP rear entry)
- Mounting bracket
Specifications
- Thread: 1/4" BSP Female
- Pressure Range: 5–150 psi (0–10 bar)
- Maximum Inlet Pressure: 150 psi
- Flow Rate: 71 cfm (2000 L/min)
- Filter Element: 5μm Brass
- Gauge: Dual Scale (psi and bar)
- Dimensions: 53 x 53 x 211mm
- Warranty: 1 Year
