Eye Nuts & Bolts

LIFTING BOLT ON BRACKET 16MM

WLL 1.81T GEARBOX/ENGINE LIFT - USE 10.9 GRADE BOLT

Product Code: 103716
  $18.95
EACH inc GST
Afterpay Logo
4 payments of $4.74
In Stock Low Stock Contact Us Please See Attributes 0
Increase value Decrease value

  • Detail

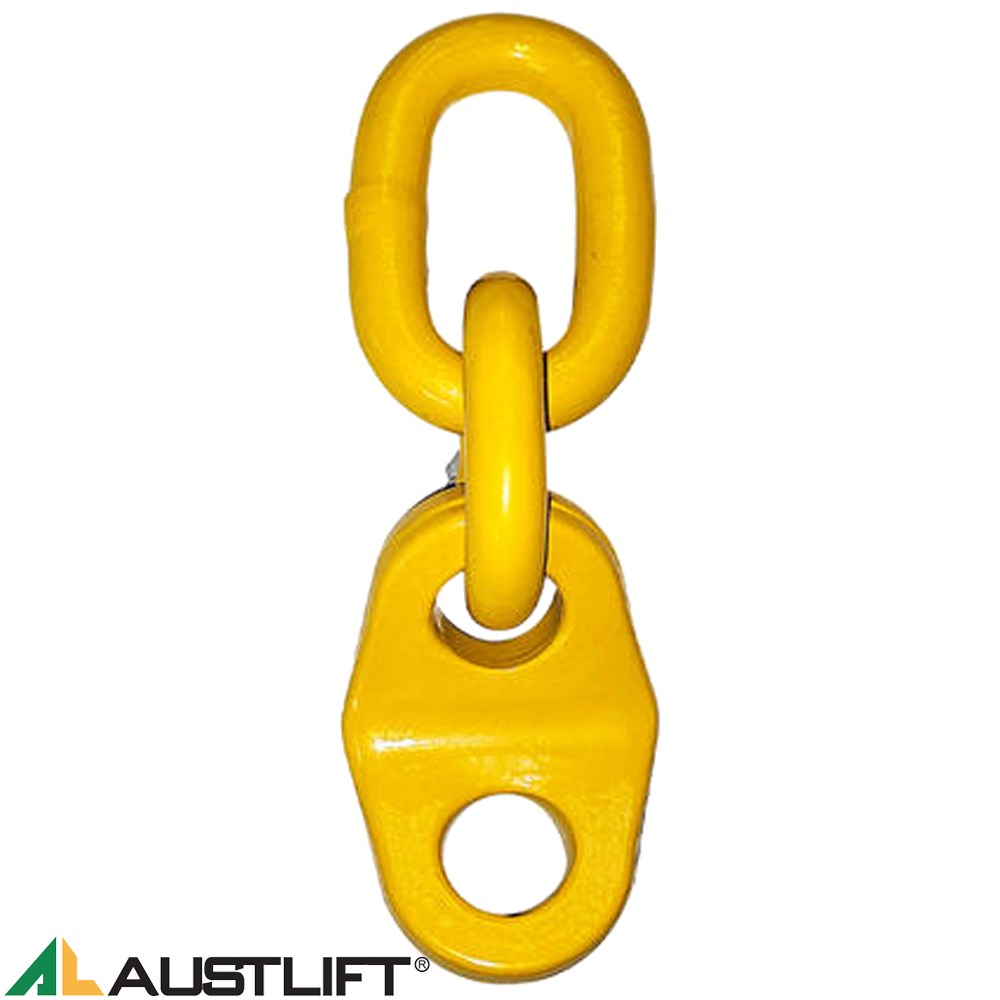

Austlift Gearbox/ Engine Lifting Bolt on Bracket

The Austlift Gearbox/Engine Lifting Bolt-on Bracket is a robust and versatile lifting solution, engineered for precision and safety. Constructed from low carbon alloy material, this bracket offers exceptional strength and durability. The design features a large eye size, accommodating a variety of lifting applications. Its unique link brackets require less clearance than standard eye bolts, facilitating quicker and easier placement and alignment.

The Austlift Bolt on Bracket is designed for use with engine load levellers and various lifting slings. Its angled brackets bolt directly to the component being lifted, making it ideal for engines, transmissions, swing gears, bearings, radiators, and more. The brackets are compatible with both Metric and Imperial diameter bolts, offering flexibility and ease of integration into different systems. For optimal performance and safety, use with grade 8.8 bolts or higher.

Features

  • Low carbon alloy for enhanced durability and strength.
  • Large eye size for versatile applications
  • Offer improved clearance and ease of use compared to standard eye bolts
  • Each bracket is clearly marked with product ID, grade, working load limit (WLL), and manufacturer ID for easy identification and safety assurance
  • Testing and Certification
  • Proof Testing: Each unit is proof tested at 2x the working load limit (WLL) as per AS3776 standards, ensuring reliability and safety.
  • Destructive Testing: Destructive tested at 4x the WLL to verify maximum load capacity.
  • Certification: Testing certificates are available upon request, providing documented assurance of the product's quality and performance.
Specifications

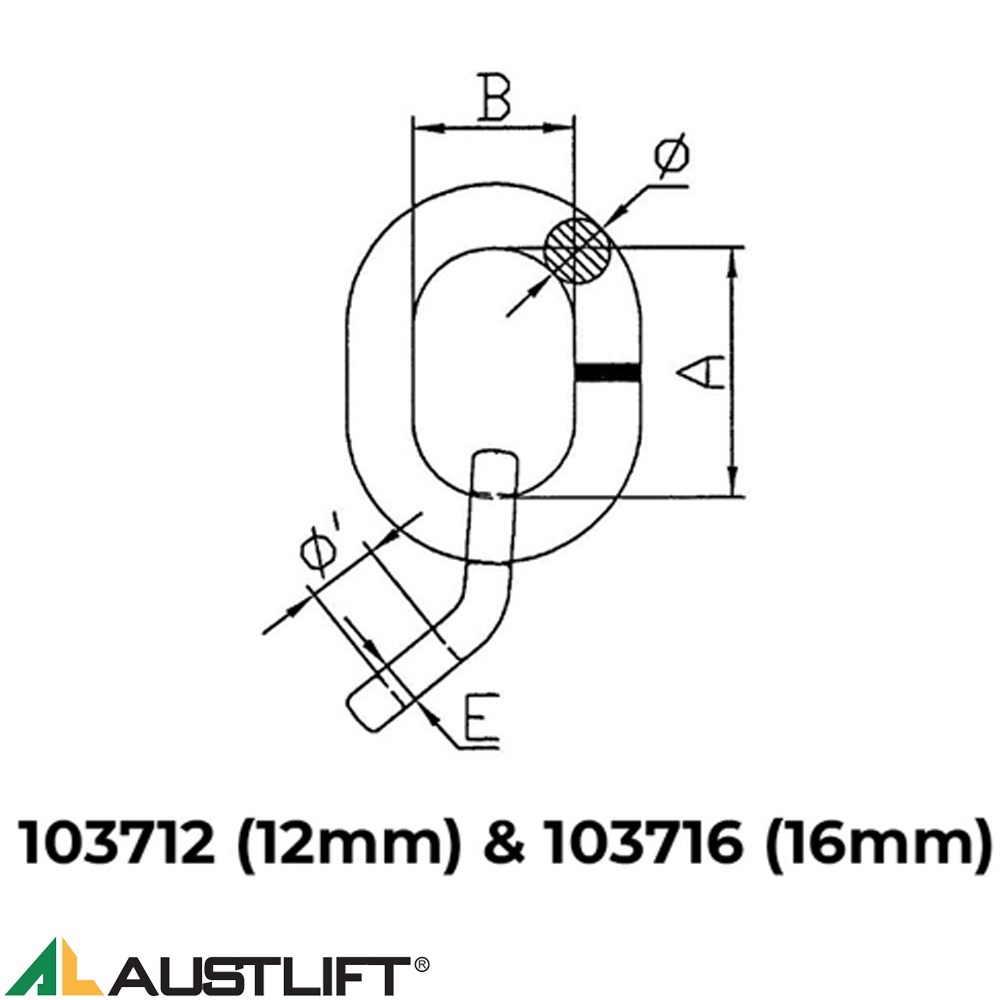

Size (mm) Code Weight (kg) WLL (T) BL (T) Dimensions(mm)
A B C φ φ'
12 103712 0.19 1.02 4.08 43 27 7.5 11 14
16 103716 0.223 1.818 7.27 43 27 8.5 11 17
