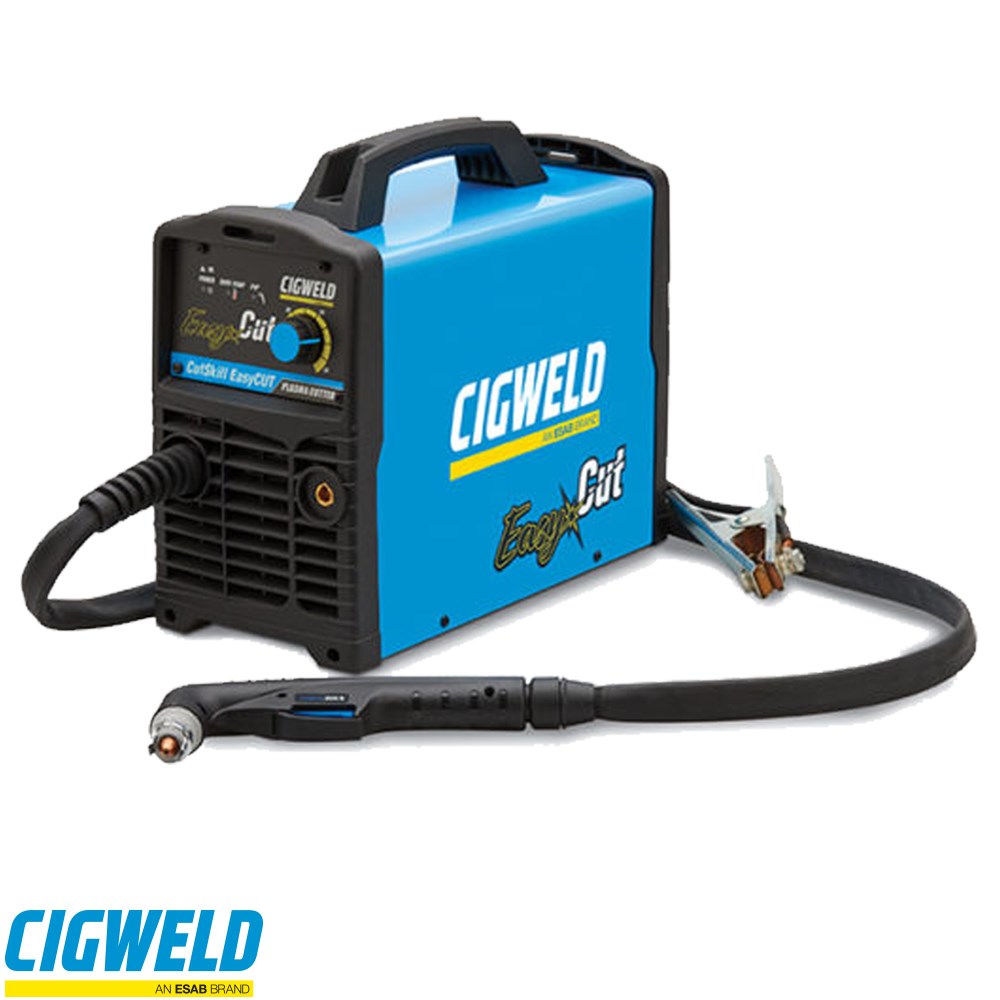

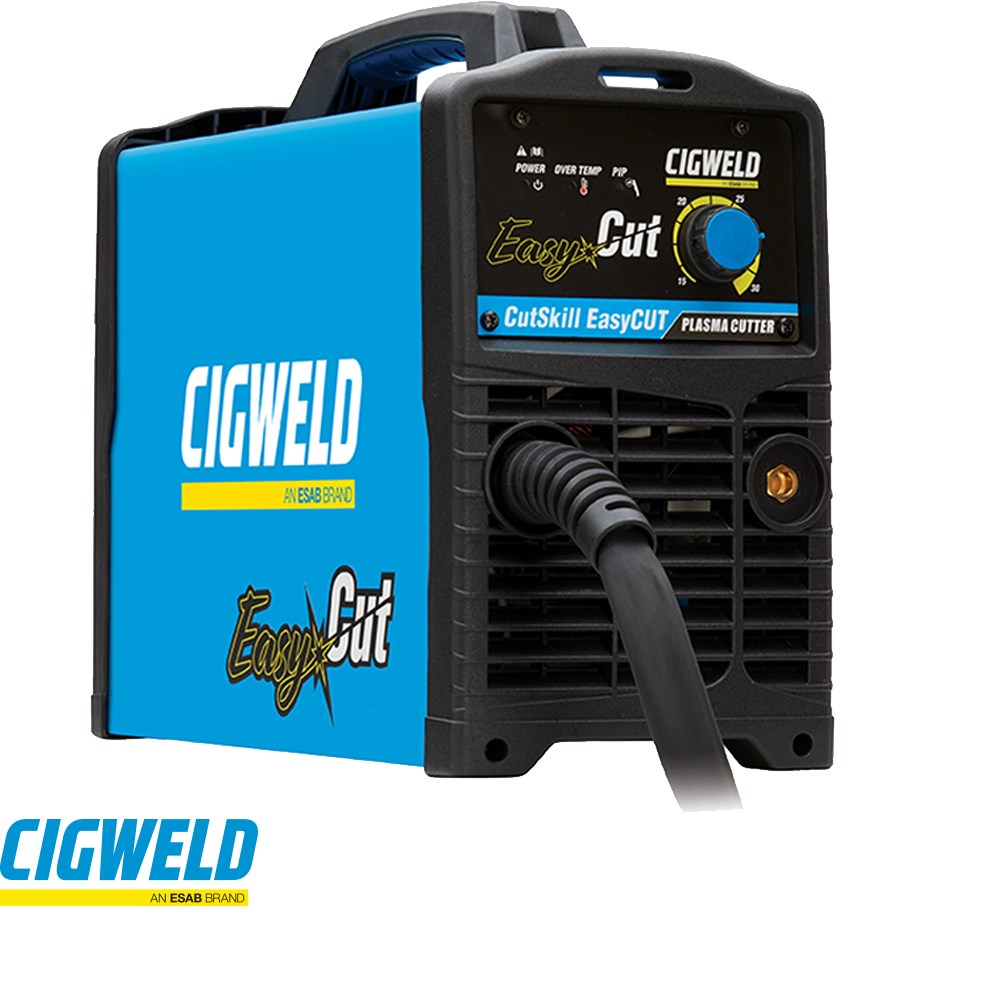

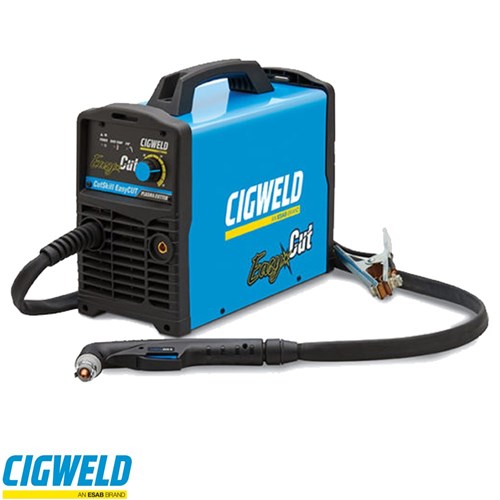

Cigweld Cutskill Easycut Plasma Cutter Package 10mm Genuine Cut

The Cigweld CutSkill EasyCut Plasma Cutter is a simple, no frills plasma cutter that is not only easy to use but is backed by serious power. Perfectly suited to the DIY cutting user, the EasyCut is still loaded with features – Parts In Place protection to protect your consumables and torch from arc damage, adjustable amperage to suit the plate thickness you’re trying to cut, and high grade consumables built for durability saving you time and money!


Features

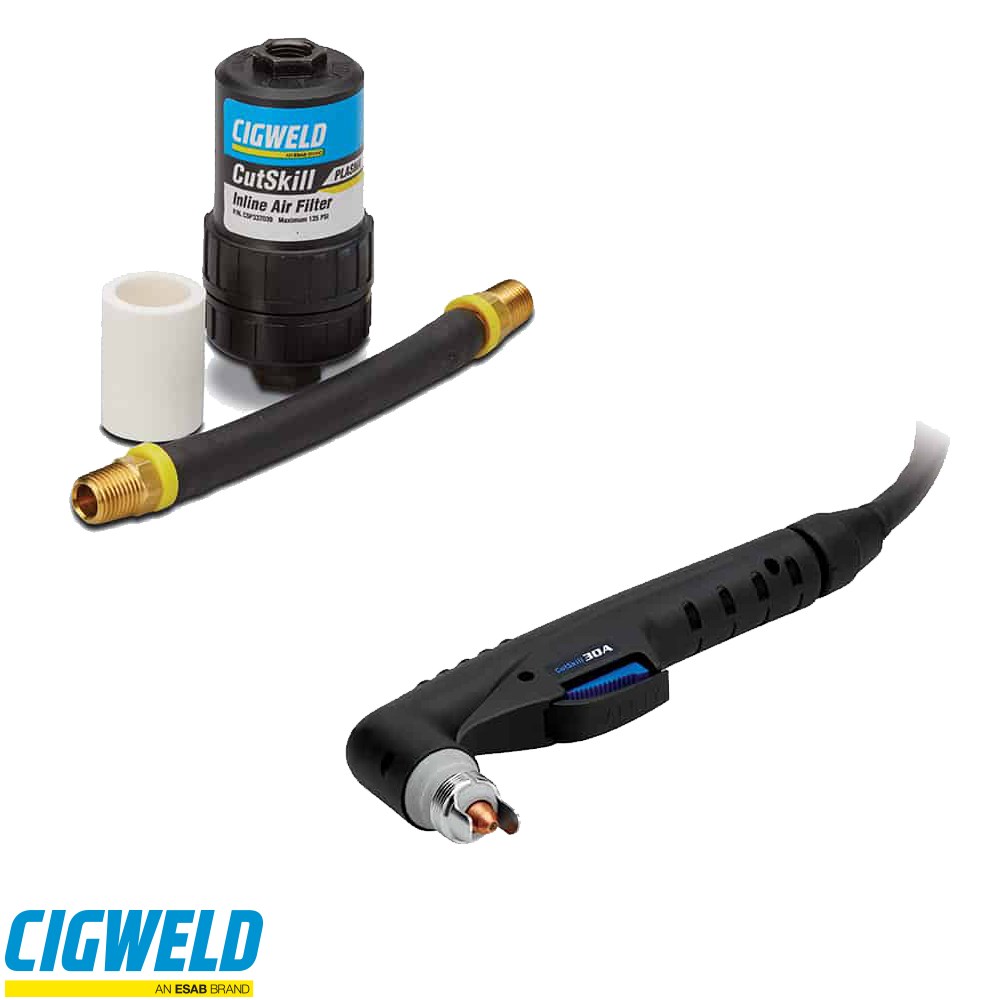

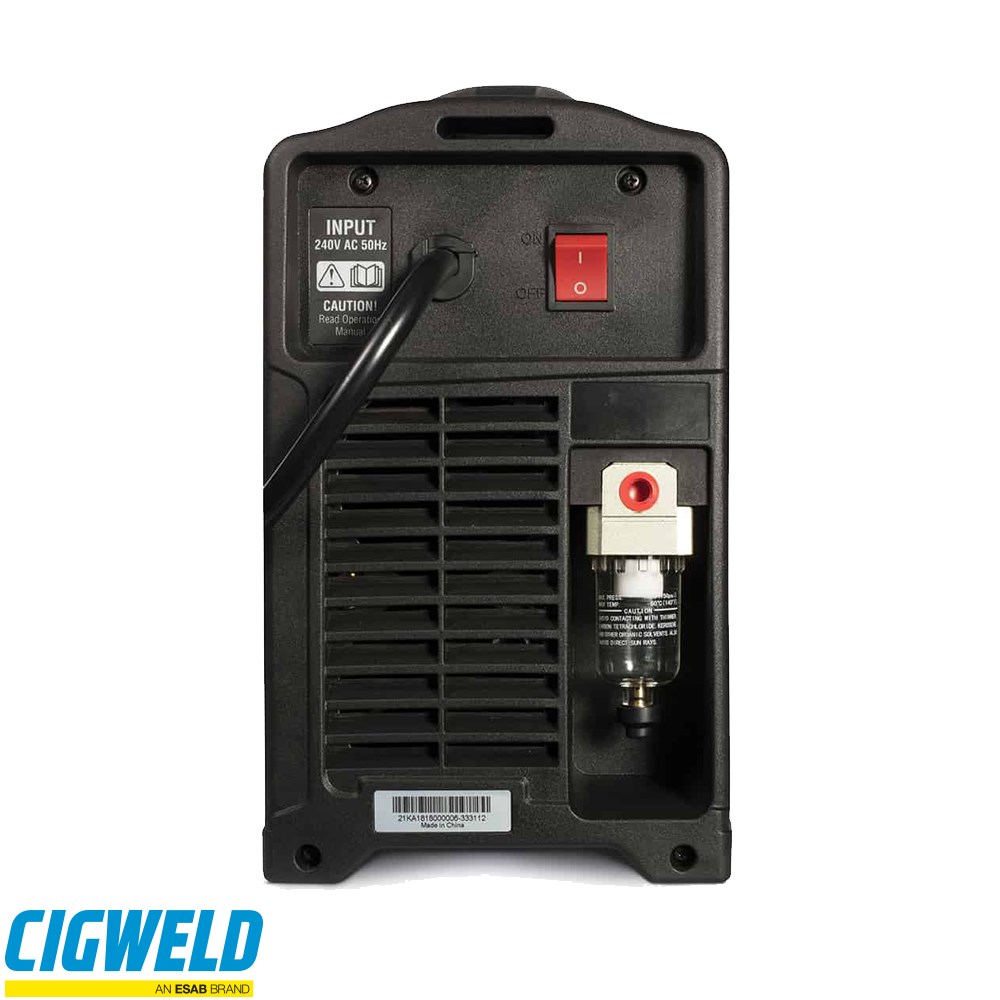

Removable air filter with purging valve
Moisture in your air compressor can reduce the lifespan of the Plasma Torch consumables. The CutSkill inbuilt air filter removes this problem. The air filter can be purged at any time by using the purging valve and is also removable for cleaning. It is housed in a concave inset in order to prevent damage.

Parts in place (PiP) protection
If the torch consumables are not correctly installed the torch will not arc, increasing the lifespan of the consumables and torch itself.

Internal regulator
The regulator is internal and air through the torch is managed automatically by the plasma unit. This removes the need to adjust air pressure for individual cutting requirements.

Torch
The EasyCut Plasma Cutter comes complete with a direct connected 30Amp torch with a 4m lead for greater reach, comfort and ergonomics designed specifically for the CutSkill plasma cutting range. The torch includes a safety latch in order to prevent risk of accidental arc.

Output Current
Current range for this Power Source is 15-30A. Provides DC Output.

Cutting
10mm Genuine Cut, Mild Steel, Aluminium & Stainless Steel. 12mm Severance Cut, Mild Steel. Aluminium & Stainless Steel. 8mm Pierce Cut.

Generator
Recommended generator required: 7.5kVA at 0.8 Power Factor.

Air Compressor
Recommended air compressor required: 800kPa, 5.3 CFM.

Warranty
1-Year Warranty on the power source.

Includes

• CutSkill EasyCut Plasma Power Source
• CutSkill 30A Plasma Torch
• Work Cable and Clamp
• Wrench for Air Filter
• 1 x 1⁄4” Nitto Air Line Connector
• Operating manual
