Electric Motors

ELECTRIC MOTOR 4P 2.2KW B3

FOOT MOUNT SINGLE PHASE IP55 240/480V

Product Code: 132022ME4
$686.40
EACH inc GST
Afterpay Logo
4 payments of $171.60
In Stock Low Stock Contact Us Please See Attributes 0
Increase value Decrease value

  • Detail
  • Downloads

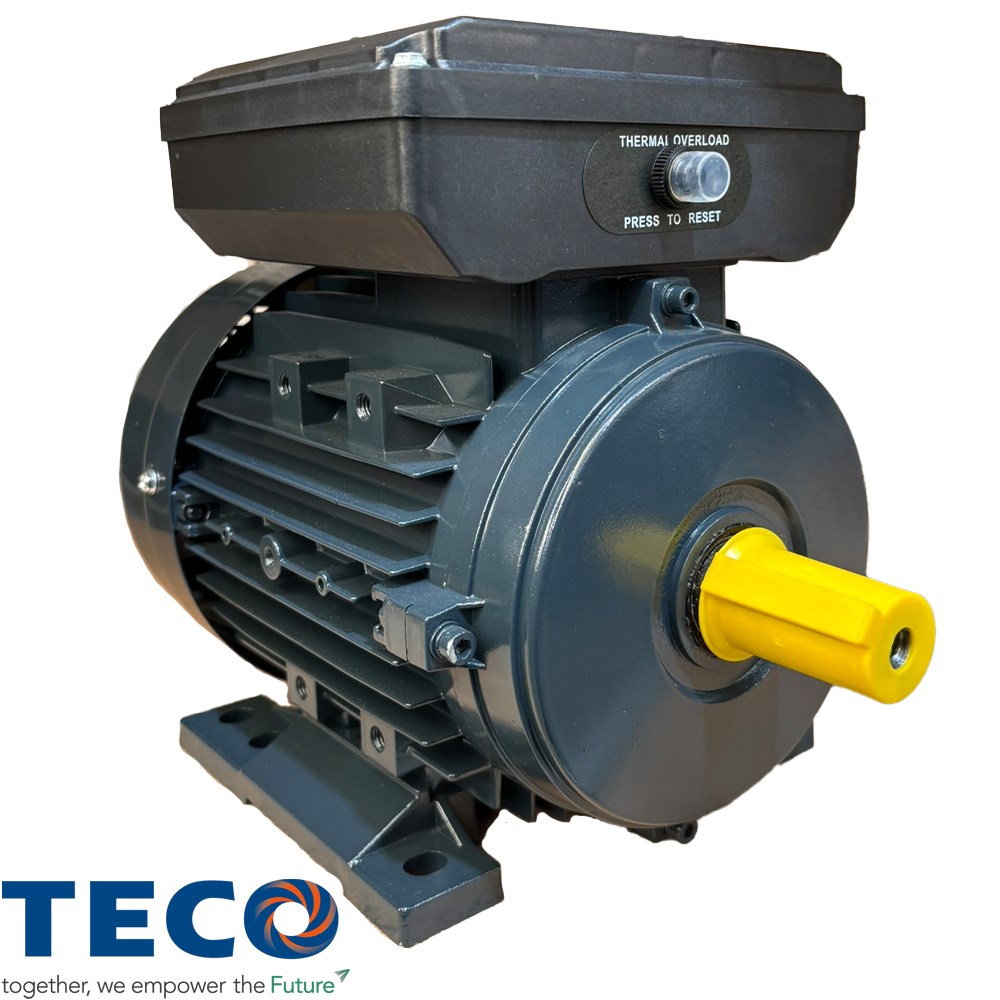

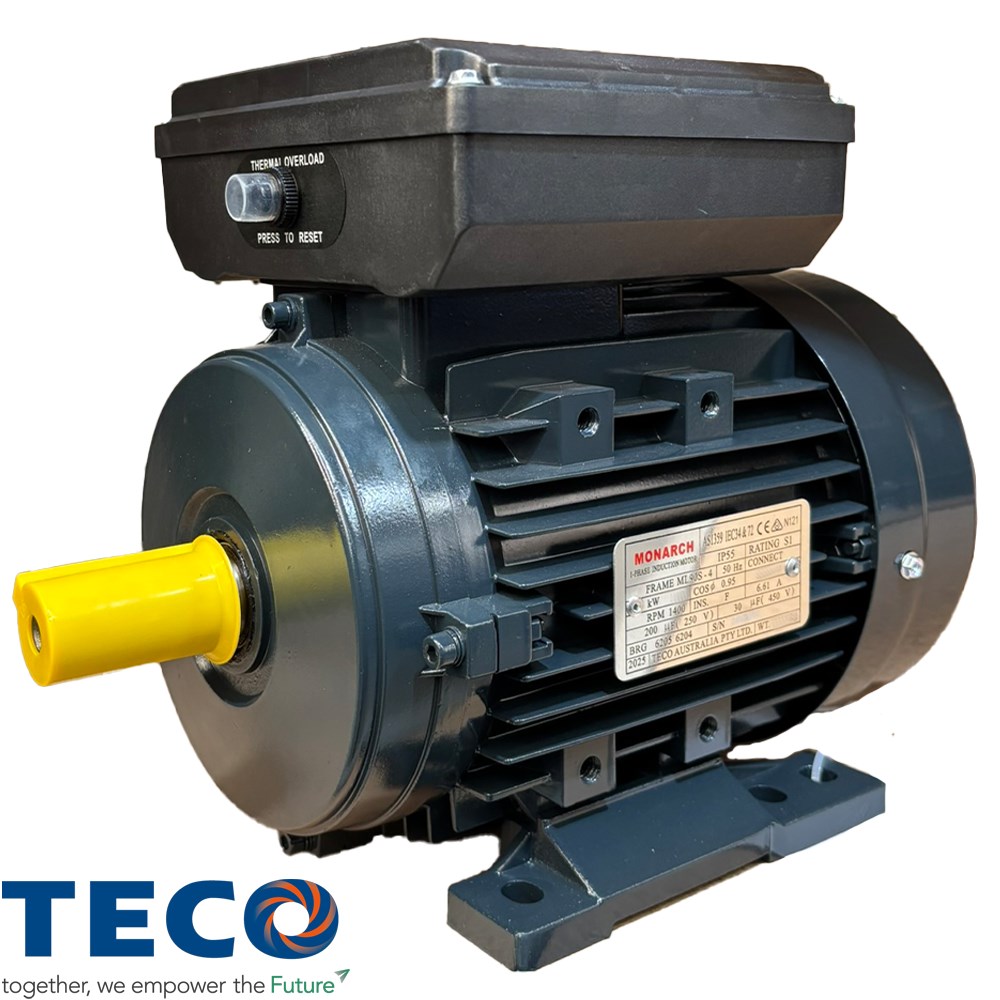

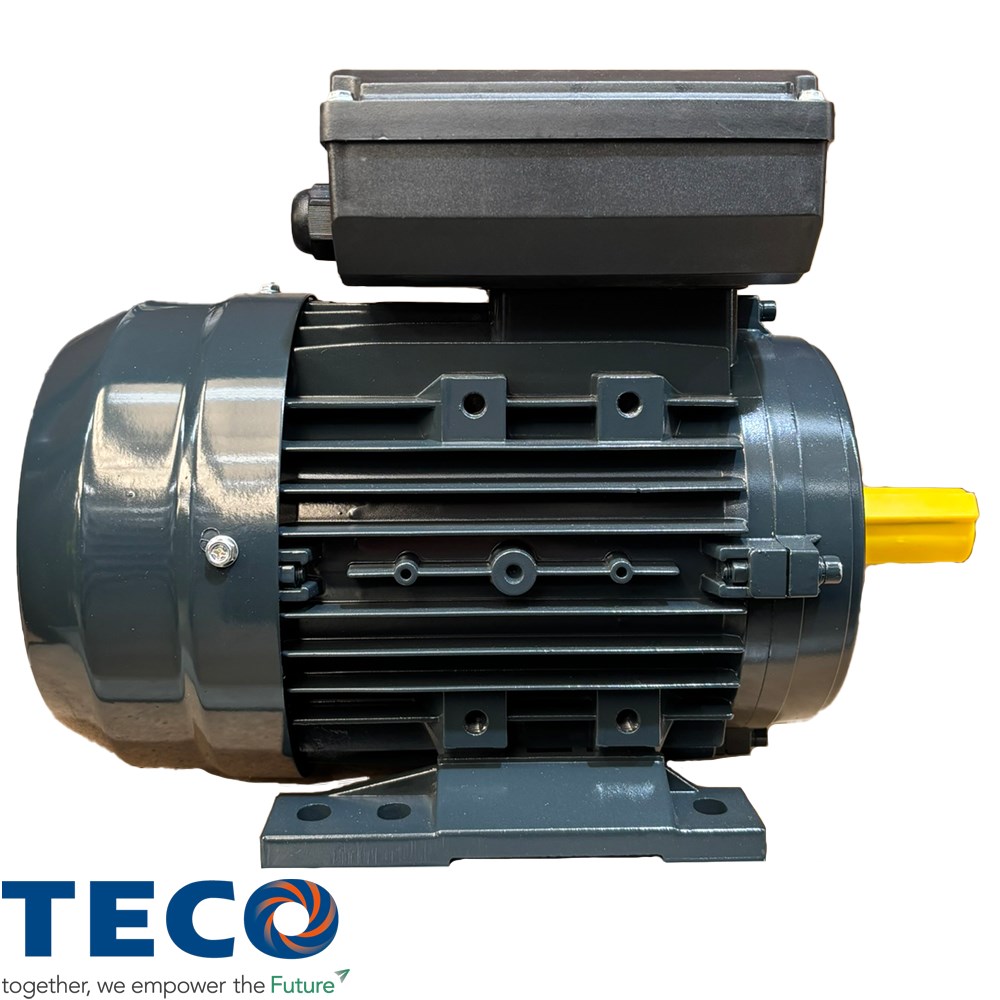

TECO Monarch Single Phase Electric Motor


4 Pole 2.2Kw Foot Mount

The TECO Monarch Single Phase Electric Motor series delivers dependable performance and long-lasting durability for a wide range of industrial and commercial applications. Built to IEC60034 standards and available in a power range from 0.18kW to 3kW, these versatile metric frame motors are designed to integrate seamlessly into existing equipment setups.

Each motor features a Totally Enclosed Fan Cooled (IC411) system for enhanced thermal management, along with Class F insulation and a Class B temperature rise for extended operating life under demanding conditions. The Capacitor Start, Capacitor Run design provides strong starting torque, while the S1 continuous duty rating ensures consistent performance for ongoing operations.

For larger power requirements, from 1.5kW and above, the motors are designed to run on either 240 Volts or 480 Volts in a Single Phase 50 Hz setup, providing versatility in power supply compatibility.

Housed in a robust alloy frame with IP55 protection and a top-mounted terminal box, the TECO Monarch motor is engineered for both convenience and resilience. With foot mounting for easy installation and a 1-year warranty for added peace of mind, this motor series is the ideal choice for reliable, efficient, and protected power delivery.

Features

  • Compliant with IEC60034 standards
  • Totally Enclosed Fan Cooled (IC411) design
  • Class F insulation with Class B temperature rise
  • Capacitor Start, Capacitor Run for strong starting torque
  • S1 continuous duty rating
  • Operates on 240V or 480V Single Phase
  • Alloy frame with top-mounted terminal box
  • IP55 protection against dust and water
  • Foot mounting for easy installation

Specifications

  • Power Output Range: 2.2kW
  • Voltage Supply: 240V or 480V Single Phase 50Hz
  • No. of Poles: 4
  • Frame: D100L
  • Speed: 1400 RPM (Full load)
  • Cooling Method: IC411 (Totally Enclosed Fan Cooled)
  • Enclosure Protection Rating: IP55 (Dust protected and protected against water jets)
  • Frame Material: Aluminium Alloy
  • Mounting Type: Foot Mount (B3)
  • Terminal Box Position: Top-mounted
  • Weight of Motor: 23kg
  • Warranty: 1 Year
