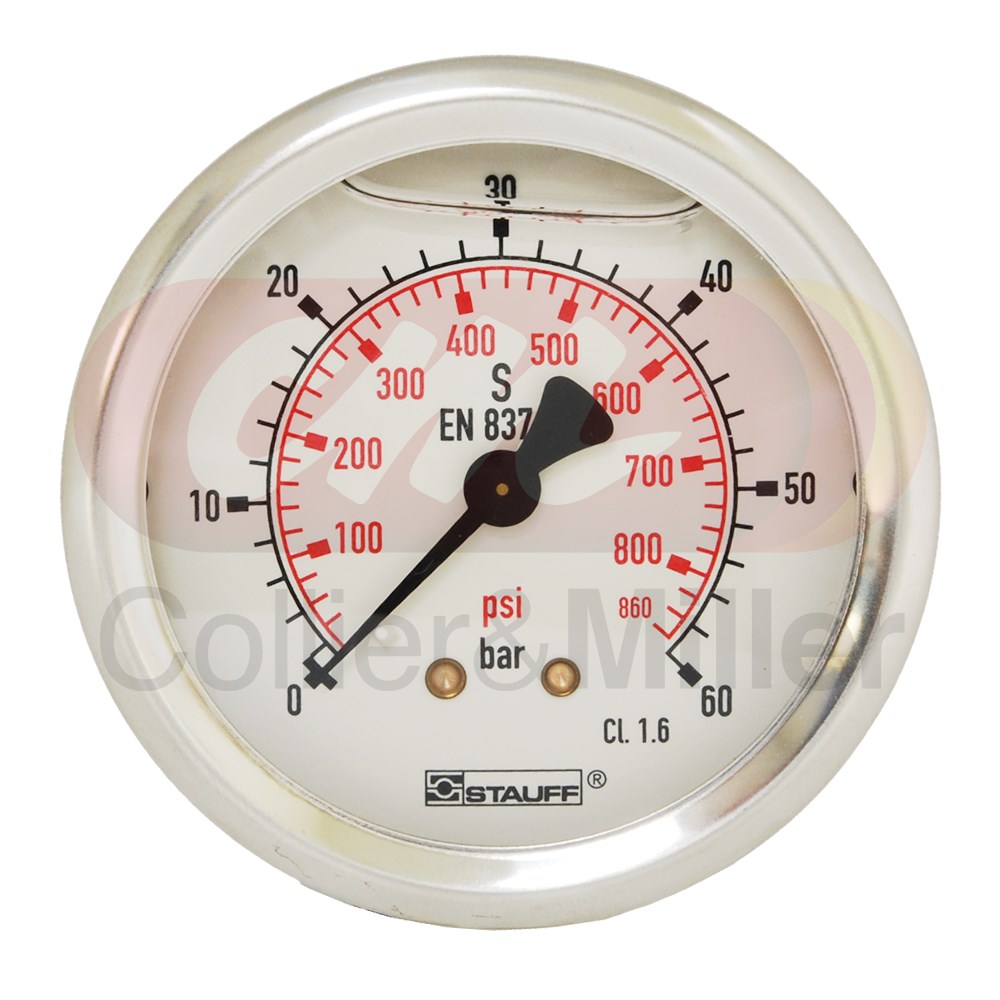

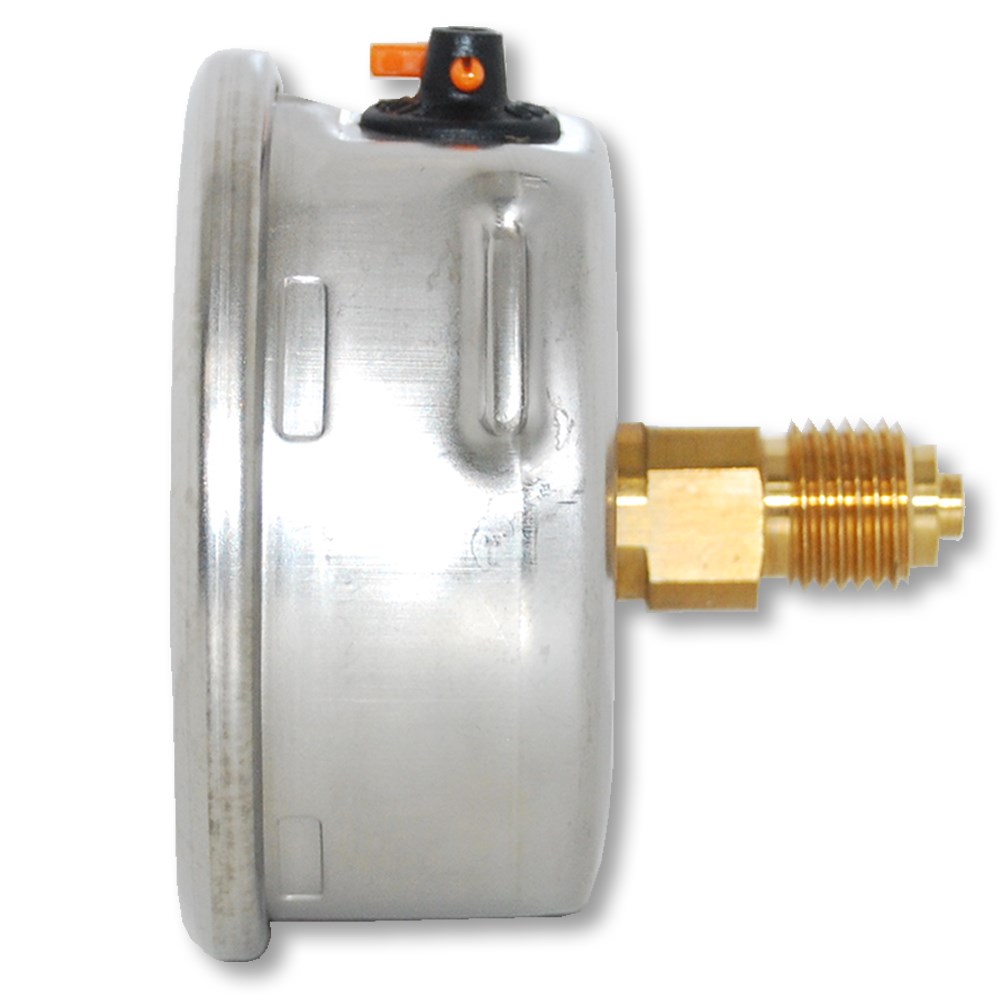

C&M stock a range of glycerine filled Stauff diagnostic pressure gauges suitable for oil-hydraulic and gaseous media which do not corrode copper alloys. Supplied in european standard dual scale (Bar/Psi) with a stainless steel housing, acrylic clear face and process connection for BSP (G1/4 for 63mm and G1/2 for 100mm).
Applications
- Mechanical pressure measurement for diagnostic systems
- Media that is compatible with copper alloy parts
Features
- Suitable for hydraulic oil and gaseous media compatible with copper based alloys
- Stainless Steel (1.4301) housing
- Acrylic sight glass
- Glycerine filled
- European dual scales with pressure indication in (Bar outside) and (PSI inside)
Brands
- We supply Stauff Guages as our first choice, however we may substitute if product is unavailable.
- If Stauff is your preffered brand please contact us to ensure we send you the item you specify.
Order Code
- SPG - 063 - 00060 - 01 - P - B04
|
| Option |
Order Code |
Specification |
| Series & Type |
SPG |
Stainless Steel Pressure Guage |
| Size |
063 |
63mm |
| Pressure Range |
00060 |
0 ... 60 bar / 0 ... 870 PSI |
| Style of scale |
01 |
bar / PSI (bar outside/PSI inside - standard option Europe) |
| Adaption |
P |
Panel Mount |
| Process Connection |
B04 |
G1/4 (only SPG-063) |
