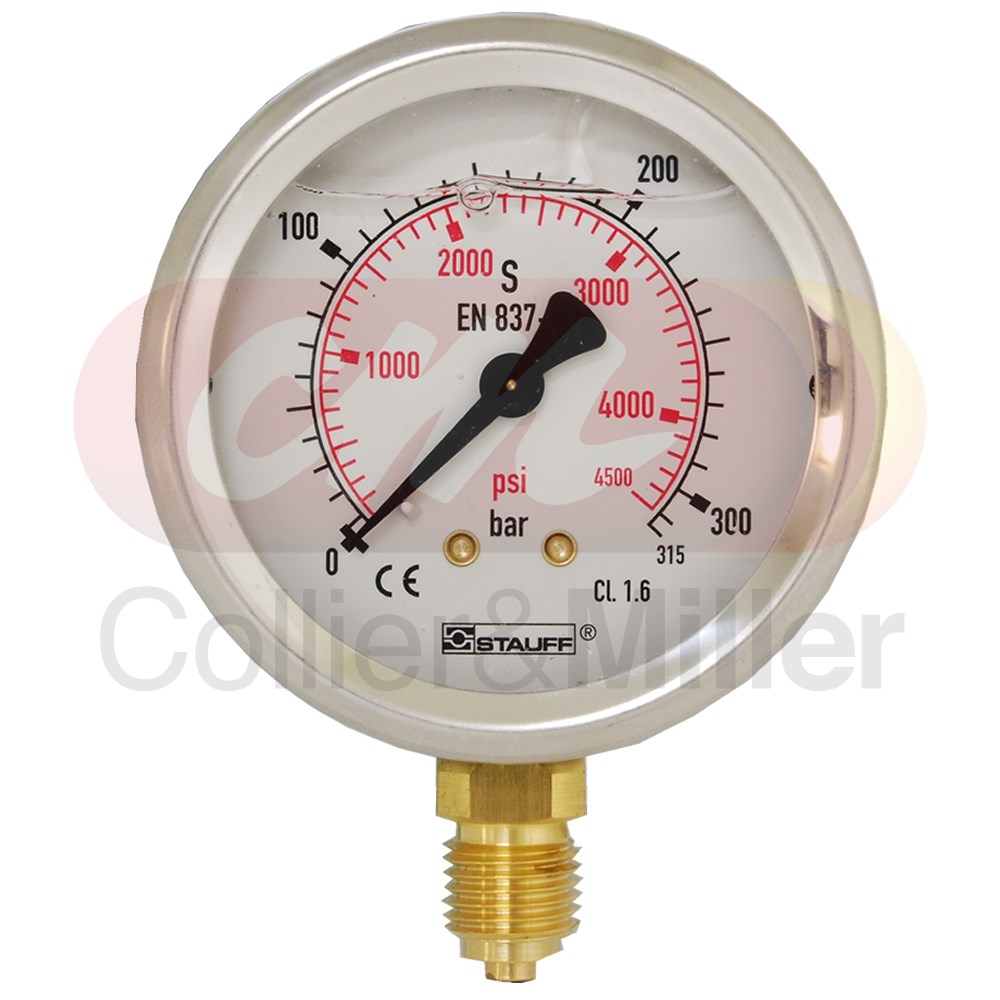

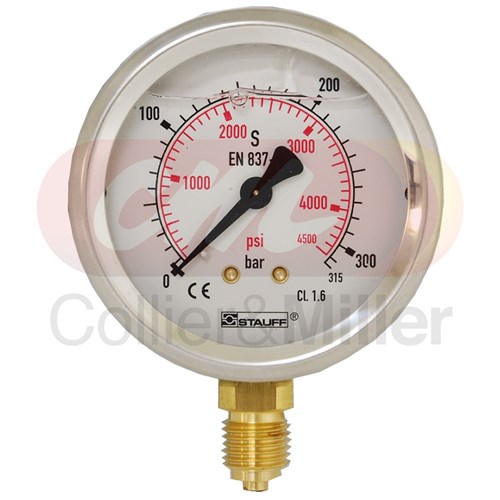

C&M stock a range of glycerine filled Stauff diagnostic pressure gauges suitable for oil-hydraulic and gaseous media which do not corrode copper alloys.
Supplied in dual scale (PSI/Bar) with a stainless steel housing, acrylic clear face and process connection for BSP (G1/4 for 63mm and G1/2 for 100mm).
Applications
- Mechanical pressure measurement for diagnostic systems
- Media that is compatible with copper alloy parts
Features
- Suitable for hydraulic oil and gaseous media compatible with copper based alloys
- Stainless Steel (1.4301) housing
- Acrylic sight glass
- Glycerine filled
- European dual scales with pressure indication in (Bar outside) and (PSI inside)
Brands
- We supply Stauff Guages as our first choice, however we may substitute if product is unavailable.
- If Stauff is your preffered brand please contact us to ensure we send you the item you specify.
| Specification |
Value |
| Case Size |
63mm |
| Case Material |
Stainless Steel |
| Wetted Parts |
Copper Alloy |
| Scale |
European dual scale (Bar outside) and (PSI inside) |
| Adaption |
Stem Mount |
| Thread form (process connection) |
G1/4 Male |
