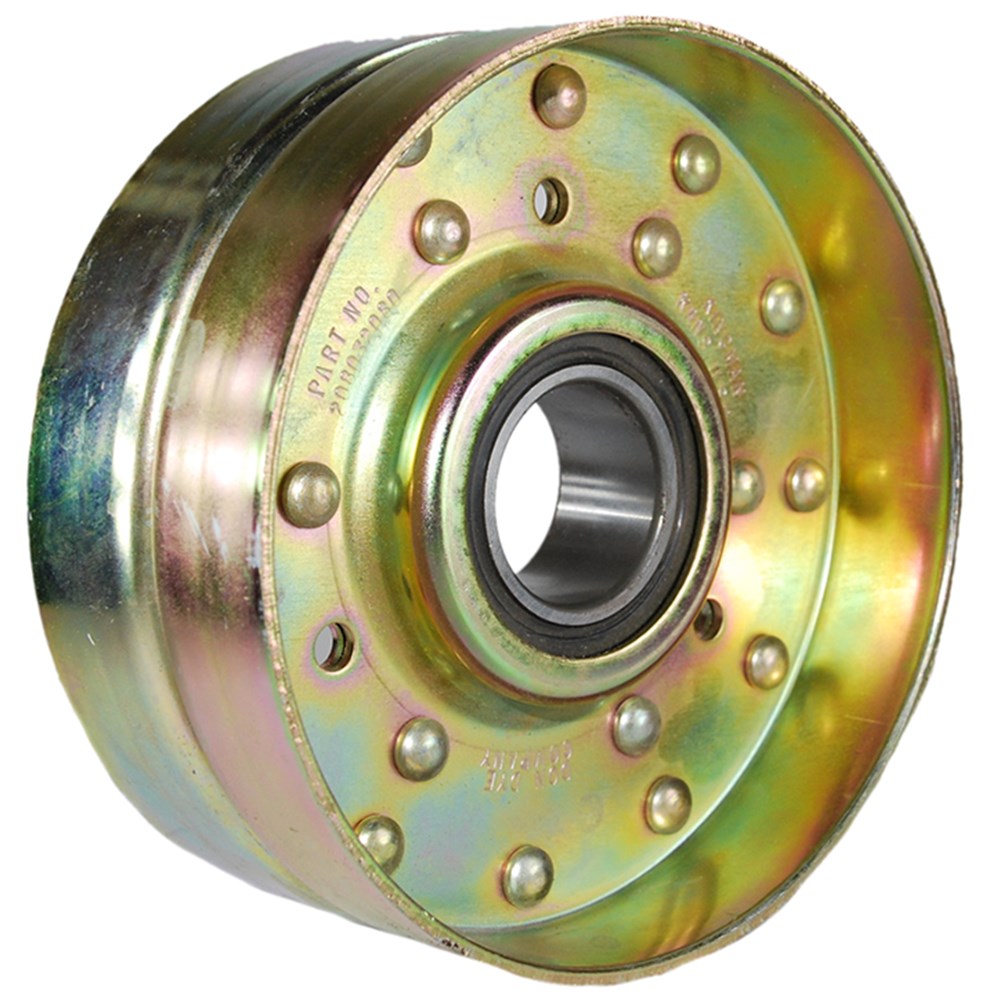

Don Dye pressed steel pulleys are designed to make a complete, economical, self contained unit for either flat or "V" side of belt. They are furnished with a single-row, radial-type, highest quality precision ground, pre-lubricated ball bearing (made of 52100 bearing steel) with contact-type seals to insure positive retention of lubricant and full protection against dirt, dust or foreign matter. These bearings contain a 60% fill of high temperature grease, no re-lubrication required.
Features
- Accurately bore sized for easy, quick mounting on standard 1/2” or 5/8” bolts (1/2” bore removable sleeve std. in all pulleys) 3/8” sleeve is available if requested.
- Pulleys are riveted for strength and durability- No spot welding is used.
- Feature smoothly rolled out edges which eliminate belt chafing and scuffing
- “Weep Holes” on the rivet circle allow water drainage when the pulley is mounted in a horizontal position.
- Zinc Plated

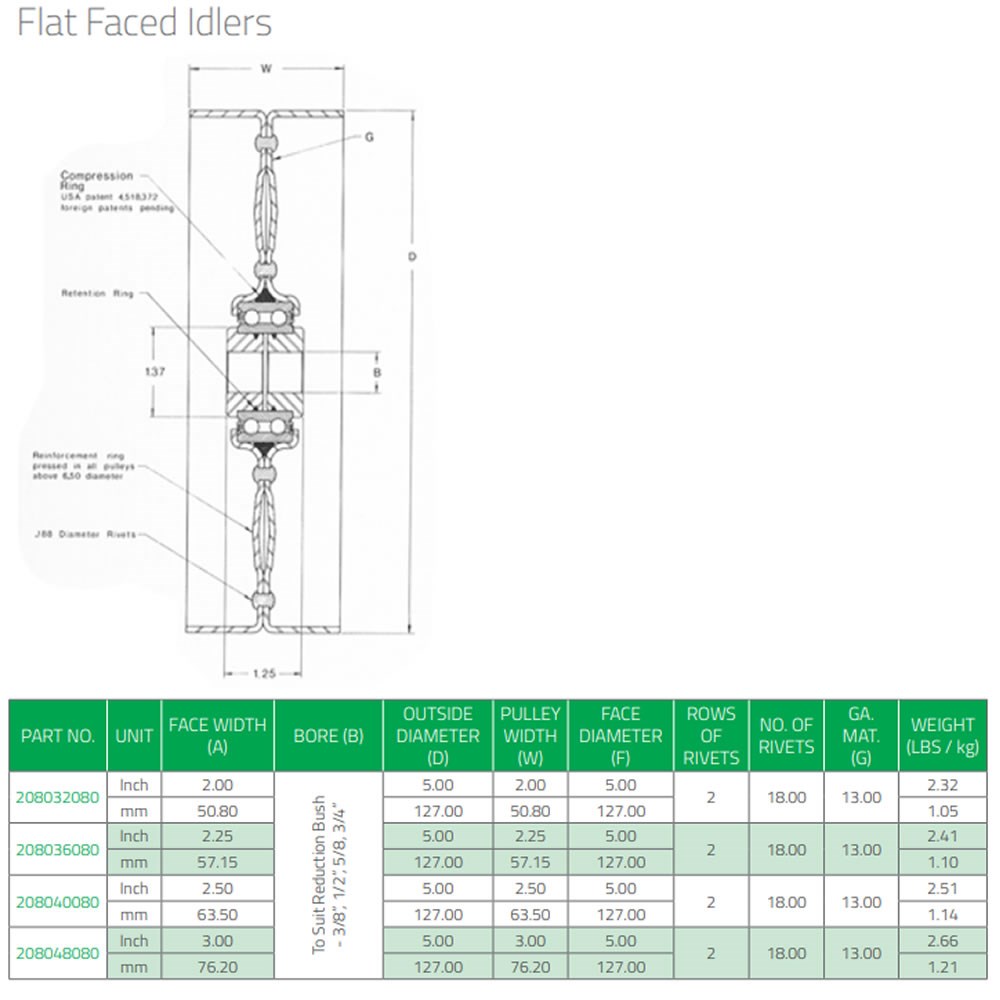

Details
| Specification |
Dimension/Type |
| Bearing Type |
Double Row to Suit insert bush |
| Face OD |
5.00: |
| Face Width |
2.00" |
| Overall OD |
5.00" |
