HYD DOUBLE ACTING SEAL 3.000
(3.000 X 2.625 X .437 X .150) TYPE 065
Product Code: 2224210
$63.45
EACH inc GST
In Stock
Low Stock
Contact Us
Please See Attributes
3
Increase value
Decrease value

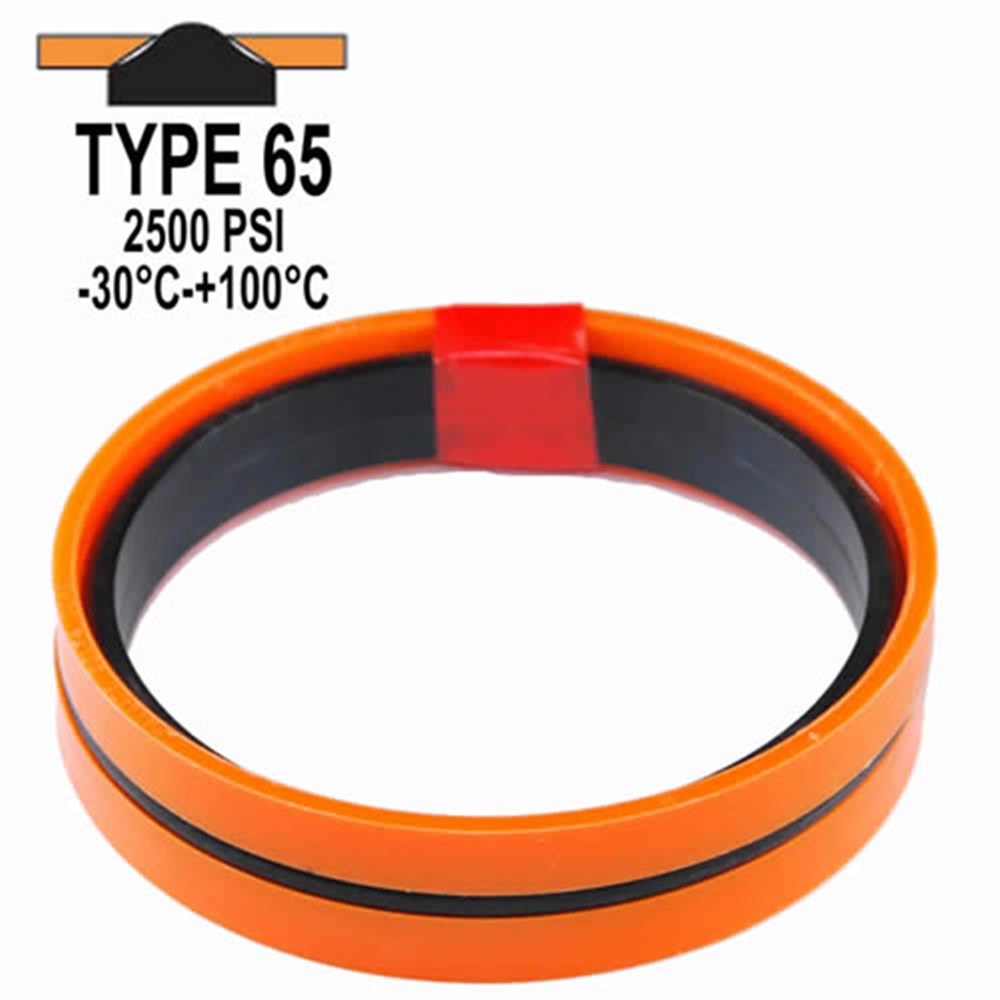

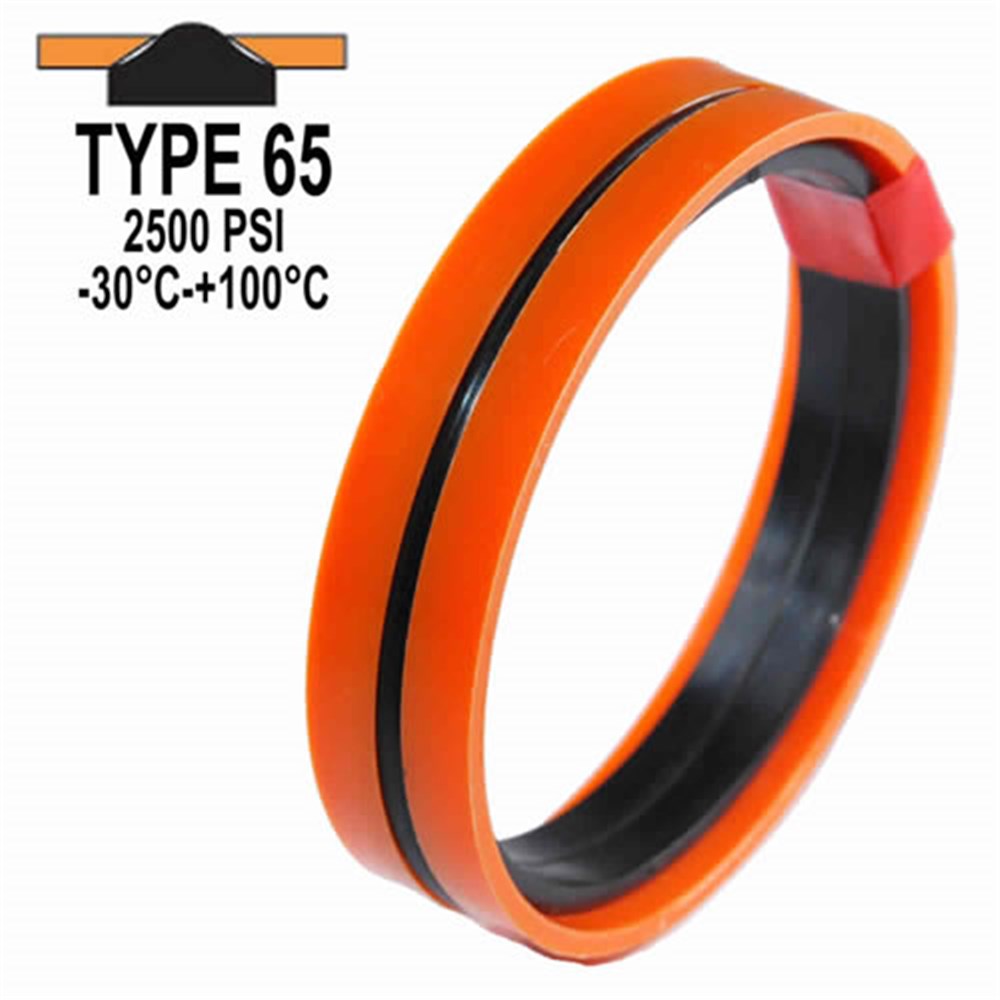

Ideal for light duty one piece piston applications, the Hallite 65 double acting seal is a simple, effective and economical design for pressures up to 160 bar/2500 PSi. its compact dimensions enable the length of the piston to a minimum. It is an assembly of a continuous rubber seal and two scarf cut bearings. The nitrile rubber seal is designed to be pre-loaded by the housing to ensure an effective seal at low pressure. The outward thrust of the rubber seal on the bearings as it reacts to increasing pressure prevents any extrusion damage in the sealing area. The polyacetal bearings are proportioned to support the piston and its side load.
