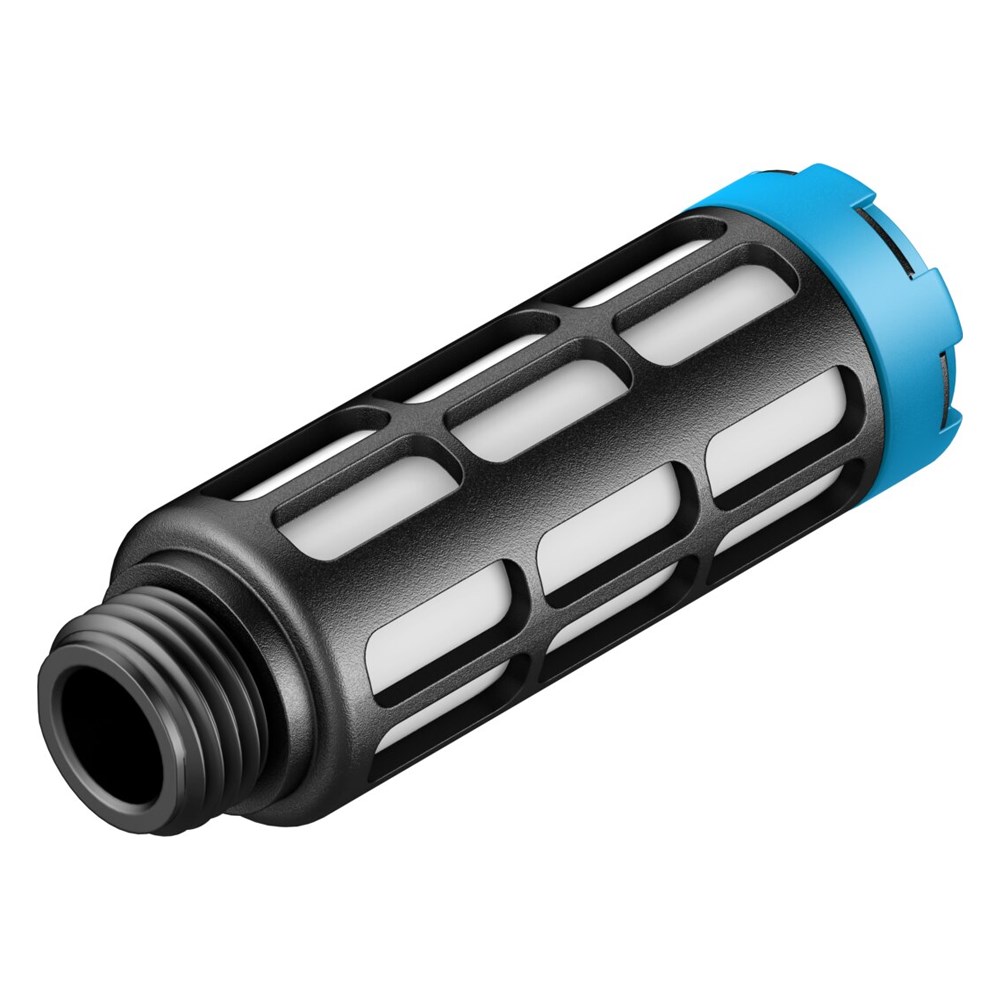

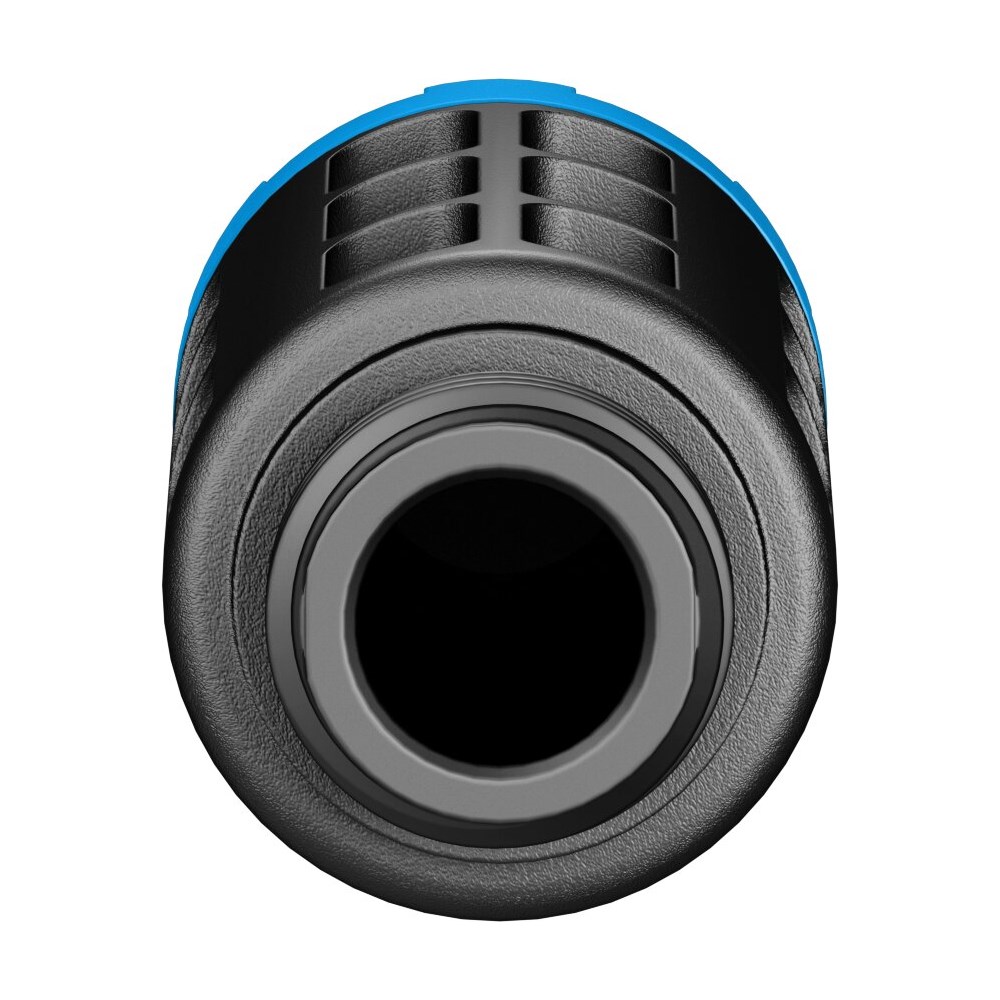

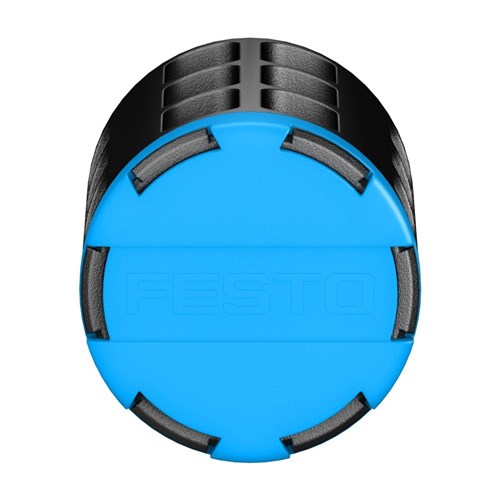

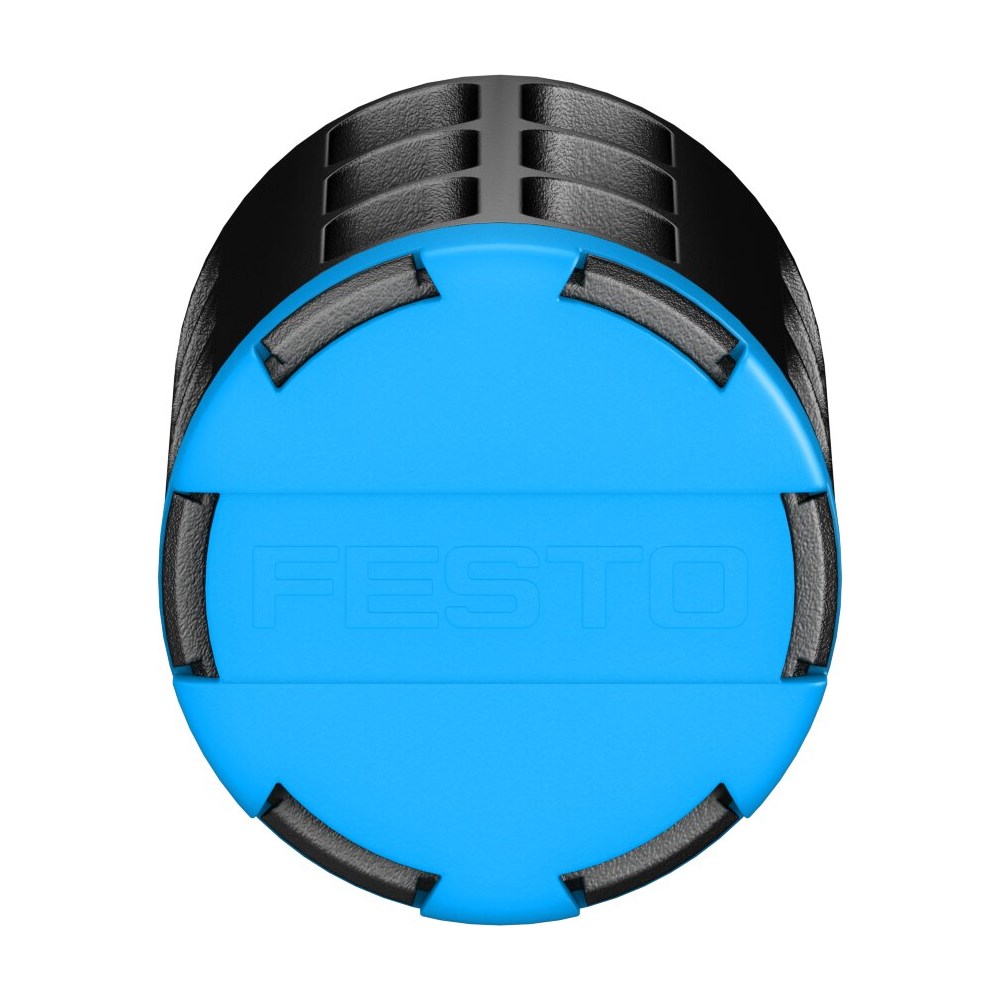

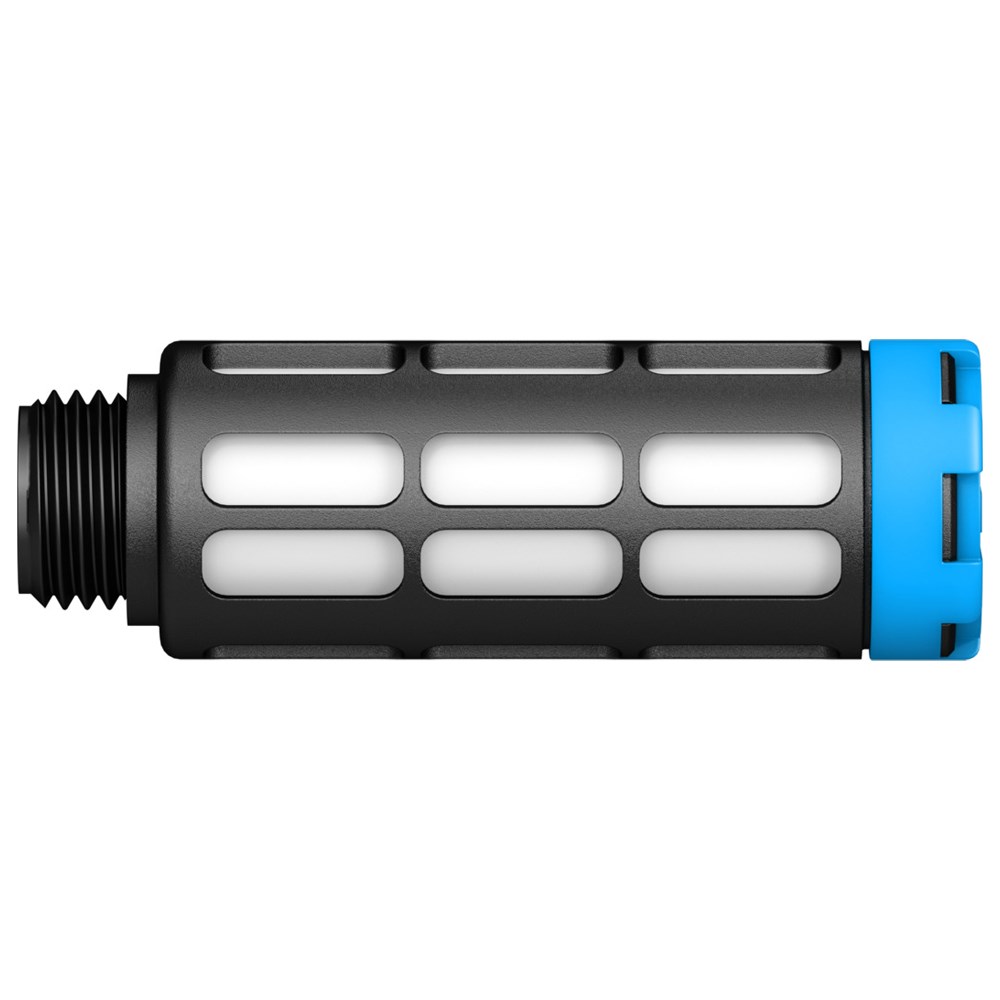

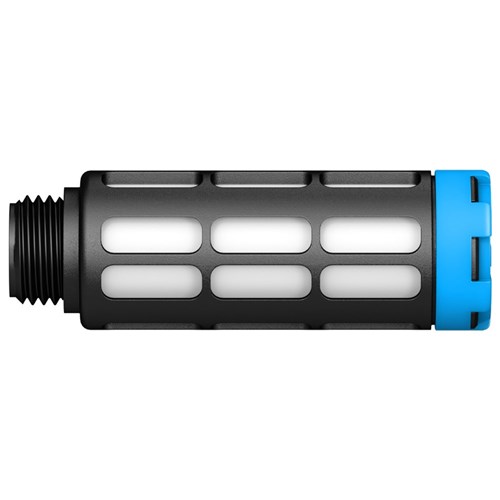

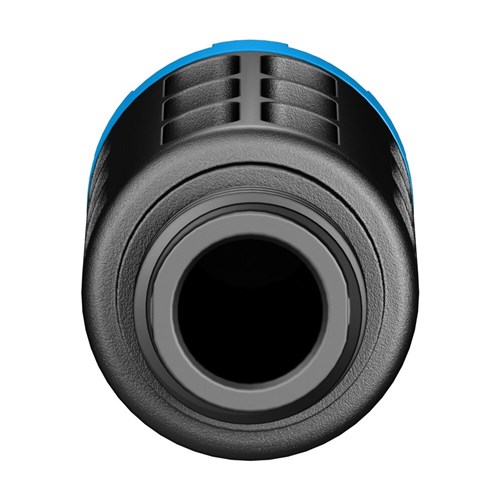

FESTO Pneumatic Silencer 1/4" – U Series U-1/4
The FESTO U Series Pneumatic Silencer delivers effective noise reduction and high airflow efficiency for pneumatic exhaust systems. Built for durability and flexibility, it ensures quiet and reliable performance in a compact, lightweight design.
Features
- Compact 1/4" silencer for efficient noise control
- Sound pressure level of 76 dB(A)
- Mounting position optional for flexible installation
- Suitable for lubricated or non-lubricated compressed air
- LABS (PWIS) compliant to VDMA24364-B1/B2-L
- Constructed from RoHS-compliant materials
Specifications
- Operating pressure 0–10 bar (0–1 MPa)
- Flow rate to atmosphere 3300 l/min
- Ambient temperature -10°C to 70°C
- Pneumatic connection G1/4
- Material PE shock absorber insert
- Product weight 7.7 g
- Sound pressure 76 dB(A)
