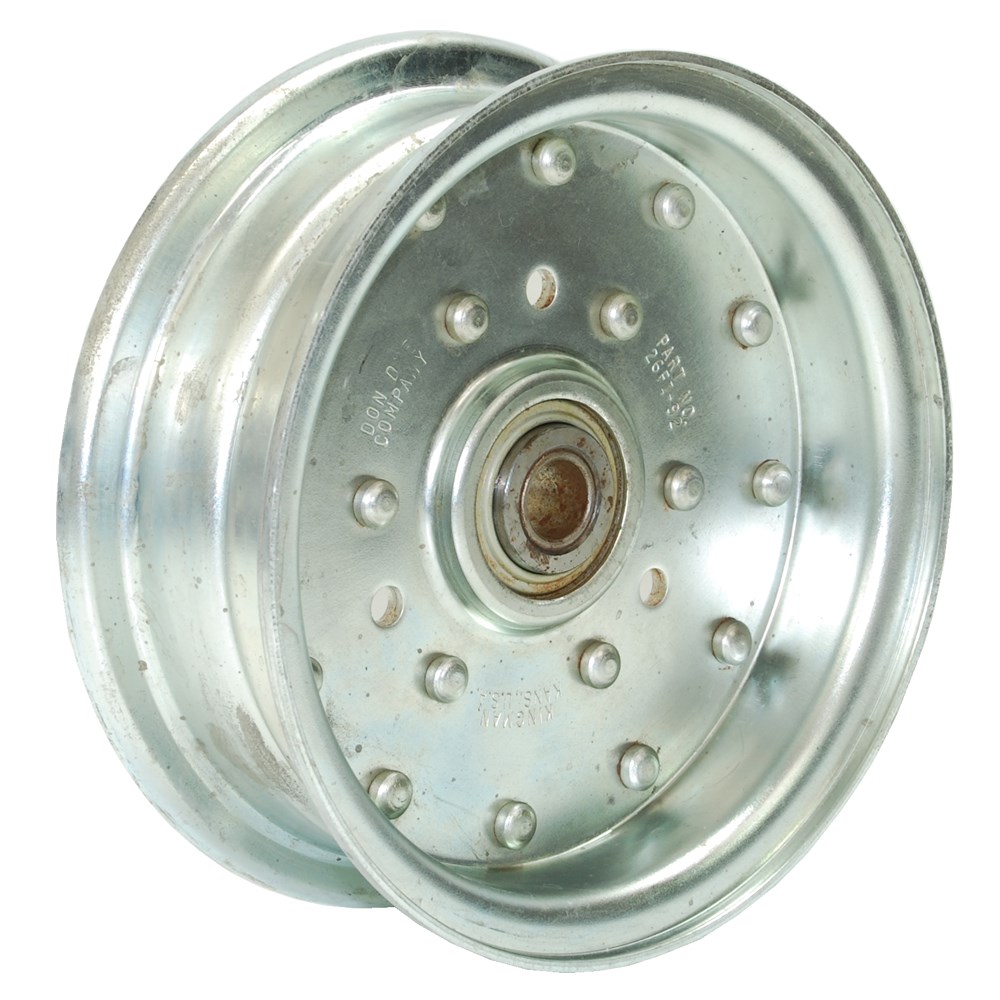

Don Dye pressed steel pulleys are designed to make a complete, economical, self contained unit for either flat or "V" side of belt. They are furnished with a single-row, radial-type, highest quality precision ground, pre-lubricated ball bearing (made of 52100 bearing steel) with contact-type seals to insure positive retention of lubricant and full protection against dirt, dust or foreign matter. These bearings contain a 60% fill of high temperature grease, no re-lubrication required.
Specifications
Don Dye No. |
Face Width |
Bore |
Outside Dia |
Pulley Width |
Face Dia |
26FI-92 |
1.62" |
.635" |
5.75" |
2.06" |
5.00" |
|
41.14mm |
16.13mm |
146.05mm |
52.39mm |
127mm |
