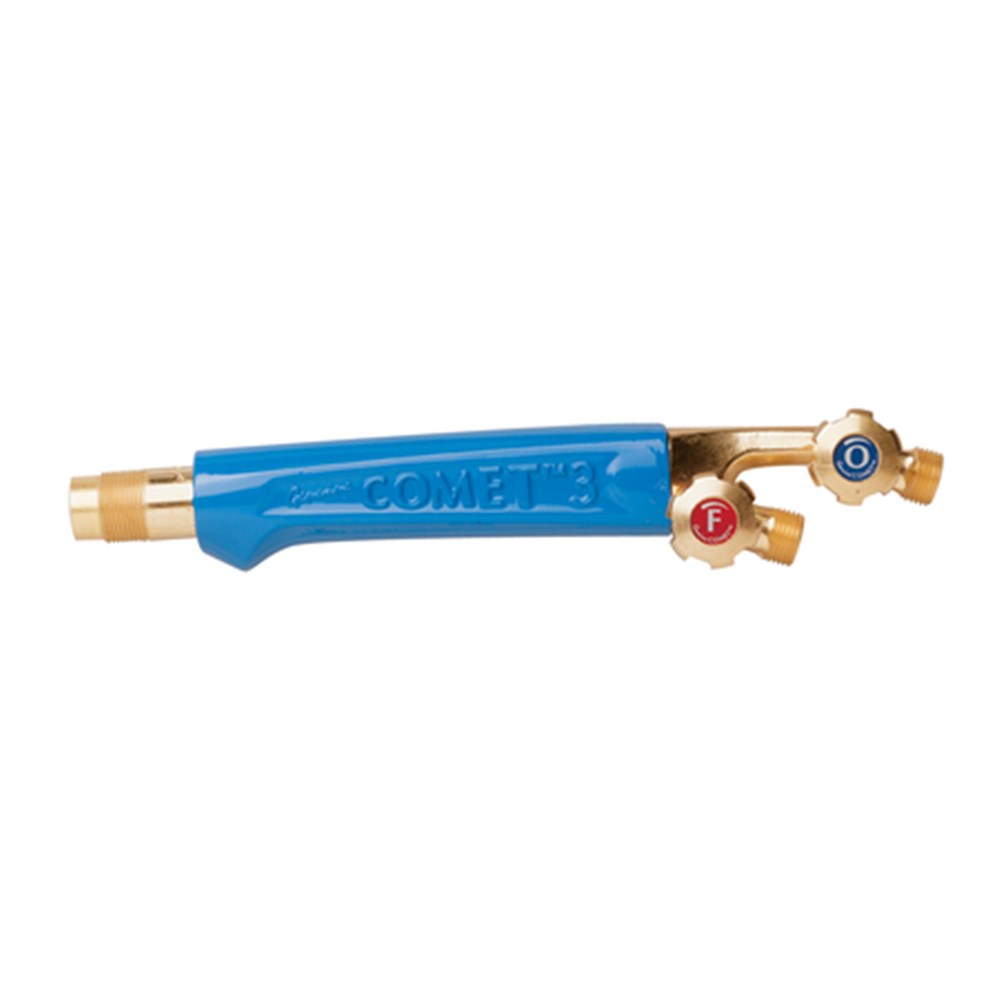

Cigweld COMET 3 Blowpipe

The COMET 3 blowpipe, when used with appropriate attachments, is suitable for fusion welding, braze welding, brazing, soldering, heating, hand cutting, sheet metal cutting, rivet cutting, powder facing and flame cleaning.

Features

• Two-stage valve gives precise gas control from the smallest welding tip to the largest heating tip
• Permits fine sensitive control for delicate welding jobs and easy lighting up, to flows of up to 600 l/min for the heaviest heating job
• A non-rotating valve spindle drastically minimises wear
• Due to O-ring seals, only hand tightening is required to connect the mixer or cutting attachment to the handle
• Locking teeth secure re-positioning with hand tightening
• Handle shape gives a comfortable positive grip
• Left-hand/right-hand threads prevent incorrect hose connection
• Colour coded control knobs are fitted for maximum safety and ease of operation, even when wearing gloves

Specifications

• Blowpipe: COMET 3
• Extension Barrel: 307123, 307124, 307125
• Gas Consumption (Fuel): 41-55 l/min
• Gas Consumption (Oxy): 45-58 l/min
• Heat Output: 180 MJ/HR
• Mixer: 304003
• Model Number: SHA1
• Operating Pressure (Fuel): 100 kPa
• Operating Pressure (Oxy): 150 kPa
• Tip Size: 8x12
