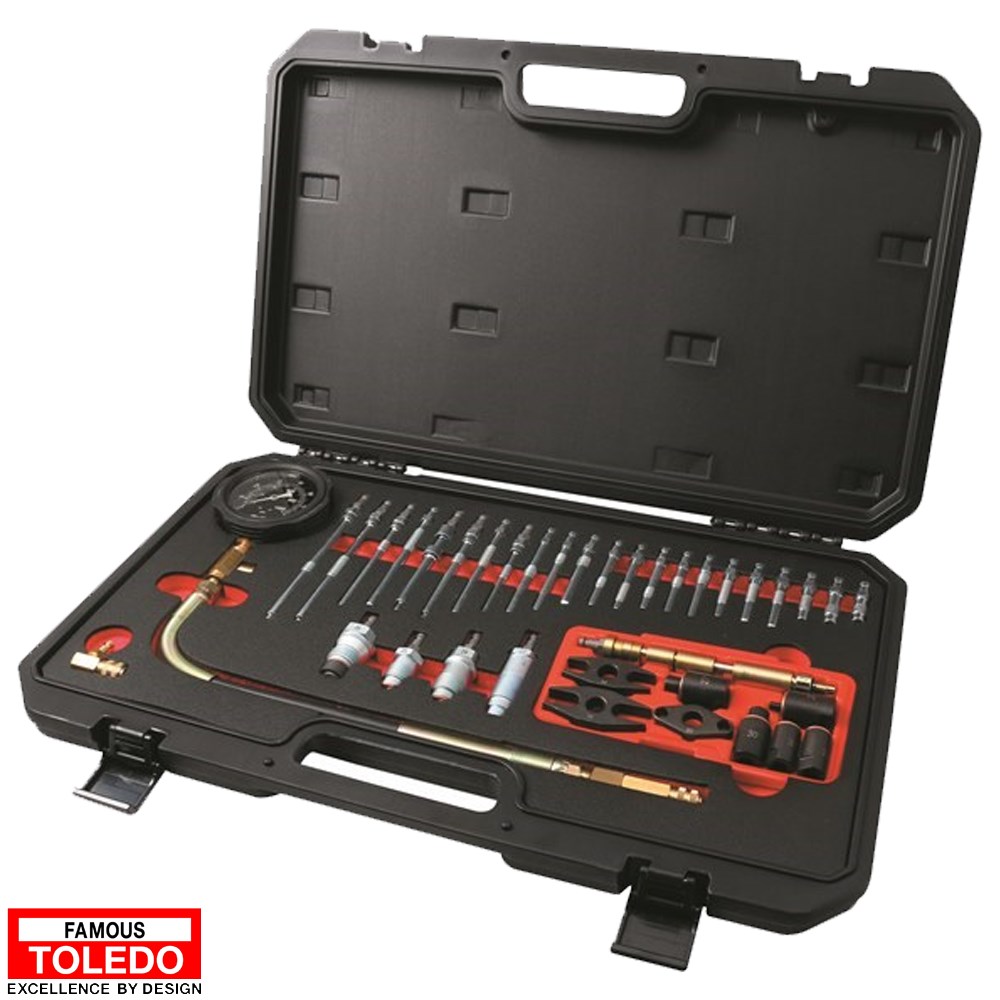

The Toledo Diesel Master Compression Tester Kit 1000 PSI is a professional compression tester kit for problems related to diesel engines. The kit provides assistance in checking high pressure automotive, commercial and heavy industrial applications. Kit is supplied in a blow mould storage case.
Inclusions:
- User guide

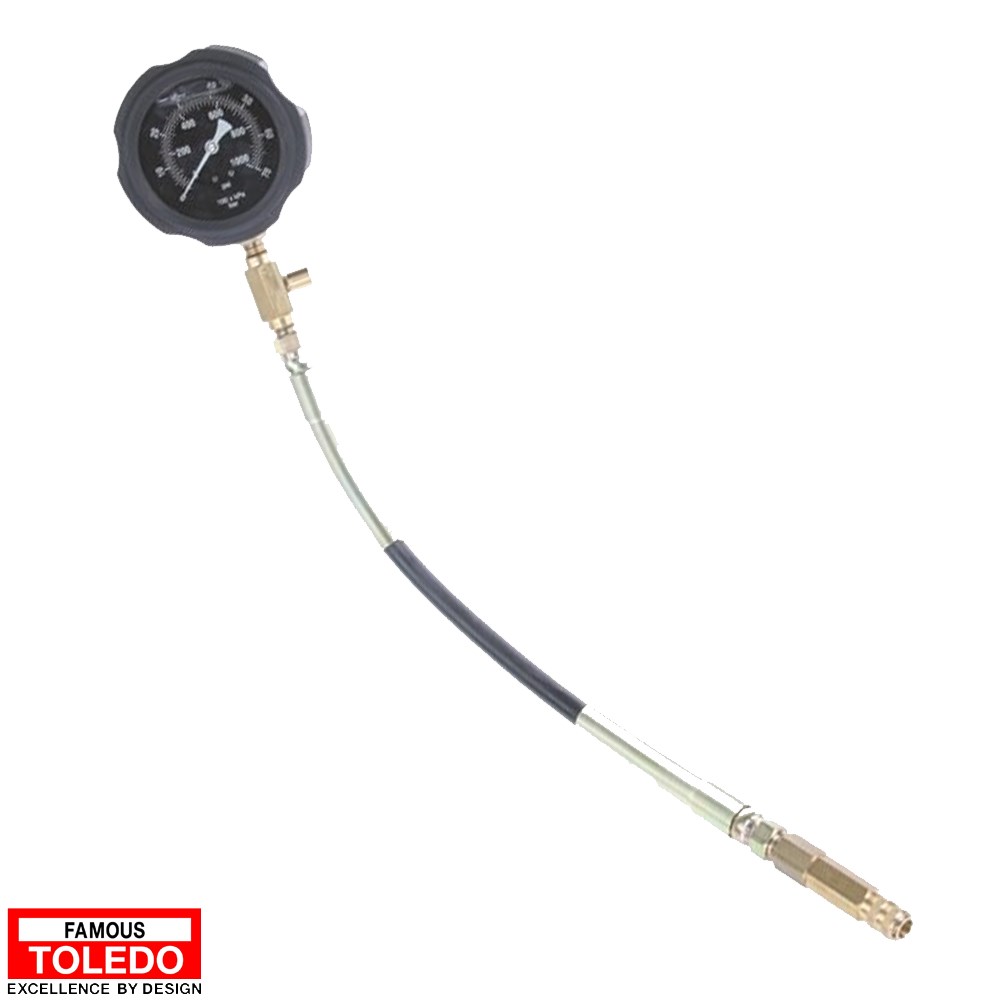

- 304600A Guage assembly - 1000psi

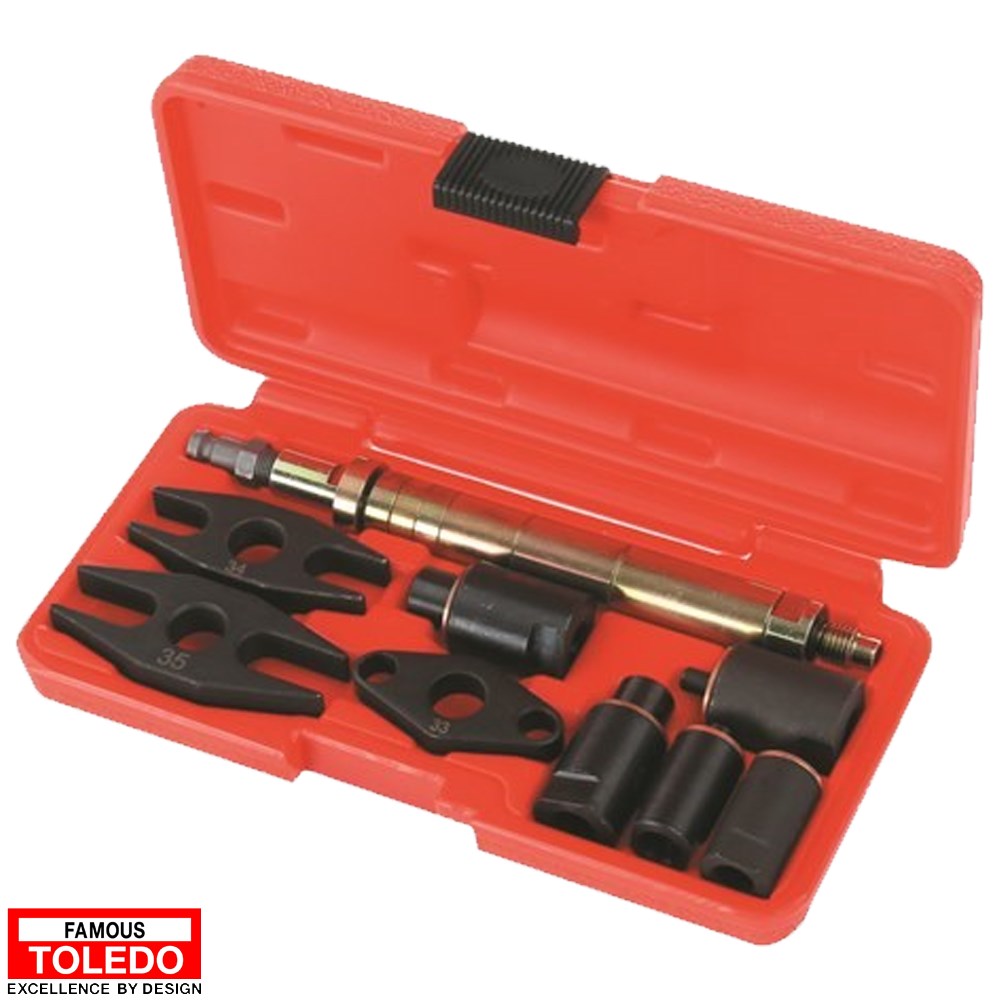

- 304600B Clamp-On Spindle Kit
- 304600-1 Glow Plug No 1 - L: 17.5mm M12 x 1.25
- 304600-2 Glow Plug No 2 - L: 20mm M12 x 1.25
- 304600-3 Glow Plug No 3 - L: 28.5mm M10 x 1.25
- 304600-4 Glow Plug No 4 - L: 42mm M10 x 1.25
- 304600-5 Glow Plug No 5 - L: 45mm M10 x 1.25
- 304600-6 Glow Plug No 6 - L: 44mm M10 x 1.25
- 304600-7 Glow Plug No 7 - L: 54mm M10 x 1.0
- 304600-8 Glow Plug No 8 - L: 43mm M10 x 1.0
- 304600-9 Glow Plug No 9 - L: 26mm M10 x 1.0
- 304600-10 Glow Plug No 10 - L: 32mm M10 x 1.25
- 304600-11 Glow Plug No 11 - L: 35mm M10 x 1.0
- 304600-12 Glow Plug No 12 - L: 58mm M12 x 1.25
- 304600-13 Glow Plug No 13 - L: 71mm M10 x 1.0
- 304600-14 Glow Plug No 14 - L: 59mm M10 x 1.0p
- 304600-15 Glow Plug No 15 - L: 61mm M8 x 1.0 1
- 304600-16 Glow Plug No 16 - L: 85mm M10 x 1.25
- 304600-17 Glow Plug No 17 - L: 80mm M10 x 1.0
- 304600-18 Injector No 18 - L: 69mm
- 304600-19 Glow Plug No 19 - L: 102mm M10 x 1.25
- 304600-20 Glow Plug No 20 - L: 88mm M9 x 1.0
- 304600-21 Glow Plug No 21 - L: 85mm M10 x 1.25
- 304600-22 Glow Plug No 22 - L: 73mm M10 x 1.0
- 304600-23 Injector No 23 - L: 43mm M22 x 1.5
- 304600-24 Injector No 24 - L: 28mm M24 x 1.5
- 304600-25 Injector No 25 - L: 29mm M20 x 1.5
- 304600-26 Injector No 26 - L: 26mm M24 x 2.0
