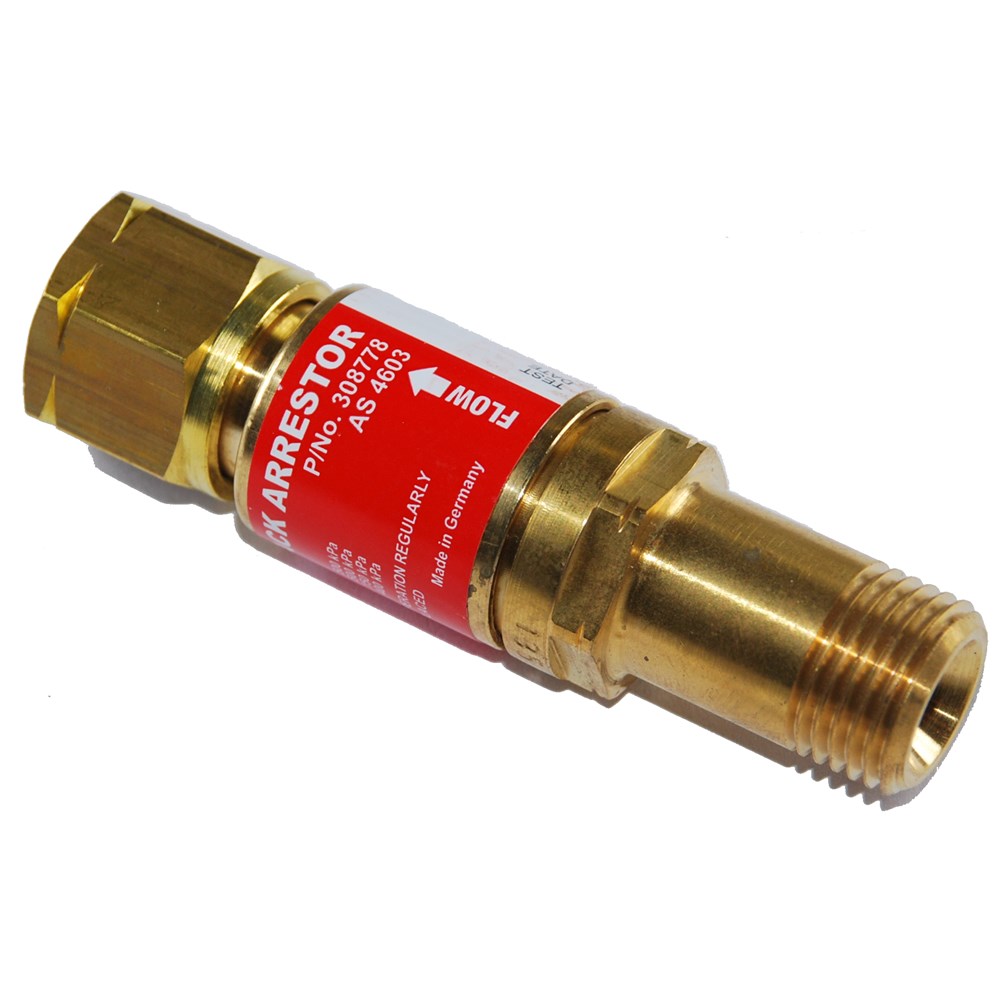

Cigweld COMET F6 Flashback Arrestor, Fuel

Designed for connection to the inlet of blowpipes in medium flow applications. Non-return valve. Cylindrical stainless steel flame arrestor. Supplied with an inlet filter. Complies to AS4603. Conforms to EN730/DIN 8521, UL, ISO 5175 class I (fittings to AS4267-1995). Tested by BAM.

Features

• Designed for connection to the inlet of blowpipes in medium flow applications.
• Non-return valve.
• Cylindrical stainless steel flame arrestor.
• Supplied with an inlet filter.
• Complies to AS4603.
• Conforms to EN730/DIN 8521, UL, ISO 5175 class I (fittings to AS4267-1995).
• Tested by BAM.

Specifications

• Blowpipe: COMET 3
• Extension Barrel: 307123, 307124, 307125
• Gas Consumption (Fuel): 41-55 l/min
• Gas Consumption (Oxy): 45-58 l/min
• Heat Output: 180 MJ/HR
• Mixer: 304003
• Model Number: SHA1
• Operating Pressure (Fuel): 100 kPa
• Operating Pressure (Oxy): 150 kPa
• Tip Size: 8x12
