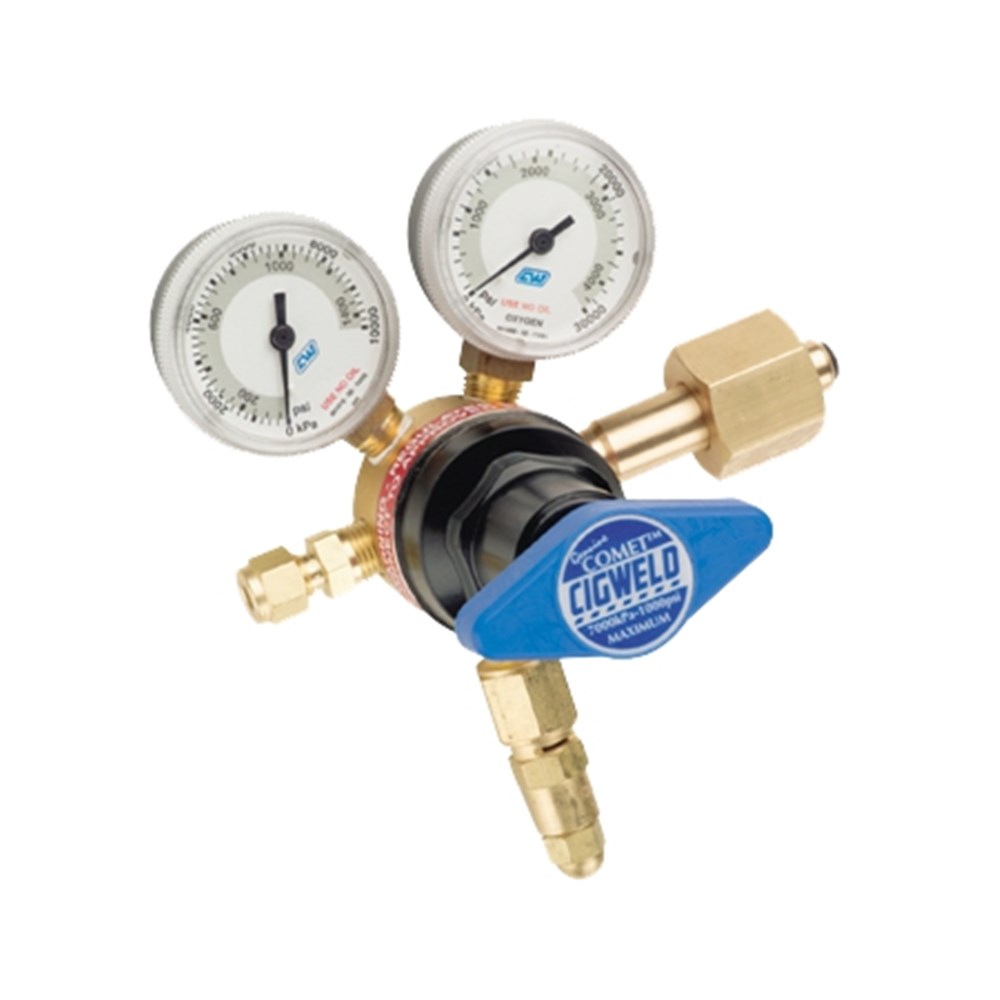

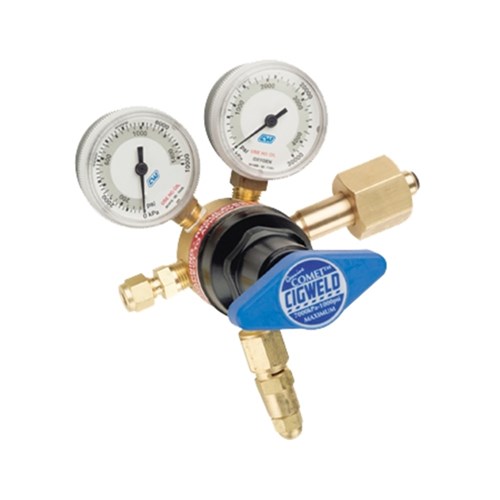

Cigwled COMET 5000 HP Nitrogen Regulator 3000kPa
COMET 5000 High-Pressure Regulators are ideally suited for industrial or laboratory work, pneumatic loading of test apparatus, static testing of pressure components, pressurising high pressure systems or high pressure decanting.
features
- Based on the COMET regulator design. Provides safe and accurate control of pressures up to 3,000kPa.
- Pressure relief valves for the 3,000kPa and 7,000kPa delivery regulators.
- Specially hardened diaphragms for strength and accuracy.
- Tube outlet connectors prevent accidental connection to low pressure equipment.
- Gauges comply with AS1349. Inlet connections comply to AS2473.
Specifictaion
- Maximum Inlet Pressure: 20,000kPa @ 15°C
- Maximum Outlet Pressure: 3,000kPa
- Air Flow @ Outlet; 1,600 l/min @ 2,500kPa
- Inlet Test Pressure: 8,000kPa (to achieve air flow @ outlet stated)
