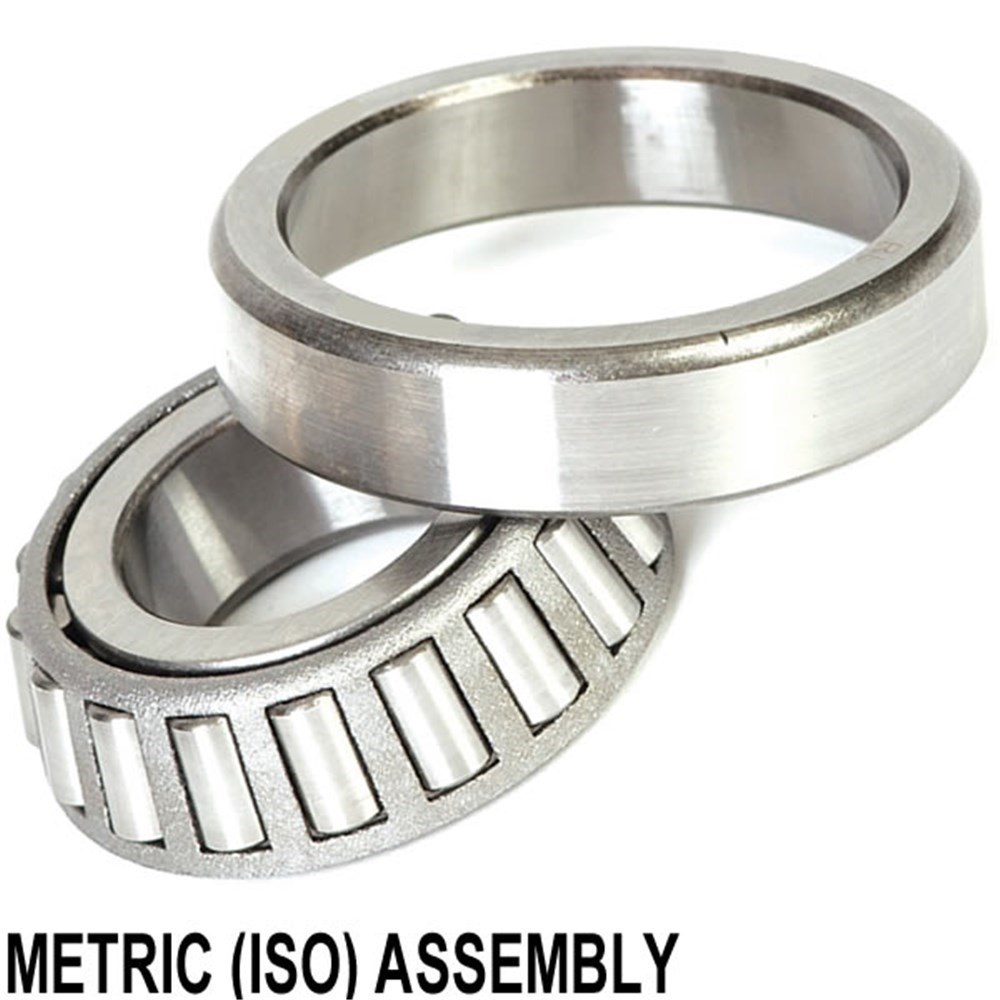

32210 Tapered Roller Bearing – Cup & Cone Assembly

Tapered roller bearings are specialised to withstand both thrust and radial loads within rotating shafts and housings. Among the various types, Metric ISO Class bearings are commonly recognized, comprising a full assembly integrating the cup (outer ring) and cone (inner ring). Their design enables easy assembly and disassembly, simplifying installation and maintenance procedures. These bearings are often installed in opposing pairs on a shaft, optimizing their load-bearing capability and overall efficiency.

Specifications

• Bore: 50 mm
• Cup Outer Diameter: 90 mm
• Cone Width: 23 mm
• Cup Width: 19 mm
• Bearing Width: 24.75 mm
