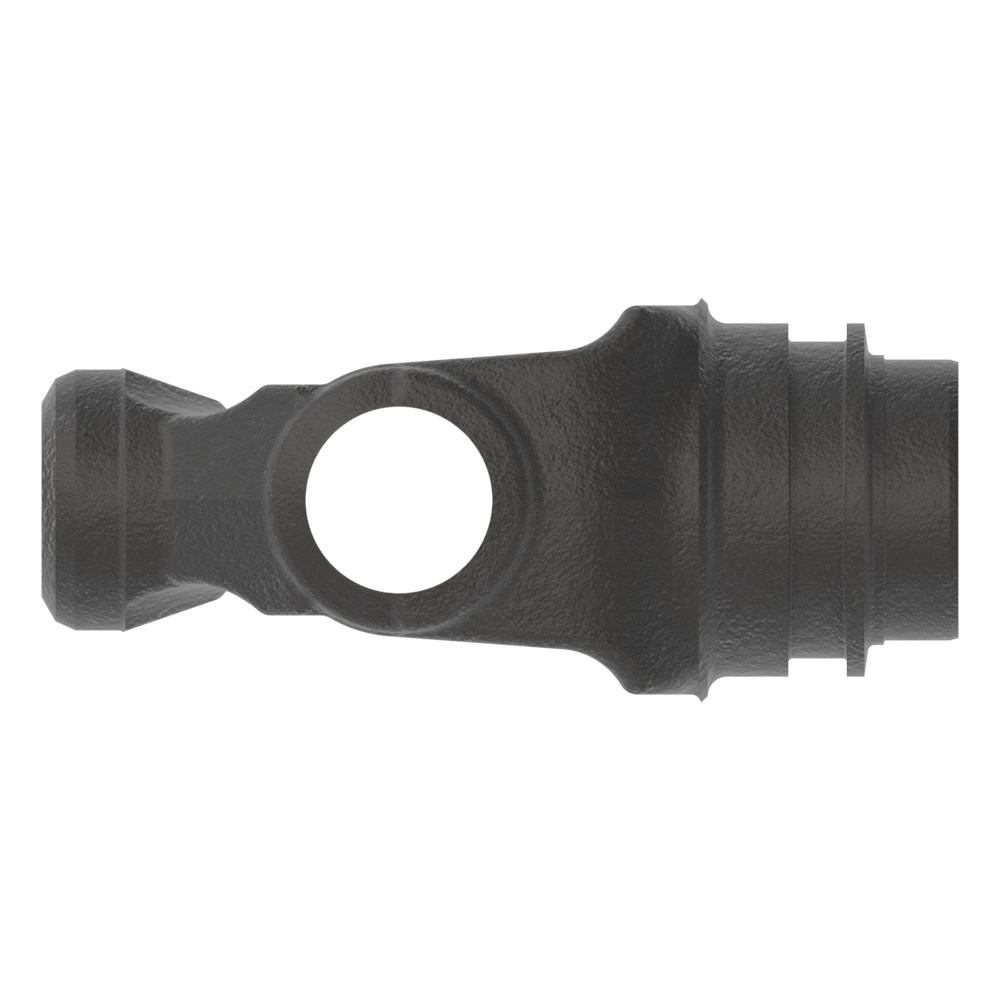

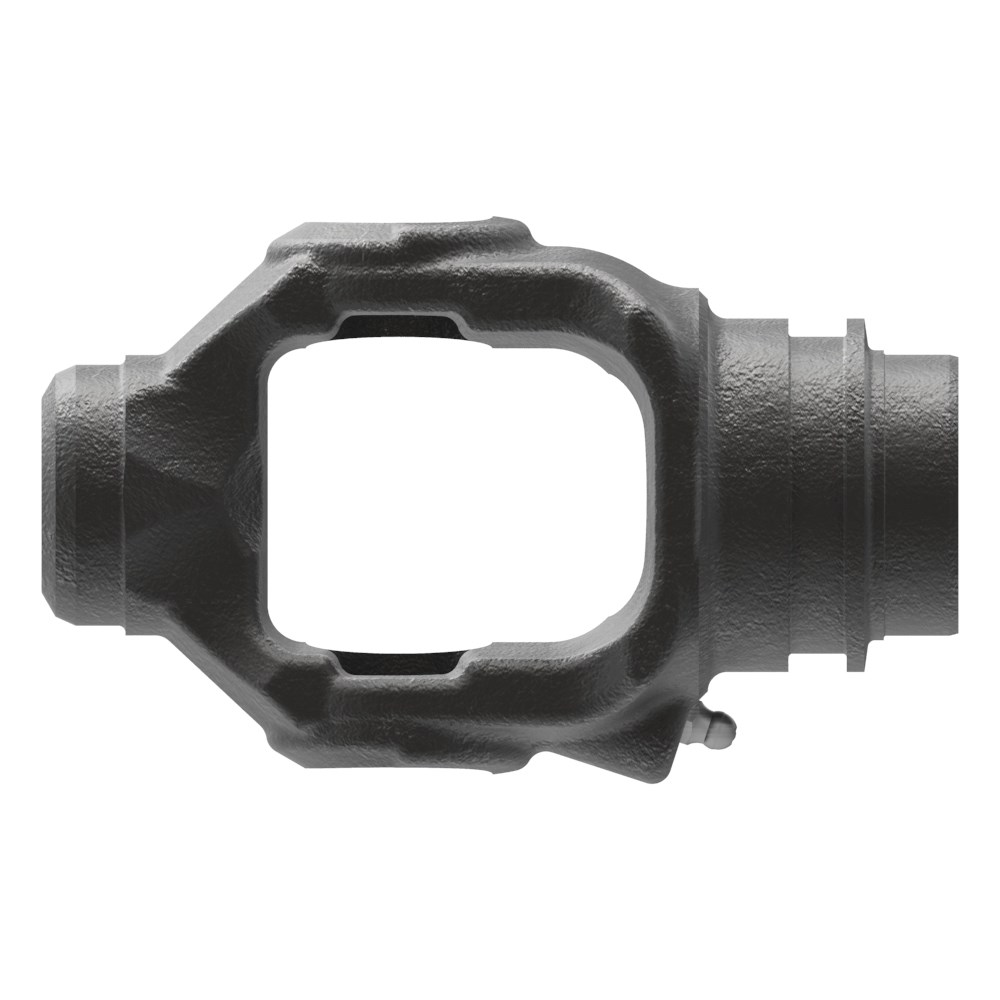

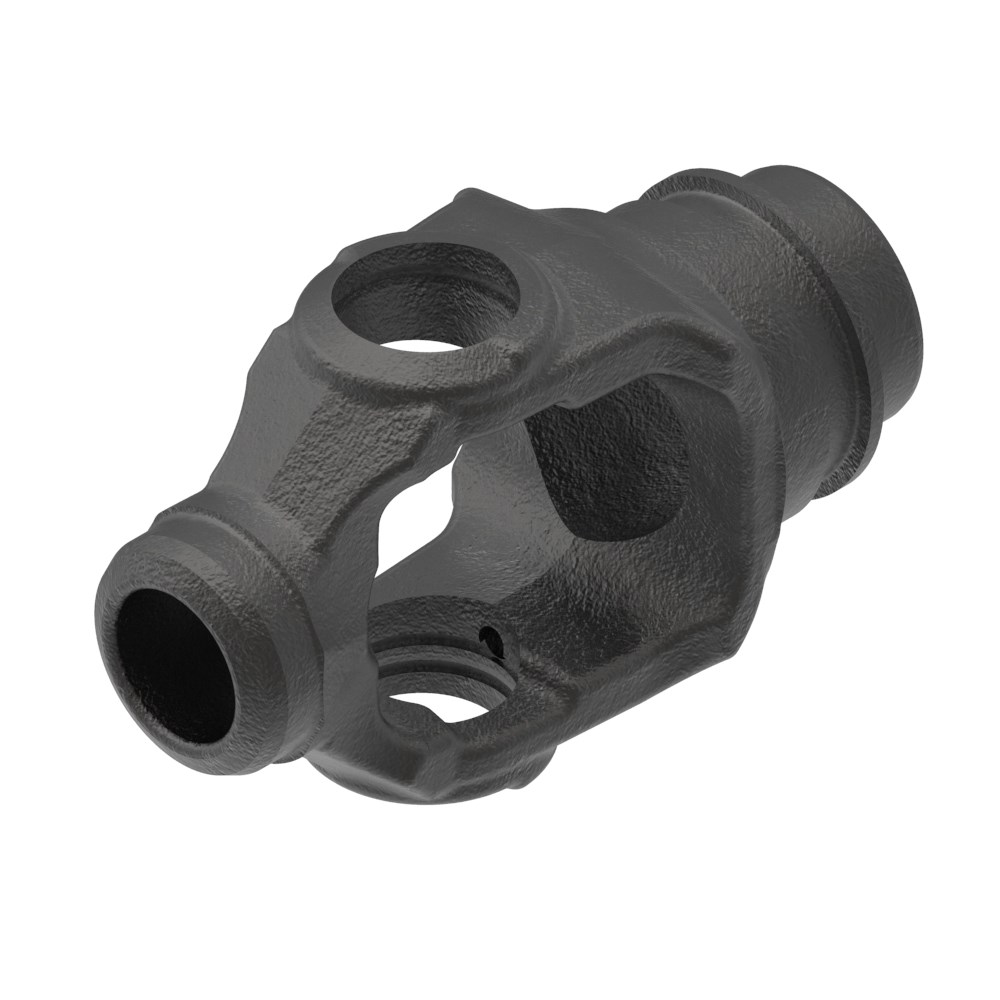

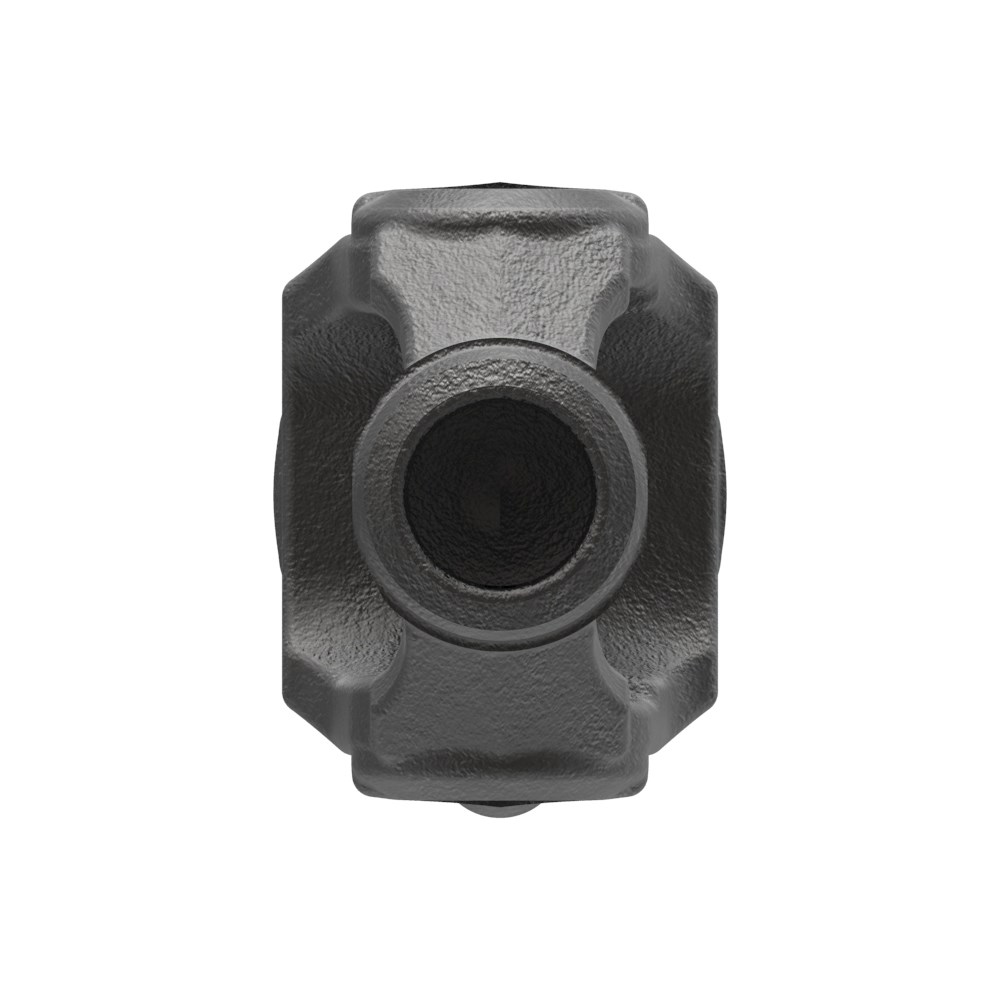

Weasler 4-50 series weld yoke . Weasler CV Wide Angle yokes are made from steel to withstand robust conditions, and engineered for a precise fit. CV wide angle yokes allow a rotating shaft to transmit power through a variable angle, at constant rotational velocity, without an appreciable increase in vibration or friction. Weasler CV wide angle yoke weldment assemblies provide yoke to shaft and yoke to tube weldment options that are offered in both North American (domestic) , German, and Italian shaft and tube shapes.
Brands
- AGCO, Brandt, Farm King, John Deere
Features
| Series |
35 Series 4-50 |
|
|
| Cup Size |
31.75mm |
1.25" |
1-1/4" |
| Cross kit width - overall width |
81.78mm |
3.20" |
3-7/32" |
| Bore |
1.60" |
|
|
| Type |
Weld Yoke |
|
|
| Circlip Type (Snap Ring) |
External (Located in yoke) |
|
|
| Weasler Part Number |
750-3500 |
|
|
