HYD DOUBLE ACTING SEAL 1.500

1.500 X 1.068 X 0.165 TYPE 754

Product Code: 4432310
  $25.95
EACH inc GST
Afterpay Logo
4 payments of $6.49
In Stock Low Stock Contact Us Please See Attributes 3
Increase value Decrease value

  • Detail
  • Downloads

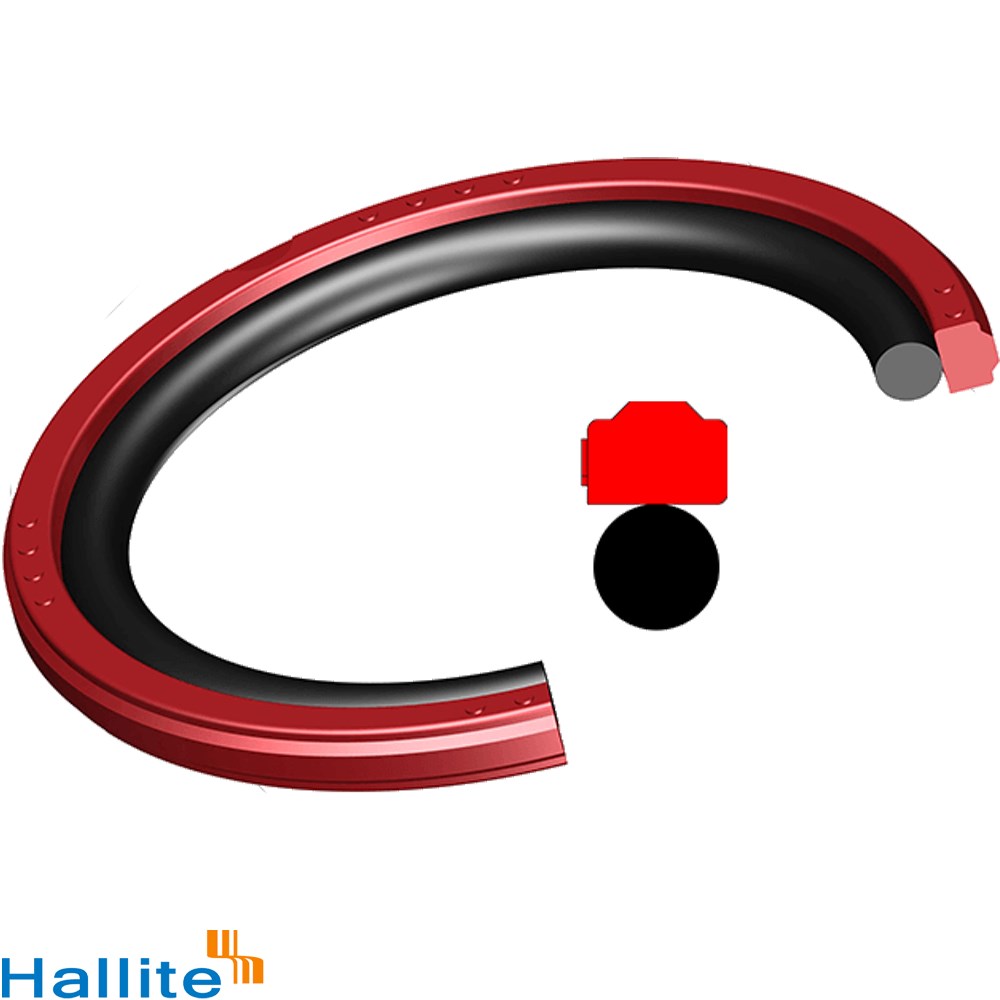

Hallite 754 Piston Seal

The Hallite 754 Piston Seal offers reliable, double-acting sealing with a durable polyester face backed by a pre-loaded NBR O-ring.

Ideal for light to medium-duty applications, this compact seal minimizes friction for smooth operation and excellent position holding under load. Constructed with wear-resistant thermoplastic elastomer, it provides exceptional durability, compatibility with most hydraulic fluids, and enhanced tolerance to contamination. The narrow housing width also allows for a more compact piston design.

Features

  • Compact, low-friction seal for light to medium-duty applications
  • Durable polyester face with pre-loaded NBR O-ring
  • Excellent position holding under load
  • Low breakout and operating friction
  • High wear resistance and contamination tolerance
  • Rapid recovery after assembly
  • Compatible with most hydraulic fluids
  • Operates on a wide range of surface finishes

Specifications

  • D1: 1.5inch
  • d1: 1.067inch
  • L1: 0.165inch
  • Max Pressure: 350 Bar
  • Temp Range: -40 C to 110 C
  • Max Speed: 1m/sec
