The UniMig AT1000 Compressed Air Line Filter is the perfect solution to the problems created by the contamination of the compressed air used in many plasma cutting systems. It eliminates splutter caused by moisture and oil from compressed air lines. It extends the electrode and tip life, with obvious benefits to the cut quality.
Designed to remove areosol oil and moisture, entrapping particles as small as .01 microns inches, with the “AT 1000” torches Iast longer. Using a plasma cutter without the “AT 1000” fitted will result in condensed moisture remaining in the torch and torch head. This moisture can cause a short-circuit, with subsequent costs for the replacement of the torch head.
The ”AT 1000’ can filter up to 1250 Iitres a minute without reduction in pressure.
It is recommended that the filter cartridge to be replaced every 5 to 7 days.

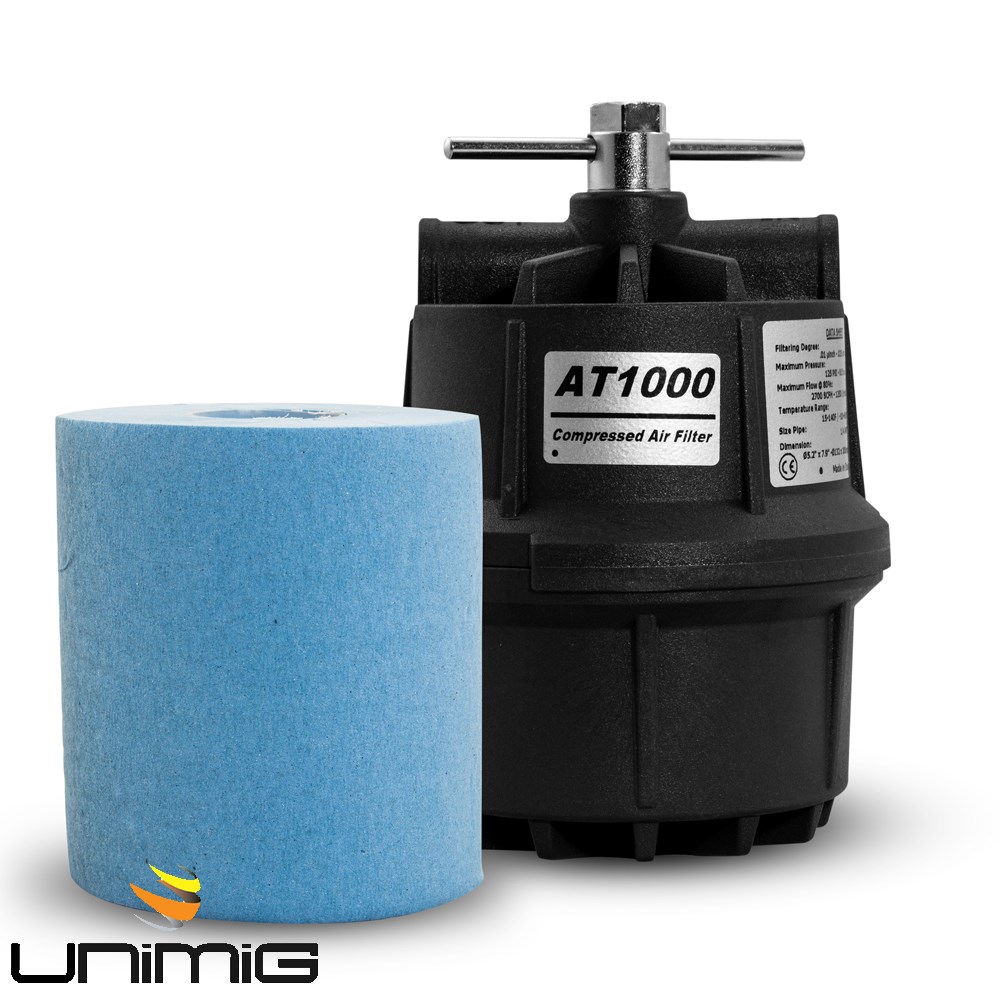

Includes:

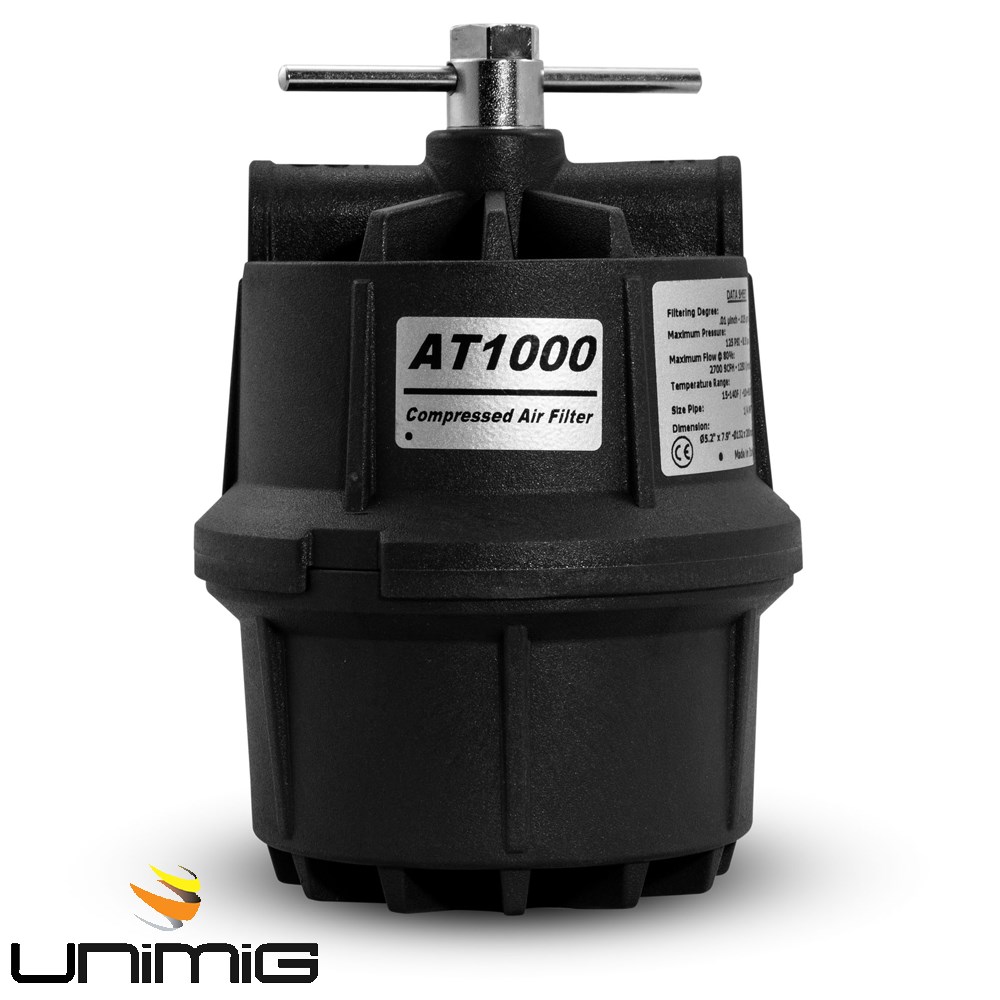

- 1 x 5050012 - Sub-Micronic Air Filter

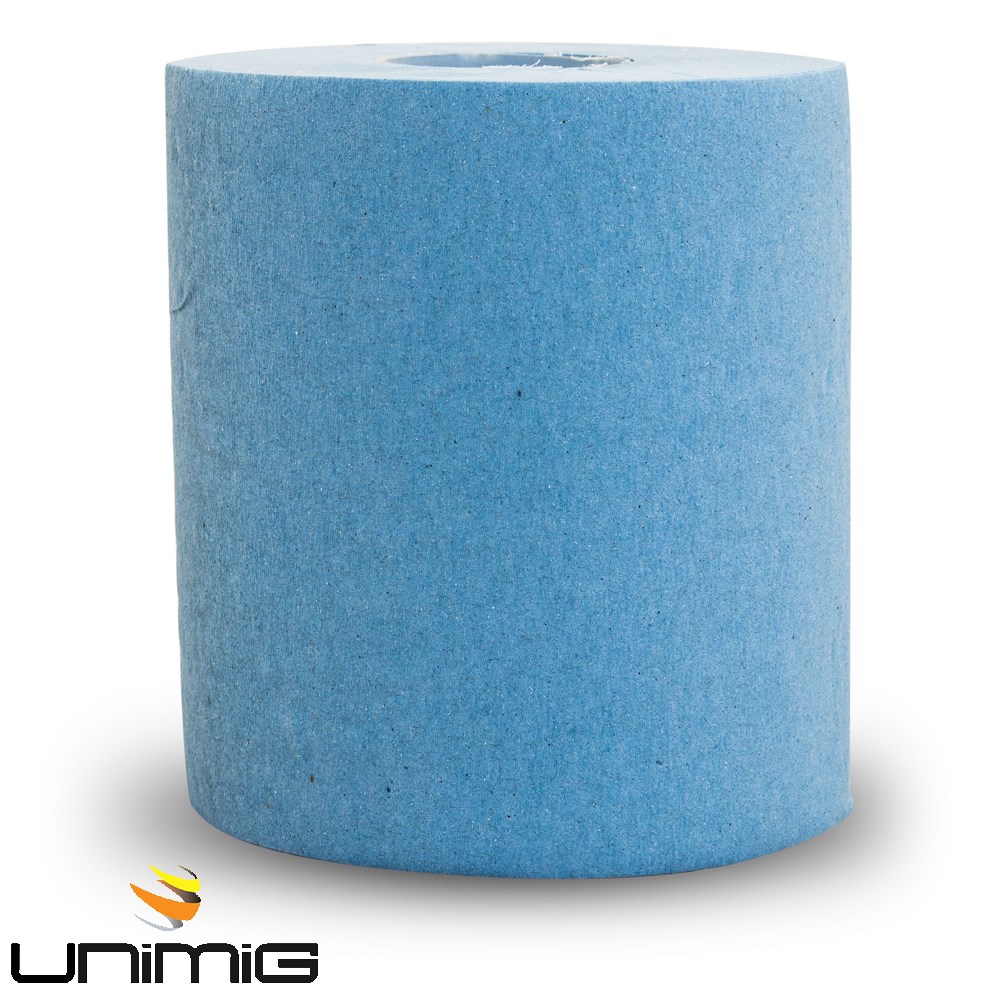

- 1 x 5050548 - Sub-Micronic Cartridge
Specifications:
- Filtering degree: 01 pinch - 0.25 pm
- Maximum pressure: 125 PSI - 8.5 bar
- Maximum flow @ 80%: 2700 SCFH - 1250|/min
- Temperature range: 1 5-1 40F / -1 0 +60Co
- Size pipe: 1/4 NPT
- Dimension: 132mm x 200 mm
