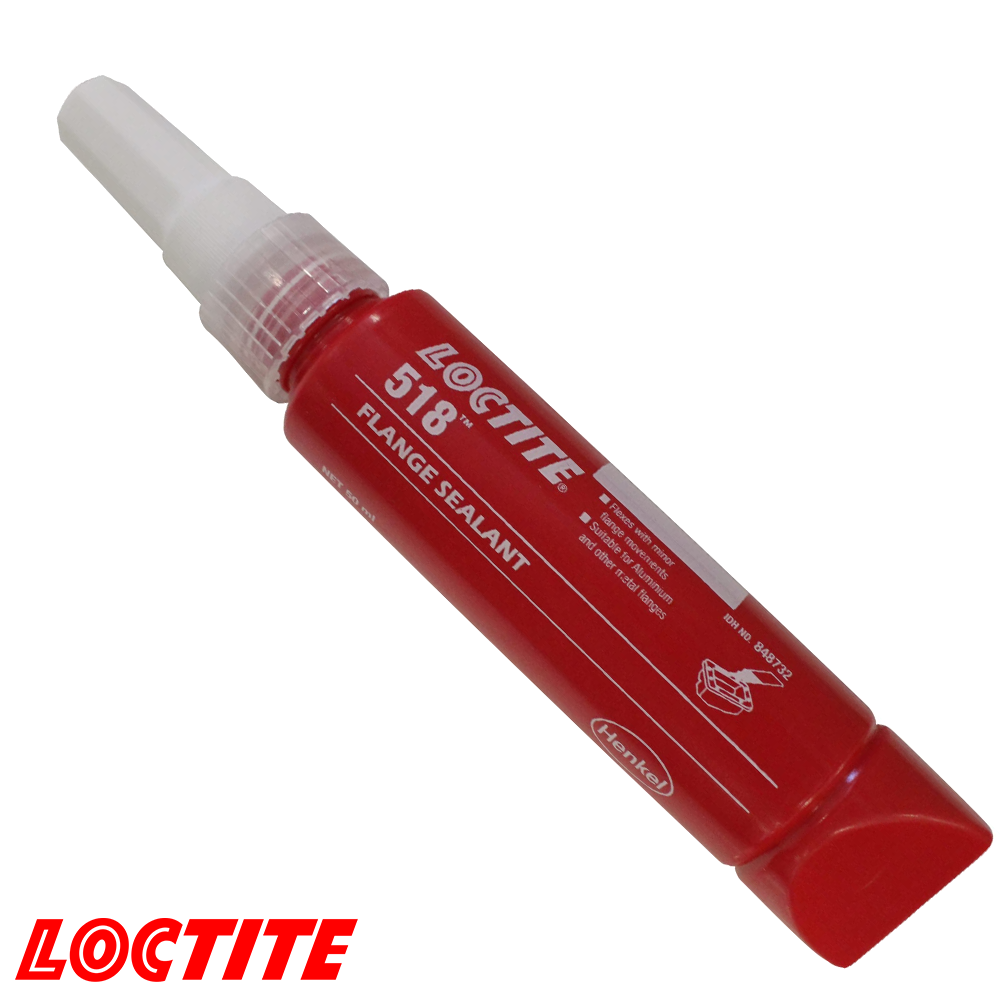

Loctite 518 - 50ml Medium Strength General Purpose Gasket Eliminator

LOCTITE 518 cures when confined in the absence of air between close-fitting metal surfaces. It is an anaerobic gasketing material designed for use on rigid iron, aluminum, and steel flanged mating surfaces. Fills gaps up to 0.25mm and forms a flexible, chemical-resistant seal that will not tear or decay. Parts disassemble easily, even after extended service. Typical applications include sealing close-fitting joints between rigid metal faces and flanges. It is also used as a formed-in-place gasket on rigid flanged connections, e.g. transmissions and motor housings.

Features

• Semi-flexible, medium-strength anaerobic flange gasket
• For active and inactive rigid metal flanges
• Cures through minor surface contamination
• Adapts to flange surface irregularities and gaps up to 0.25 mm
• Gel-type consistency
• Seals instantly against low pressure
• Reduces inventory costs – no need for large inventory of cut gaskets
• Resists high pressure when fully cured
• No compression set or misaligned gaskets
• Easy to automate
• Reduces process costs – eliminates manual assembly of conventional gaskets
• NSF P1 Reg. No. 123758

Specifications

• Colour: Red
• Fixture Time: 25min.
• Fixture Time Temperature: 25 °C
• Gap Fill: 0.3mm
• Metal: Aluminum
• Tensile Shear Strength: 7.5N/mm²
