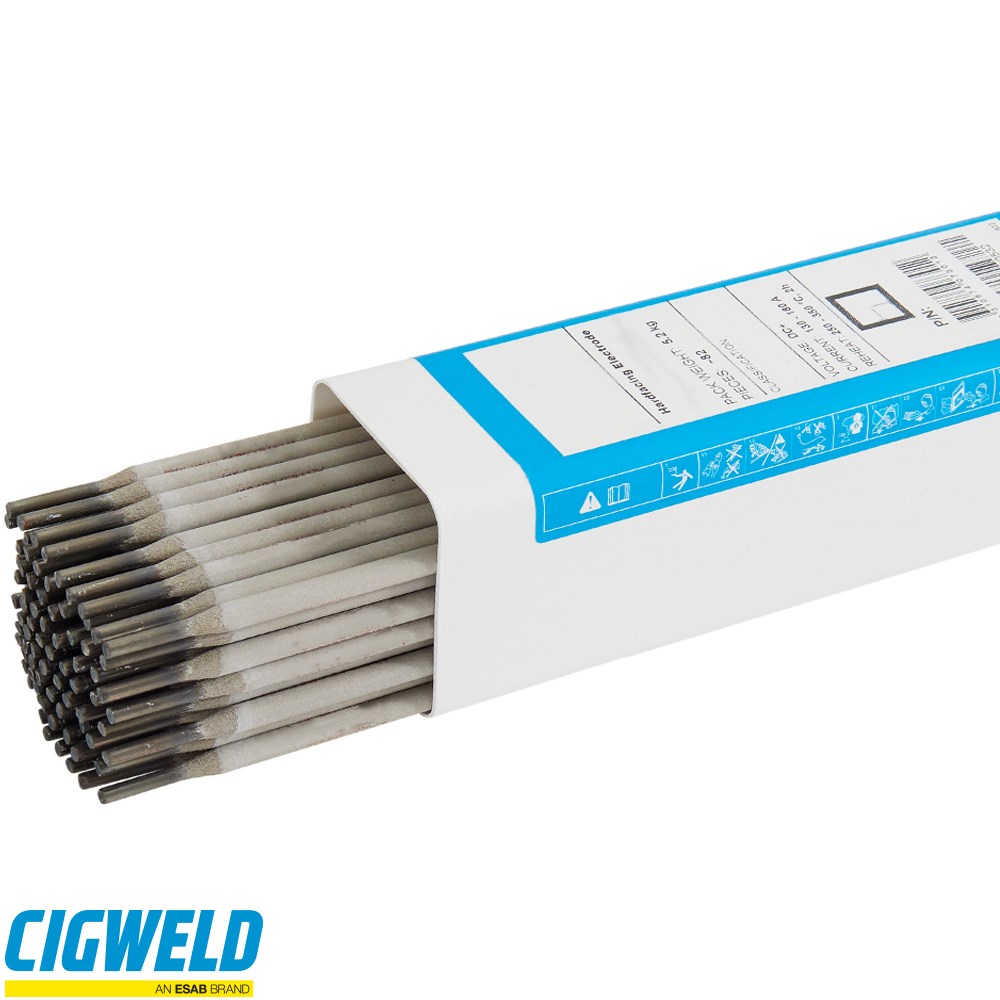

Cigweld Ferrocraft 22
Ferrocraft 22 is a rutile-type, high iron powder electrode designed for high-productivity fillet and butt welding of mild steel in flat and horizontal-vertical positions. It offers excellent slag lift and side wall wash at weld toes, with welding speeds nearly twice as fast as conventional electrodes of similar size and length. Ferrocraft 22 is ideal for high-production welding, especially when large standing fillet welds are needed.
This electrode is perfect for heavy structural applications such as tanks, frames, girders, beams, ship structures, rolling stock, and general fabrication in both workshop and on-site settings. It is also well-suited for on-site repair, maintenance, and fabrication jobs, where the added iron powder enhances usability.
Features
- Rutile-type, high iron powder electrode
- Designed for fillet and butt welding of mild steel
- Suitable for flat and horizontal-vertical positions
- Excellent slag lift and side wall wash at weld toes
- Nearly double the welding speed of conventional electrodes
- Ideal for large standing fillet welds and heavy structural applications
- Suitable for workshop and on-site use
- Enhanced usability for on-site repair, maintenance, and fabrication jobs
Specifications
- Electrode Size: 3.2mm
- Electrode Length: 380mm
- Approx no rods/kg: 18
- Current Range: 130-170amps
- Pack Size: 5.8kg
