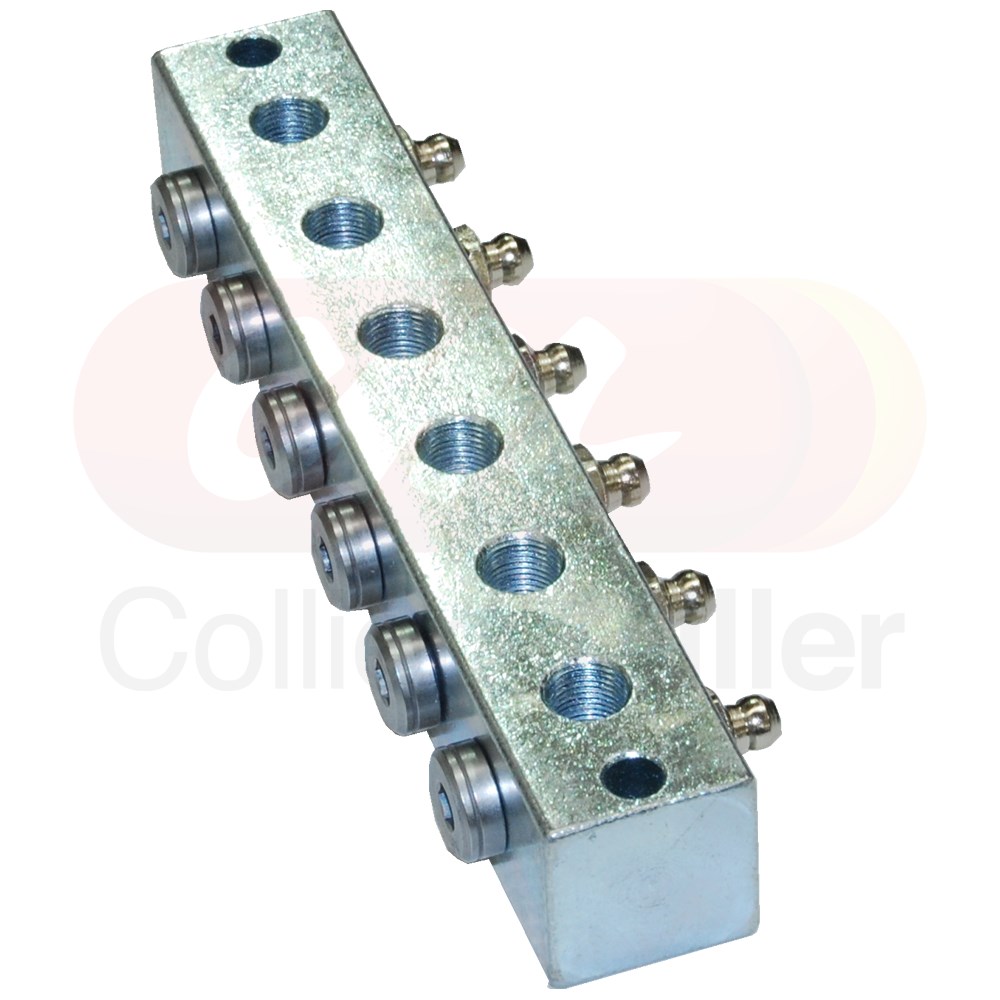

Fat Adder™ remote grease line manifold, a simple centalised greasing system for your machinery. This grease anchor block is supplied with 6 grease nipples and 1/8" BSP threaded ports. Steel blocks are T-drilled giving the option to install the grease line in line with the grease nipple or 90 degrees to the grease nipple. 1/8BSP plugs are included.
Team this block up with your choice of compression, push-in or high pressure tube with field atttachable fitting to create the perfect and convenient central grease syste.
 |
|
L1 (mm) |
L2 (mm) |
L3 (mm) |
1 Port |
38 |
28 |
|
2 Port |
60 |
50 |
22 |
3 Port |
80 |
74 |
22 |
4 Port |
106 |
96 |
22 |
5 Port |
128 |
118 |
22 |
6 Port |
150 |
140 |
22 |
8 Port |
194 |
184 |
22 |
