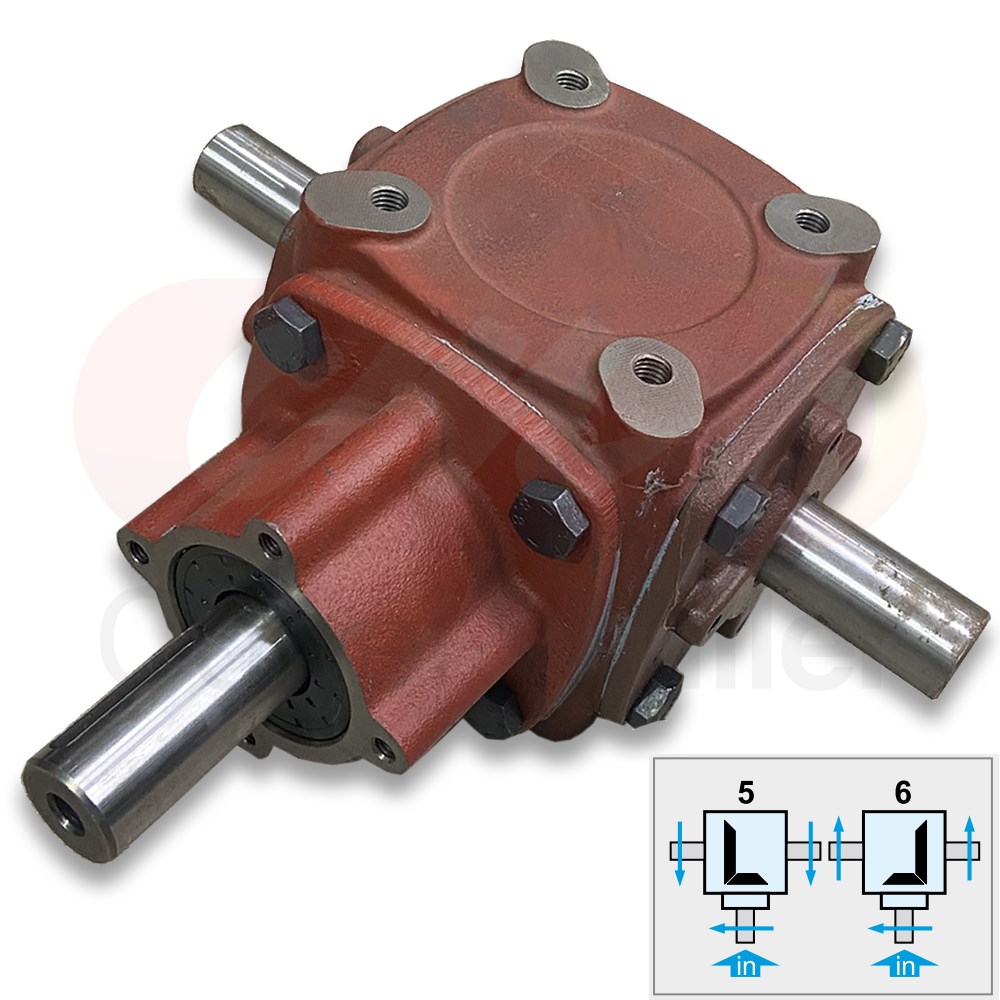

9.269.021.00 Comer T-19 Gearbox for general applications. Commonly used in agricultural applications where M30 Keyed input shafts are required.
This Comer gearbox is chinese origin of manufacture. Common uses include auger bins. Using tapered roller bearing internals the box uses SAE90 gear oil. It is supplied without oil.
Cross Reference - AL01941
| Specifications |
|
| Ratio |
2:1 |
| Rated Input Speed |
540 RPM |
| Rated Power |
12.5 Kw @ 540 RPM |
| Rated Torque |
348 Nm |
| Shaft Type |
M30 keyed Shaft |
| Oil |
.88L SAE90 |
- Gearbox is supplied with no oil
- You must fill gearbox with recommended type and capacity before operation
