C&M stock a range of glycerine filled pressure gauges for use in many applications. the liquid filling ensures effective needle dampening, allowing for applications where high dynamic loads, vibrations and fast pressure cycles are present. Available in nominal sizes of 63 and 100 mm and fulfil IP65 ingress protection.

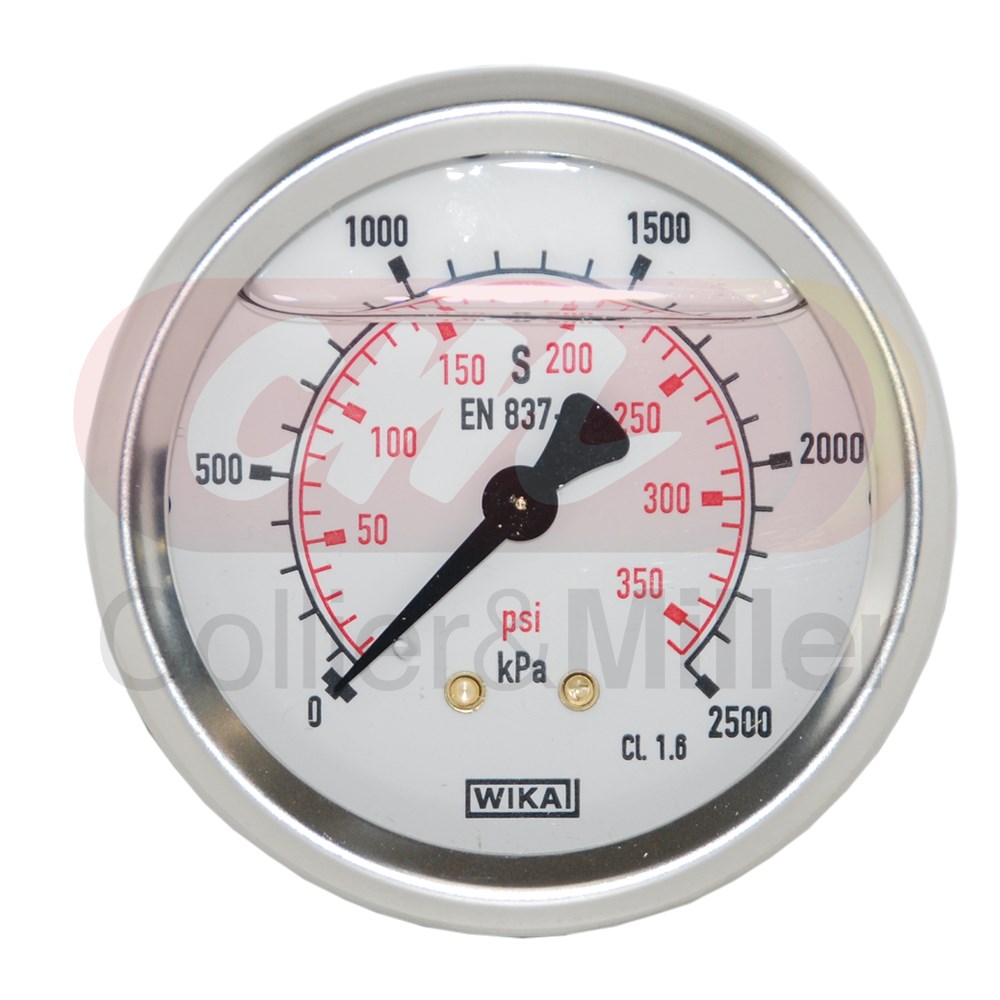

The liquid filled model 213.53 Bourdon tube pressure gauge is constructed with a case from stainless steel and wetted parts from copper alloy. This meets the requirements of the international industry standard EN 837-1 for Bourdon tube pressure gauges.
Applications
- For measuring points with high dynamic pressure loads and vibrations
- Hydraulics
- Air Compressors
- Liquid media that is not highly viscous or crystallising
- Gaseous media that is not highly viscous or crystallising
- Media that is compatible with copper alloy parts
Features
- Stainless steel case
- Copper alloy wetted parts
- Plastic, crystal clear face
- Glycerine filled case
- Vibration and shock-resistant
- Especially robust design
- Filling plug vent for internal pressure compensation
Brands
- We supply Wika as our first choice, however we may substitute if product is unavailable.
- If Wika is your preffered brand please contact us to ensure we send you the item you specify.
| Specification |
Value |
| Case Size |
63mm |
| Case Material |
Stainless Steel |
| Wetted Parts |
Copper Alloy |
| Scale |
PSI / Kpa |
| Mount Thread |
1/4" BSP-Taper Male |
