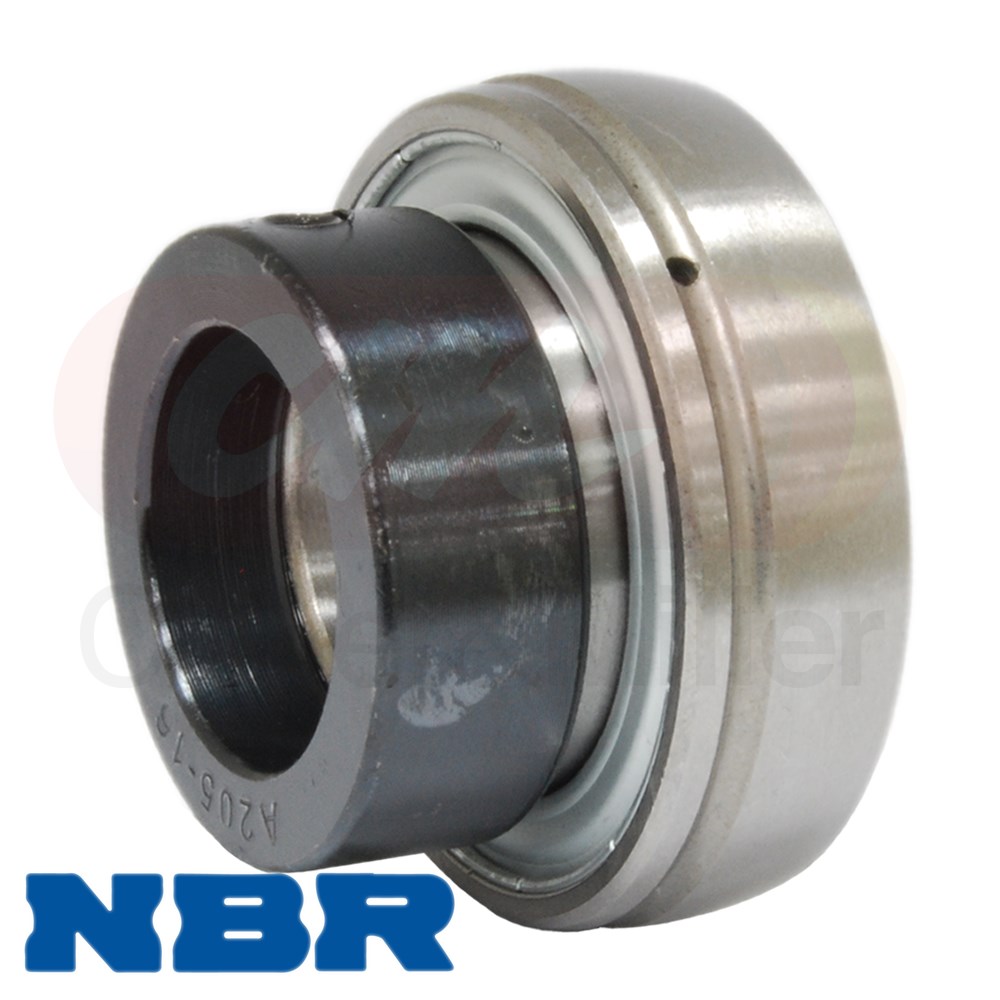

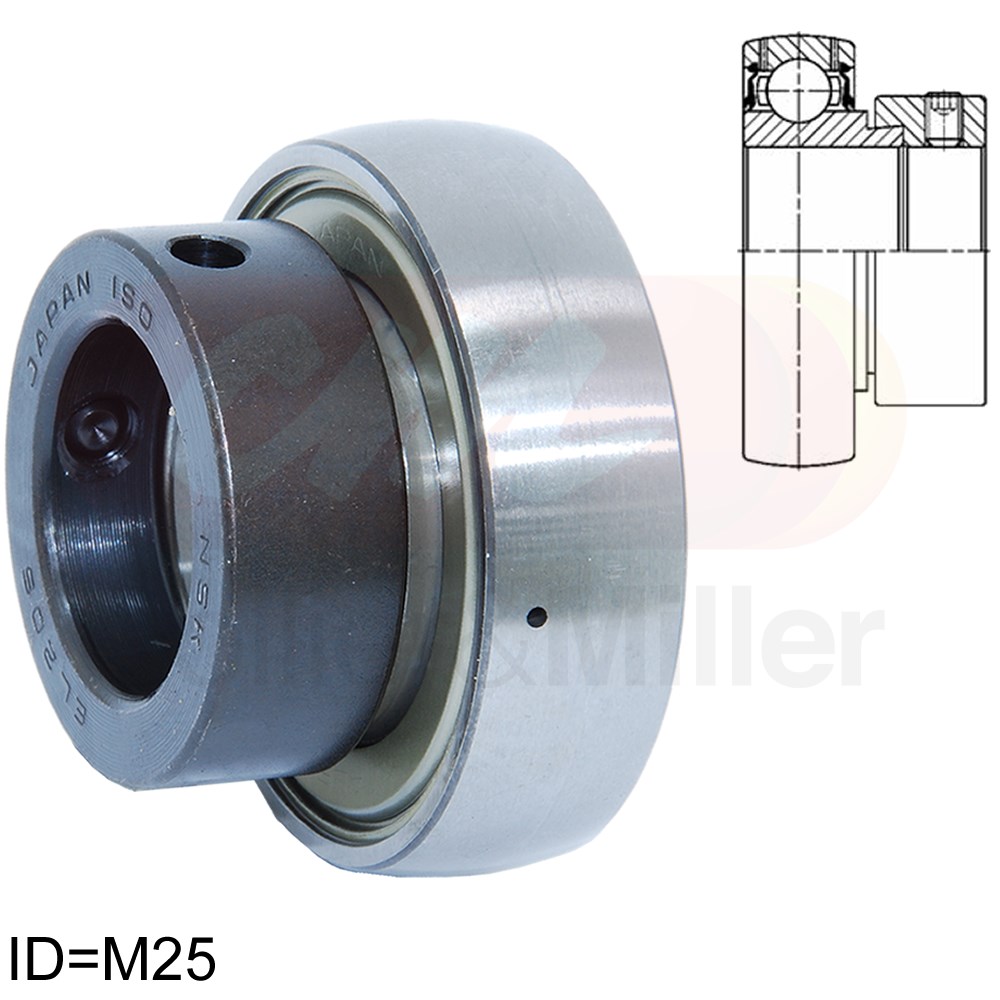

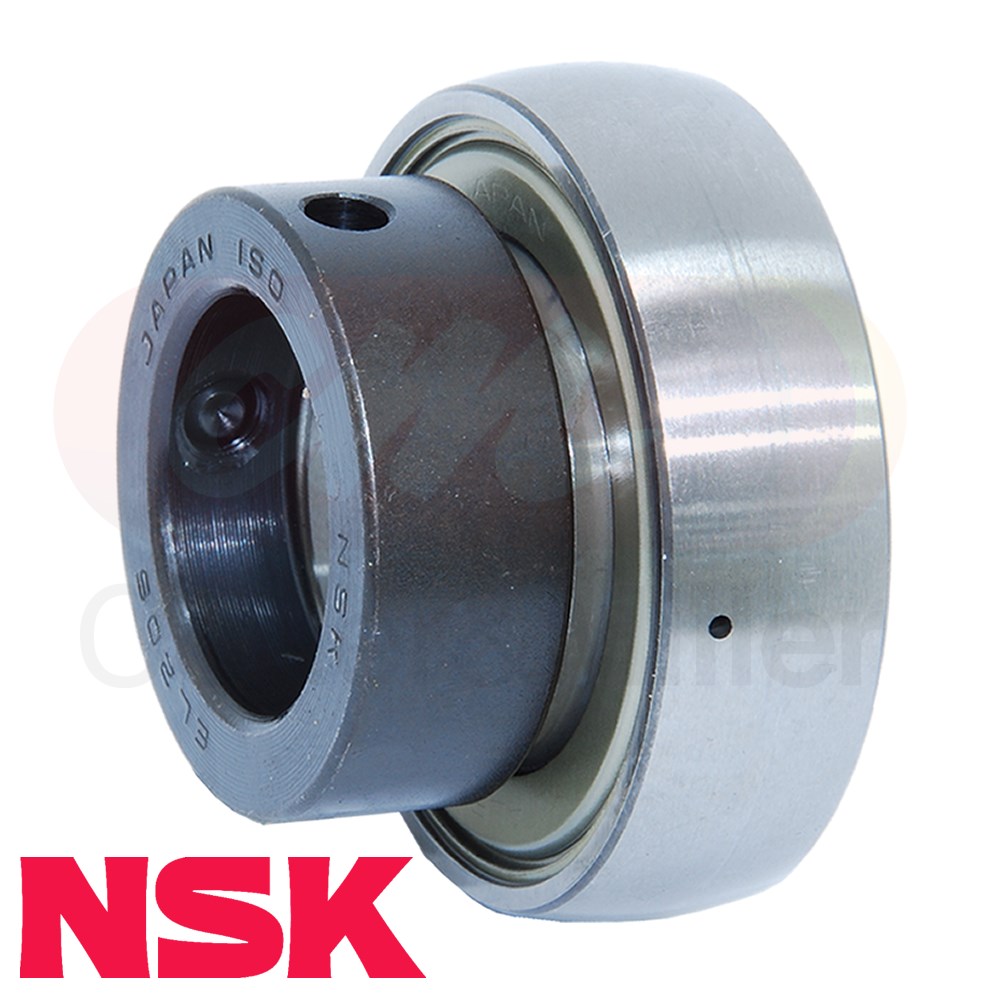

AEL2 Series
Locking Collar Bearing - Narrow Inner Ring
Self aligning bearing unit for use in a wide range of standard duty industrial, agricultural and food processing applications. The AEL2 series self aligning bearing is supplied with an eccentric locking collar. Maintenance free, it is supplied pre-filled with a high quality lithium based grease and can be re-greased if required. Economy brands supplied maybe NBR or UBC.
Series
- NBR - SA
- NSK - AEL2
- NTN - AEL2
- UBC - SA
Features
- Cylindrical bore
- Spherical outer ring
- Supplied with eccentric locking collar
- Pre-greased with lithium complex grease & re-greasable
- Steel re-inforced seal
- Positive seal lip to inner ring contact
| Techical Data - Non Brand Specific |
Imperial |
Metric |
| Bore Diameter |
|
25mm |
| Outside Diameter |
2.0472" |
52mm |
| Outer Ring Width |
0.5906" |
15mm |
| Inner Ring Width |
0.8465" |
21.50mm |
| Overall Width |
1.2205" |
31mm |
| Bore Type |
Cylindrical |
|
| Outer Ring Type |
Spherical |
|
| Max RPM |
5900 RPM |
|
| Locking Device |
Eccentric Locking Collar |
|
