Transmission Bearings

LOCKING COLLAR BEARING 1.00"

ID=1.00" OD=M52 W=M31 ECCENTRIC SPHERICAL NIR

Product Code: AEL205100
From
  P.O.A. prices may differ on variants
EACH inc GST
Afterpay Logo
Buy now. Pay later. Interest-free.
Afterpay Logo
Available for orders between $0.04-$2,000.00
Afterpay Logo
Unavailable for this order
Afterpay Logo
4 payments of
In Stock Low Stock Contact Us Please See Attributes
Increase value Decrease value

  • Detail

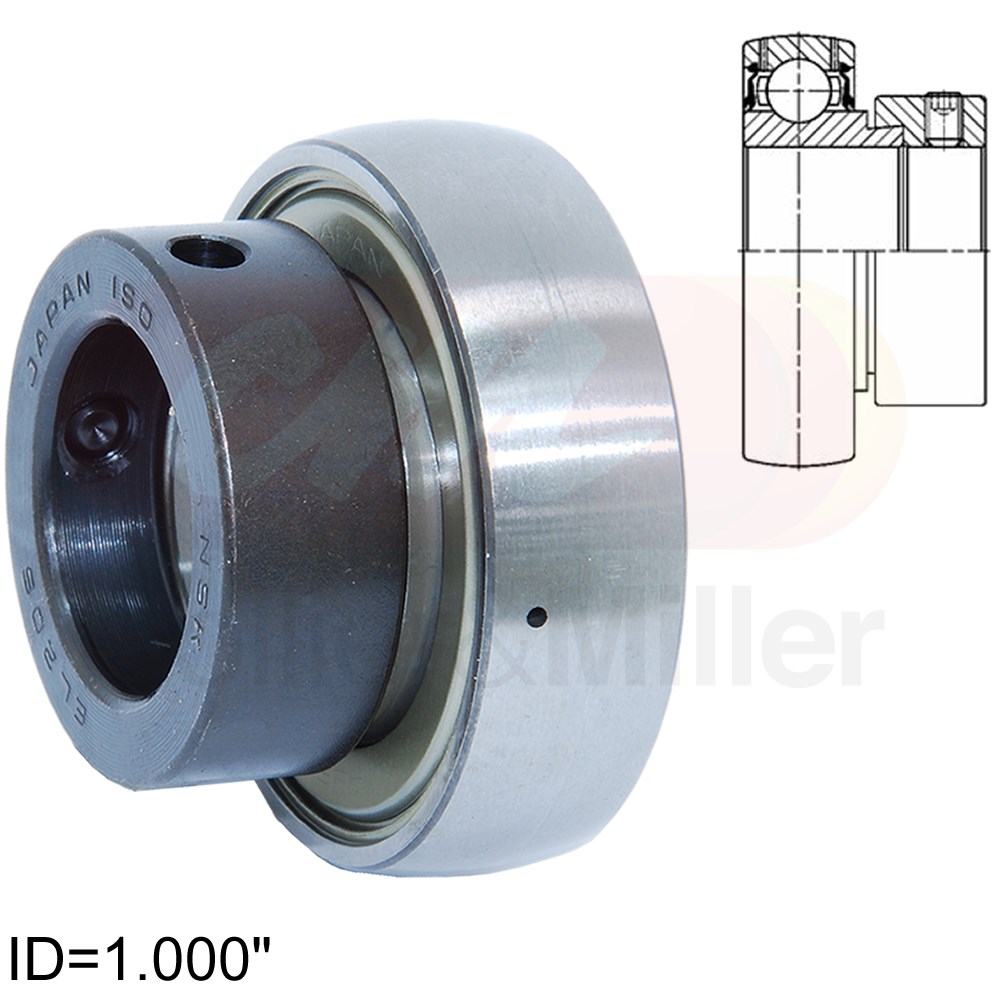

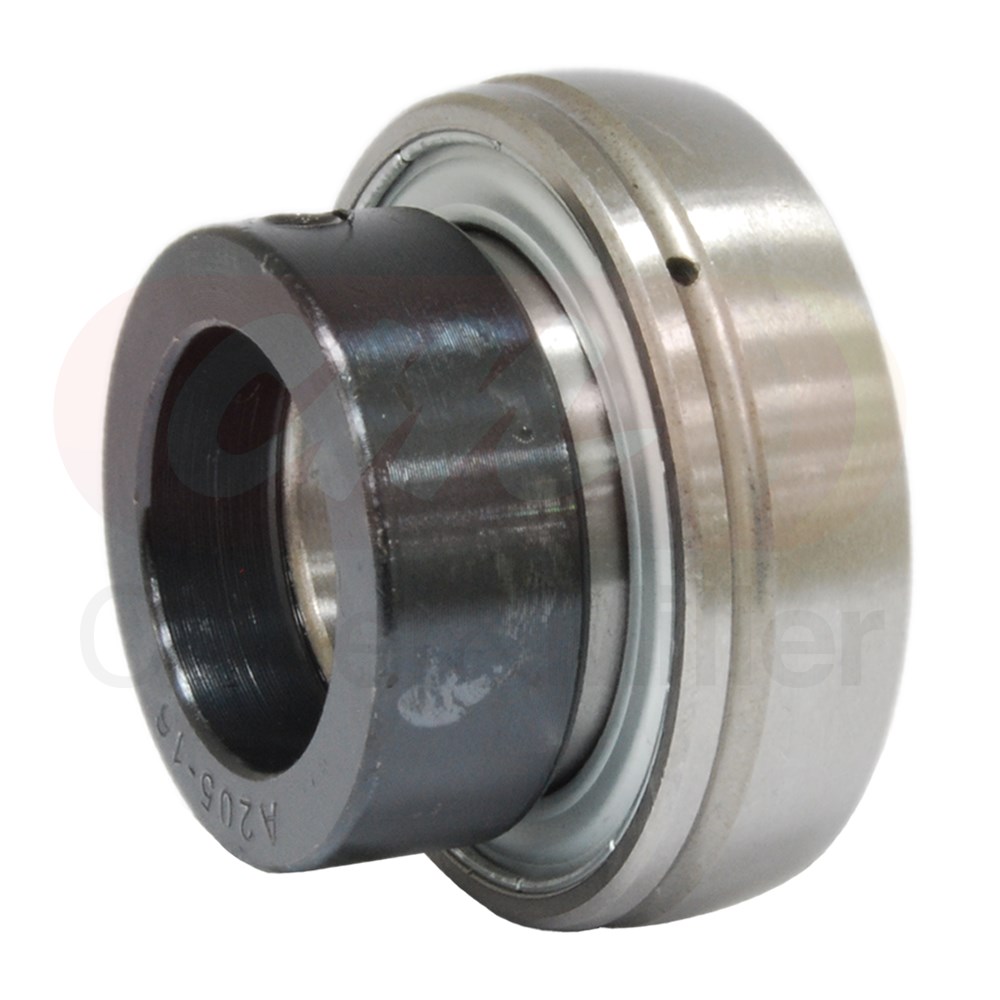

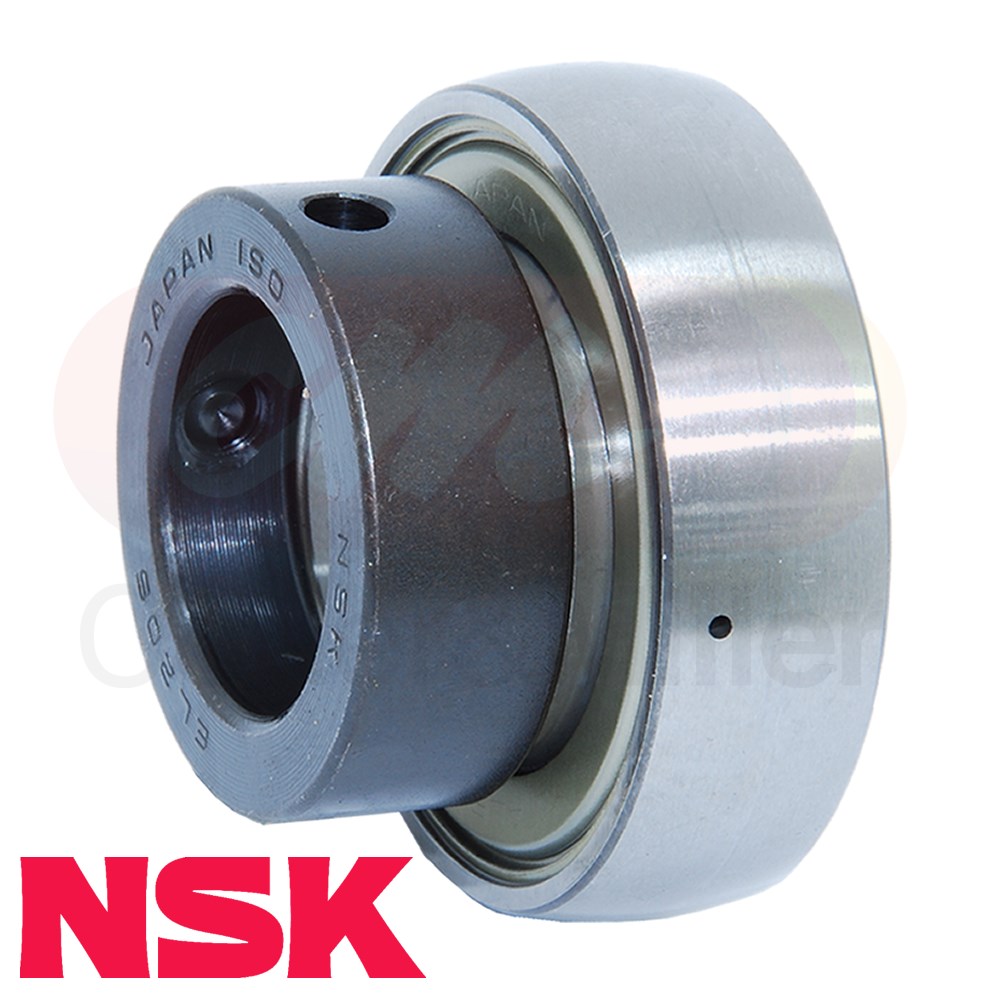

AEL2 Locking Collar Bearing - Narrow Inner Ring (1.000")


Self aligning bearing unit for use in a wide range of industrial, agricultural and food processing applications. The AEL series self aligning bearing is a maintenance free type and is pre-filled with a high quality lithiuum based grease.

Brands
  • Economy brands maybe NBR UBC
  • Premium brands maybe NSK NTN
Features
  • Cylindrical bore
  • Spherical outer Ring
  • Supplied with eccentric locking collar
  • Pre-greased with lithium complex grease & re-greasable
  • Steel re-inforced seal with integrated slinger
  • Positive seal lip to inner ring contact
Technical
TECNICAL DATA - NON BRAND SPECIFIC Imperial Metric
Bore Diameter 1.000" 25.4mm
Outside Diameter 2.0472" 52mm
Outer Ring Width 0.5906" 15mm
Inner Ring Width 0.8465" 21.50mm
Overall Width 1.2205" 31mm
Bore Type Cylindrical
Outer Ring Type Spherical
Max RPM 5900 RPM
Locking Device Eccentric Locking Collar
