Transmission Bearings

LOCKING COLLAR BEARING M40

ID=M40 OD=M80 W=M43.7 ECCENTRIC CYLINDRICAL NIR

Product Code: AELS208
From
  P.O.A. prices may differ on variants
EACH inc GST
Afterpay Logo
Buy now. Pay later. Interest-free.
Afterpay Logo
Available for orders between $0.04-$2,000.00
Afterpay Logo
Unavailable for this order
Afterpay Logo
4 payments of
In Stock Low Stock Contact Us Please See Attributes
Increase value Decrease value

  • Detail

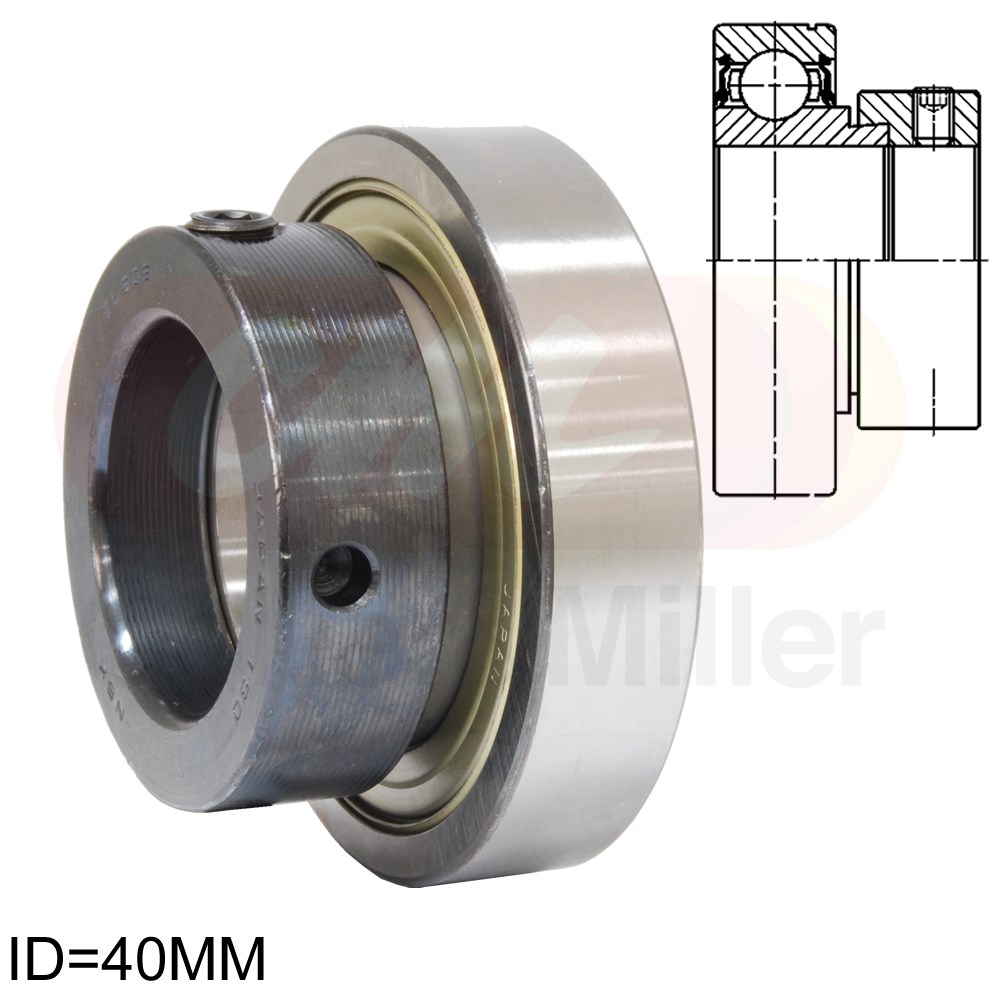

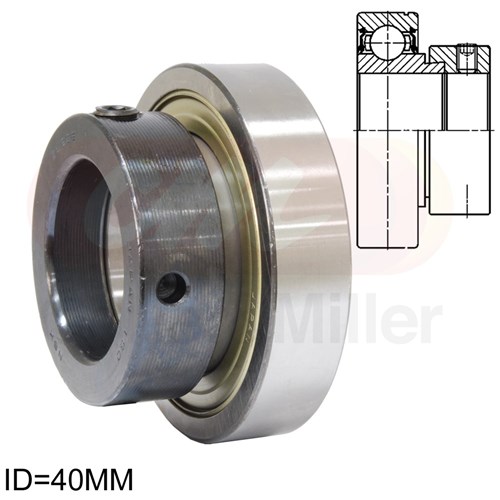

AELS2 Locking Collar Bearing - Narrow Inner Ring (40mm)


Self aligning bearing unit for use in a wide range of standard duty industrial, agricultural and food processing applications. The AELS2 series cylindrical outer bearing is supplied with an eccentric locking collar. Maintenance free, it is supplied pre-filled with a high quality lithium based grease and can be re-greased if required. Economy brands supplied maybe NBR or UBC.

Series
  • NBR - CSA
  • NSK - AELS2
  • NTN - AELS2
Features
  • Cylindrical bore
  • Cylindrical outer ring
  • Supplied with eccentric locking collar
  • Pre-greased with lithium complex grease & re-greasable
  • Steel re-inforced seal
  • Positive seal lip to inner ring contact
 Techical Data - Non Brand Specific Imperial Metric
Bore Diameter 40mm
Outside Diameter 3.1496" 80mm
Outer Ring Width 0.7087" 19.98mm
Inner Ring Width 1.1890" 30.20mm
Overall Width 1.7205" 43.70mm
Bore Type Cylindrical
Outer Ring Type Cylindrical
Max RPM 3700 RPM
Locking Device Eccentric Locking Collar
