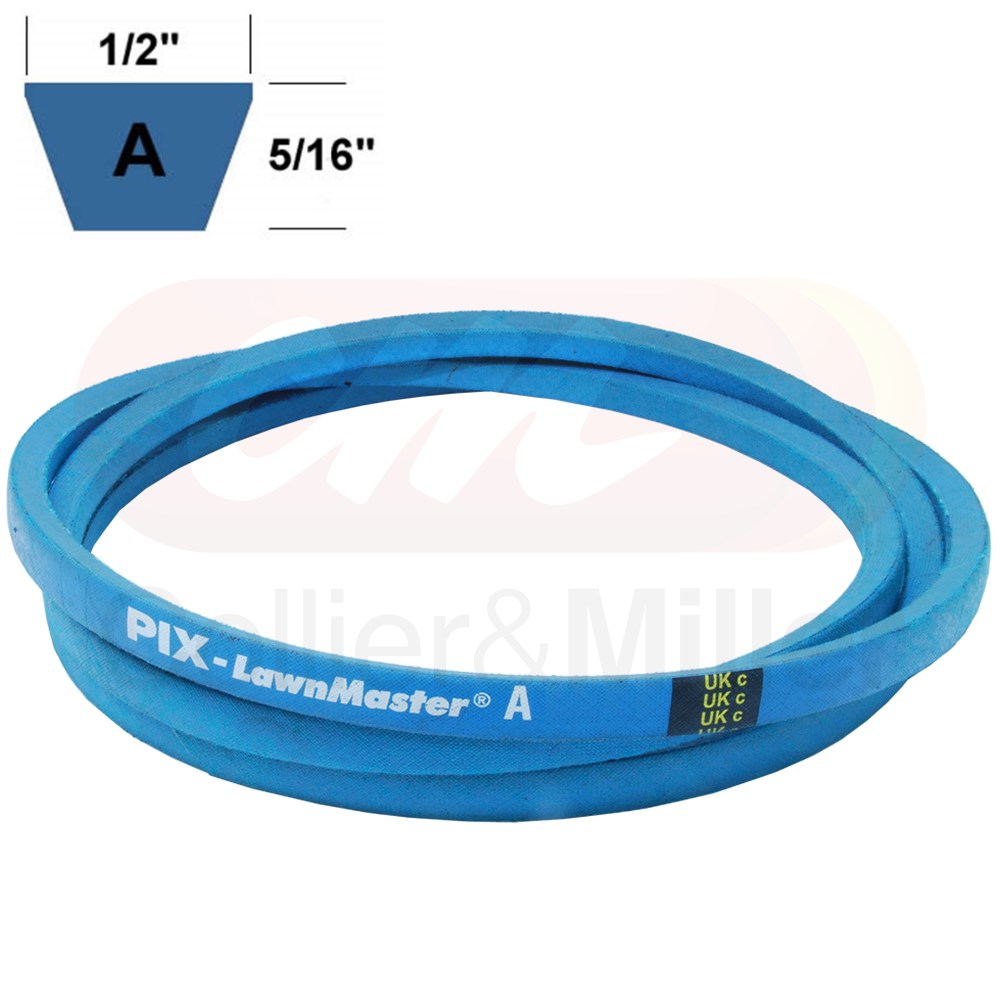

PIX Lawnmaster™ aramid corded, bare-back, wrap belt for use in lawn care and garden applications. Ideal for use on application where high shock loading and back idlers are present such as ride-on mowers. Able to withstand high levels of reverse flexing and manufactured with a special bare-fabric to facilitate smooth clutching operation during engagement and overload. The Lawnmaster™ series of PIX belts offer smooth operation and extended service life.
| Dimension |
Imperial (Inches) |
Metric (mm) |
| Nominal Top Width |
1/2" |
12.70 |
| Nominal cross-section |
5/16" |
7.93 |
| Length Internal (Li) |
Li=72" |
1828 |
Features
- Aramid cord offers high tensile strength, high resistance to shock loads and minimum elongation
- Specially designed bare fabric facilitates smooth clutching operation and high resistance to wear and tear
- Able to withstand high levels of reverse flexing
- Resistance to oil, heat and cracking
- Temperature range -18°C to +80°C
Construction
- Special insulation rubber compound offers superior adhesion
- Specially treated aramid cords for high tensile strength
- Fibre-loaded compression rubber base compound for enhanced power transmission
- Special bare-back outer cover for the smooth clutching operation
