GEARBOX 1.92:1 45HP @540RPM 1.3/8 X 6SPLINE SAE 90 OIL CAPACITY = 2.3L

1.3/8 X 6SPLINE SAE 90 OIL CAPACITY = 2.3L

Product Code: ALO1758

Detail
Downloads

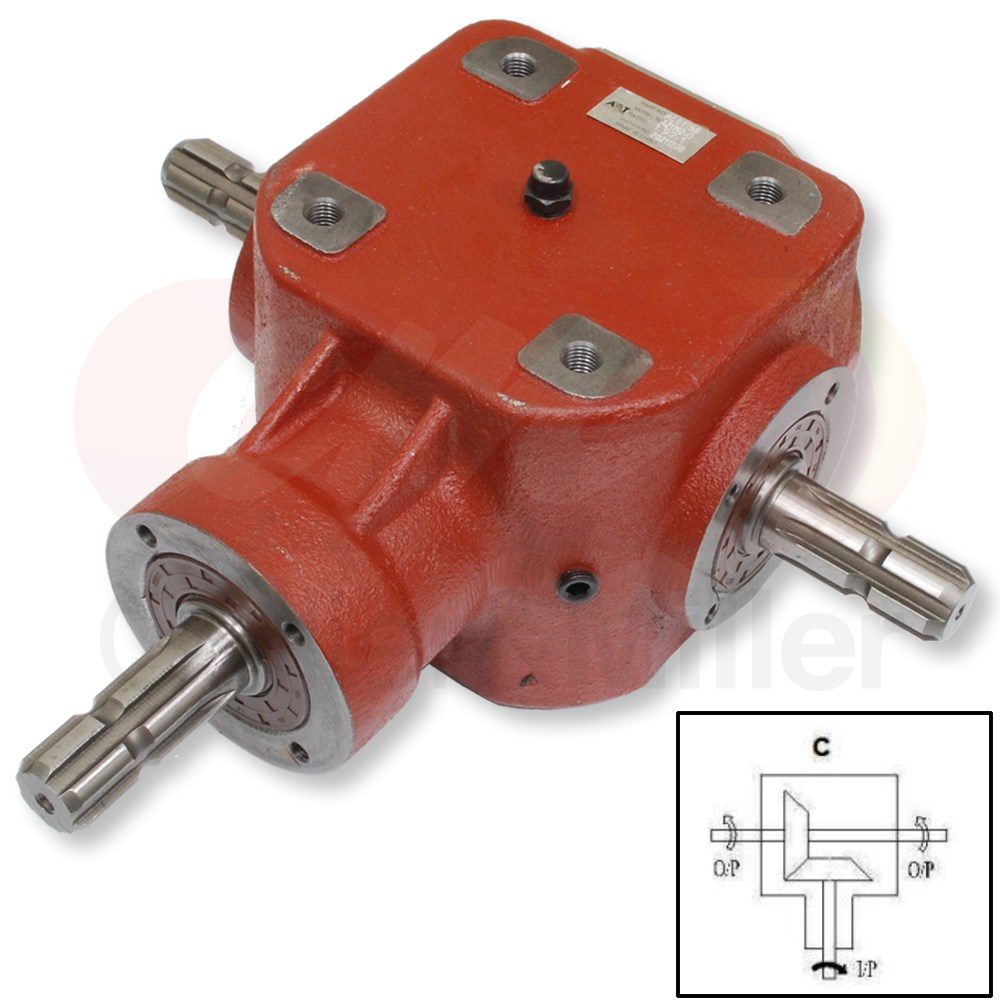

A21 General Purpose Gearbox (1.92:1 Ratio)

Sturdy SG iron housing gearbox with quality shaft and bearings for use in agricultural and industrial applications. This gearbox features standard agricultural 1-3/8" x Z6 spline input and output shafts for common 540 RPM agricultural applications.

Part Number

ALO1758 (A21)

Specifications
Ratio	1.92:1
Rated Input RPM	540 RPM	1000RPM
Rated Power	33Kw @ 540 RPM (44Hp)	50Kw @ 1000 RPM (68Hp)
Rated Torque	585Nm @ 540 RPM	478Nm @ 1000 RPM
Rotation	C	C
Shaft Type (Input & Output)	1-3/8" x Z6 Spline	1-3/8" x Z6 Spline
Oil	SAE90EP (2.3l Approx)

Geabox supplied with no oil
You must fill gearbox wityh recommended type and capacity before operation
