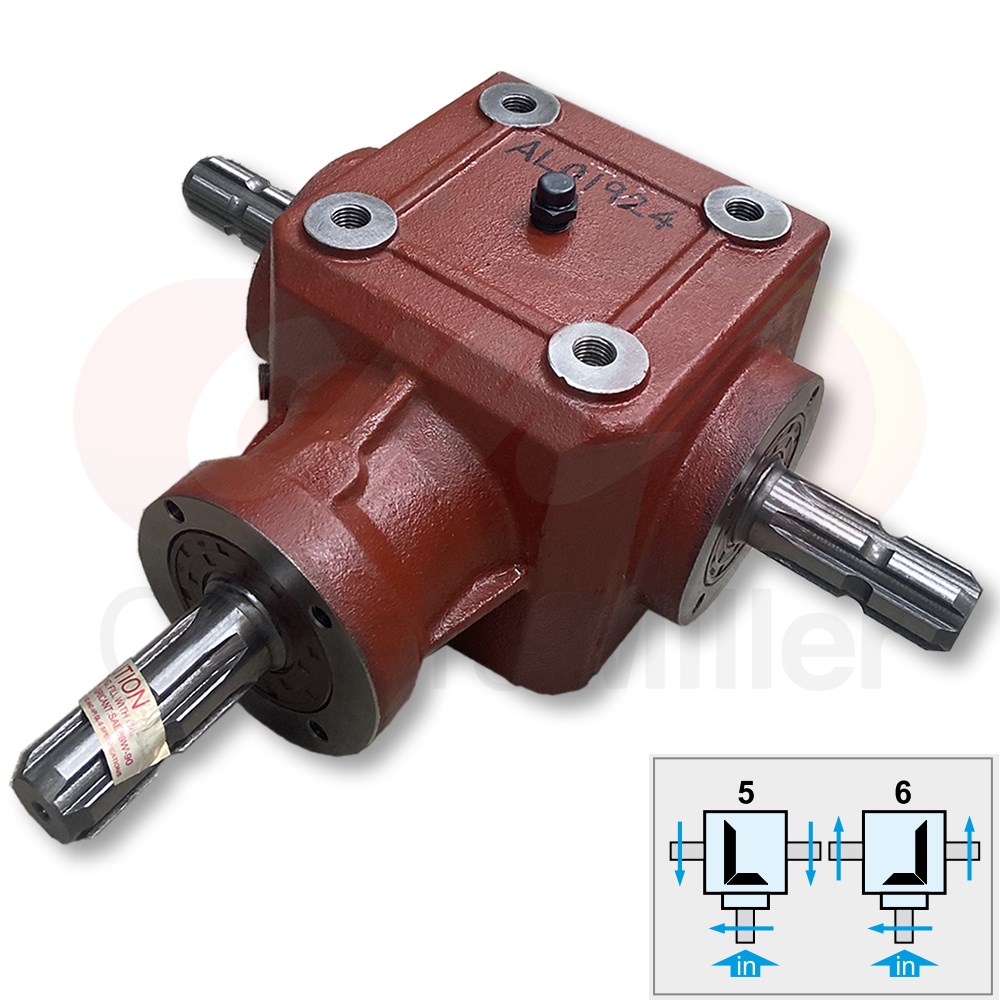

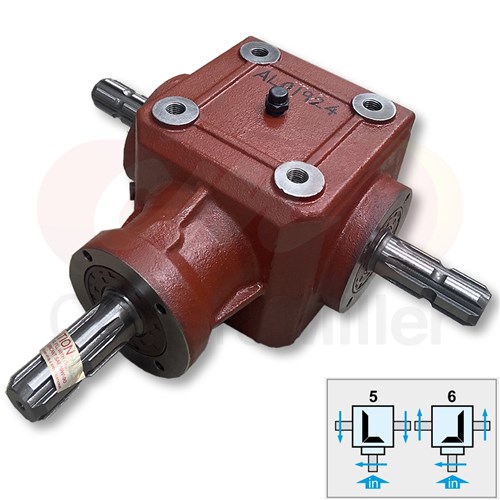

GEARBOX 1:1 90HP 1-3/8X6 SHAFT

AGRICULTURAL (SAE 90 - 1.8LTR)

Product Code: ALO1924
$900.00
Per EACH inc GST
Afterpay Logo
4 payments of $225.00
In Stock Low Stock Out Of Stock Please See Attributes 2
Increase value Decrease value



  • Product Detail
  • Downloads

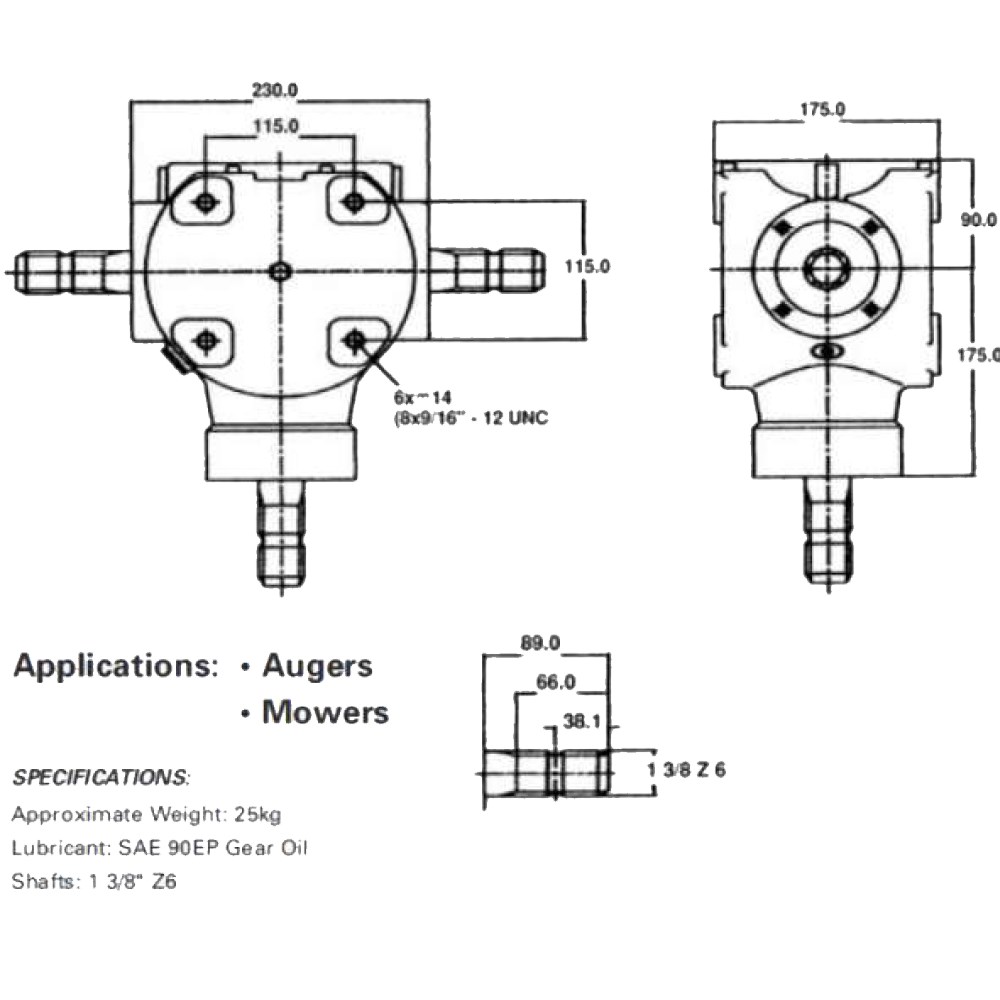

SD 11 Series Gearbox for general applications. Commonly used in agricultural applications such as auger bins , augers and mowers where 1-3/8" Z6 Spline shafts are required. This gearbox is chinese origin of manufacture.

Specifications
Ratio 1:1
Rated Input Speed 540 RPM 1000 RPM
Rated Power  67Kw @ 540 RPM (90 Hp) 100Kw @ 1000 RPM (135 Hp)
Rated Torque 1171 Nm @ 540PRM 948 Nm @ 1000 RPM
Shaft Type 1-3/8" Z6 Spline
Oil SAE90EP
  •  Gearbox is supplied with no oil
  • You must fill gearbox with recommended type and capacity before operation
