Sleeves, Nuts & Washers

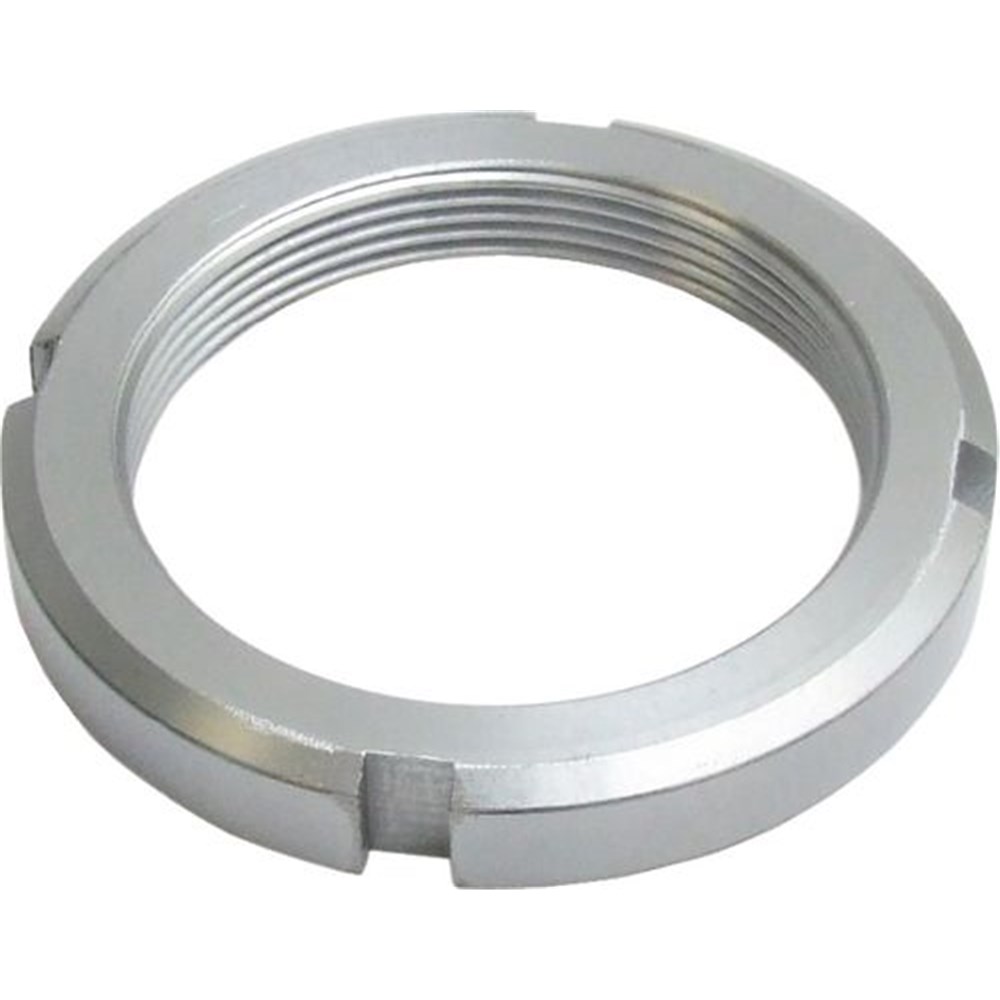

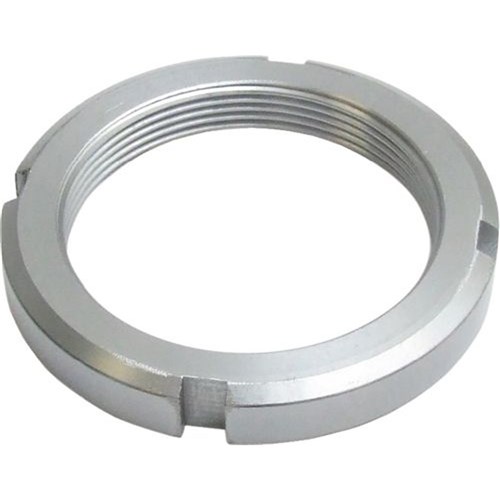

FSQ BEARING LOCKNUT KM-11

M55XM2.0

Product Code: AN11X2
  $8.80
EACH inc GST
Afterpay Logo
4 payments of $2.20
In Stock Low Stock Contact Us Please See Attributes 40
Increase value Decrease value

  • Detail
  • Downloads
The KM-11 Lock Nut is used in conjuction with the realvant tapered sleeve for locating bearings onto a shaft. They have metric threads and four equally spaced slots located around their circumference to accommodate a 'C' spanner. They should be locked by a lock washer to prevent unintentional loosening. KM-11 Lock Nut can be reused, provided they are not damaged.

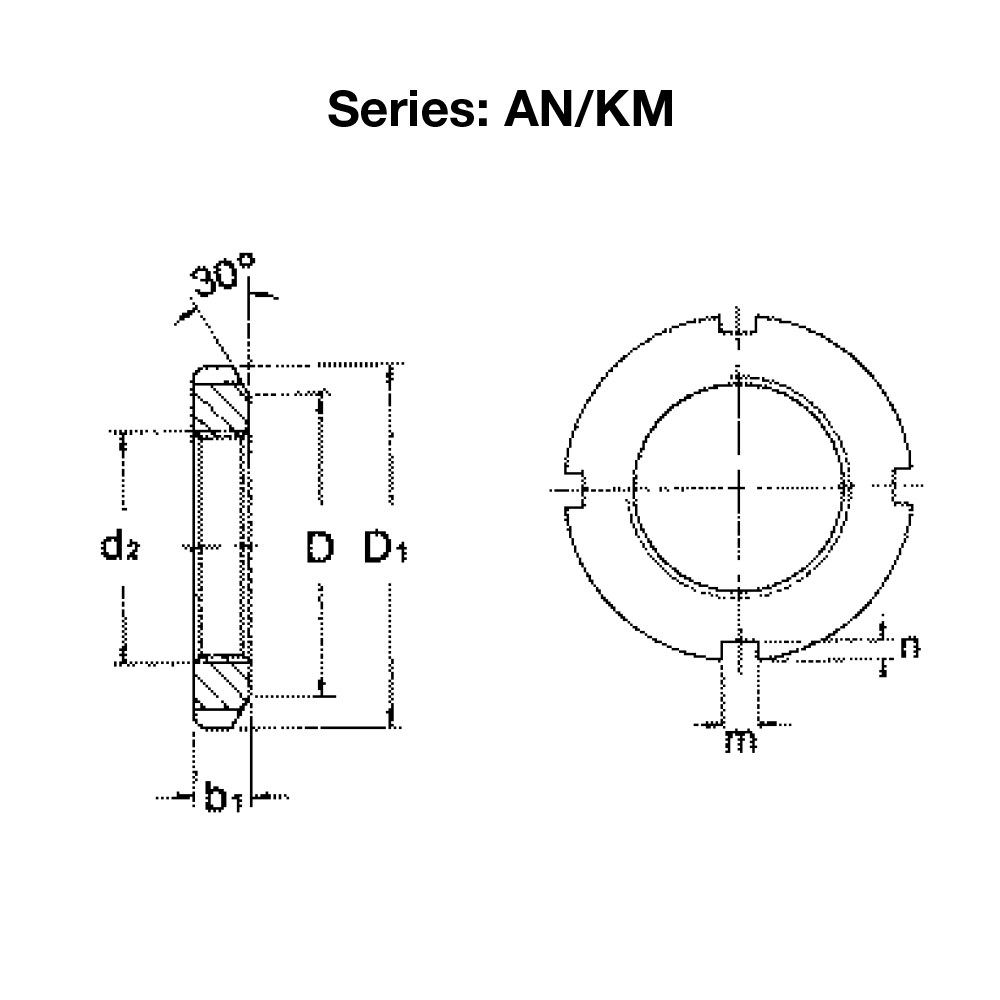

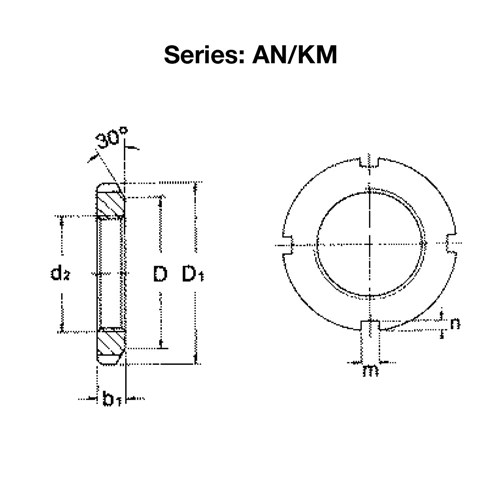

Location Dimensions Description
D M67 Diameter Locating Side Face
D1 M75 Outside Diameter
d2 M55x2.0 Thread
b1 M11 Width
m M7 Width Locating Slot
n M3 Depth Locating Slot
Features:
  • Simple, stable and reliable fastening element
  • Easy to install and remove
  • Reusable with a new lock washer
