1.000" PIN

Product Code: AR253114

Detail

Quality cast steel hydraulic cylinder clevis yoke. Threaded to fit the rod end on agricultural hydraulic cylinders.

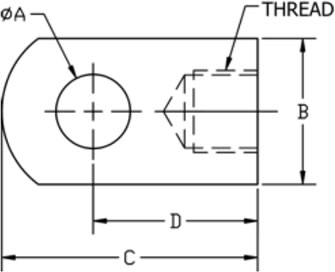

PART NO.	A	B	C	D	THREAD
AR251	1.00"	2.55"	4.50"	3.50"	1"-12 UNF
AR252	1.00"	2.55"	4.92"	3.50"	1-1/8"-12 UNF
AR253	1.00"	2.80"	4.92"	3.50"	1-1/4" -12 UNF
AR253114	1.25"	2.80"	4.92"	3.50"	1-1/4"- 12 UNF
CMEC112C	1.00"	2.94"	4.72"	3.50"	1-1/2" -12 UNF
CMEC112C114	1.25"	2.94"	4.68"	3.50"	1-1/2" -12 UNF
GS150	0.50"	1.56"	2.50"	2.00"	9/16" -18 UNF

* All measurements are nominal
# Nordon specific yoke - Dimension D is not to ASEA standard
