Slasher Gearbox 40Hp (Ration Increase 1:1.193)
Bare Co. slasher gearboxes are suited for a wide range of standard agricultural slashers. When installing gearbox in severe application reduce rated input Hp by 40%.

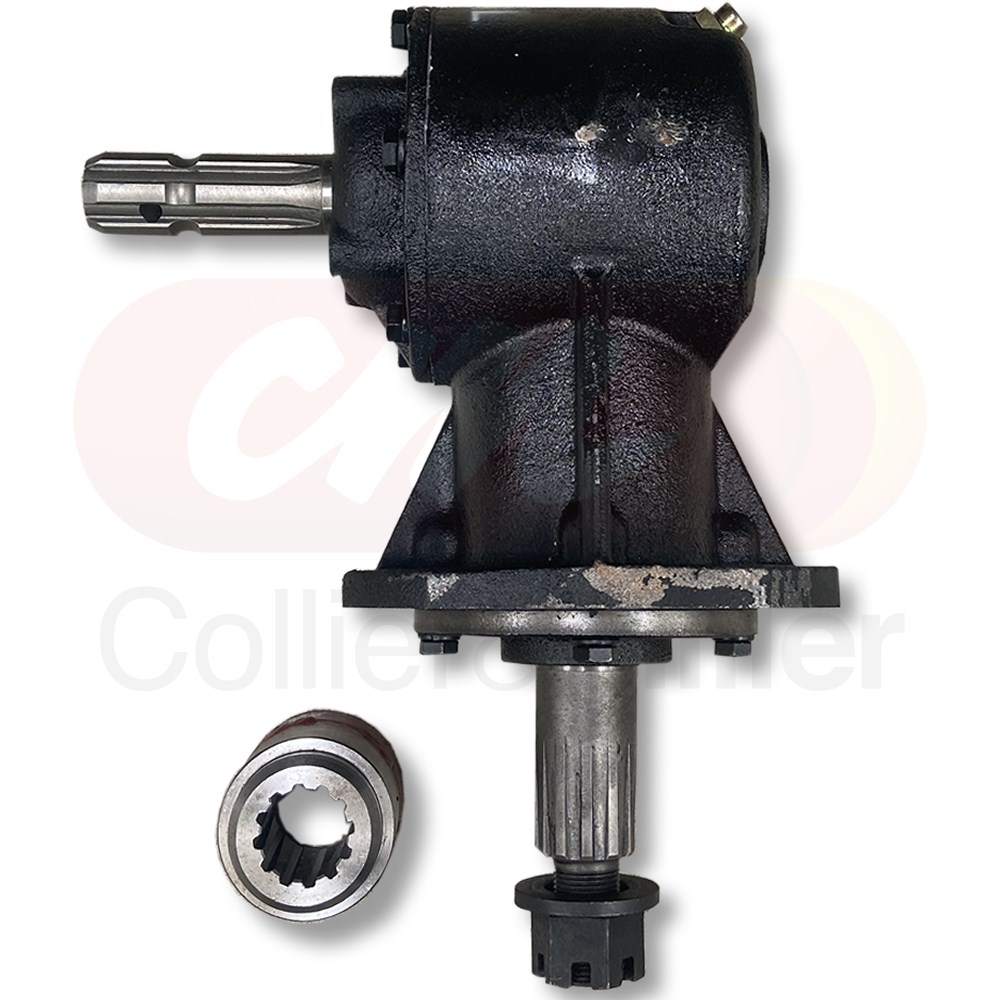

Model B2666, 40Hp slasher gearbox. Commonly used in agricultural applications such as slashers these slasher gearboxs are manufactured from a nodular cast-iron.
| Specifications |
|
| Model |
B2666 |
| Ratio |
1:1.93 |
| Rotation |
Clockwise In / Anti-Clockwise Out |
| Rated Input Speed |
540 RPM |
| Rated Power |
40 Hp @ 540 RPM |
| Seals |
Triple Lipped Spring Loaded |
| Input Shaft |
1-3/8" x Z6 Spline |
| Outpit Shaft |
Spline with weld-hub. Slotted 1" x 14 Tpi |
| Oil |
EP140 770ml |
| Bearings |
Cup & Cone |
- Reduce HP rating by 40% for severe applications
- Increase HP rating by 60% for 1000 RPM input speed
- Gearbox is supplied with no oil
- You must fill gearbox with recommended type and capacity before operation
- Use EP140 oil
