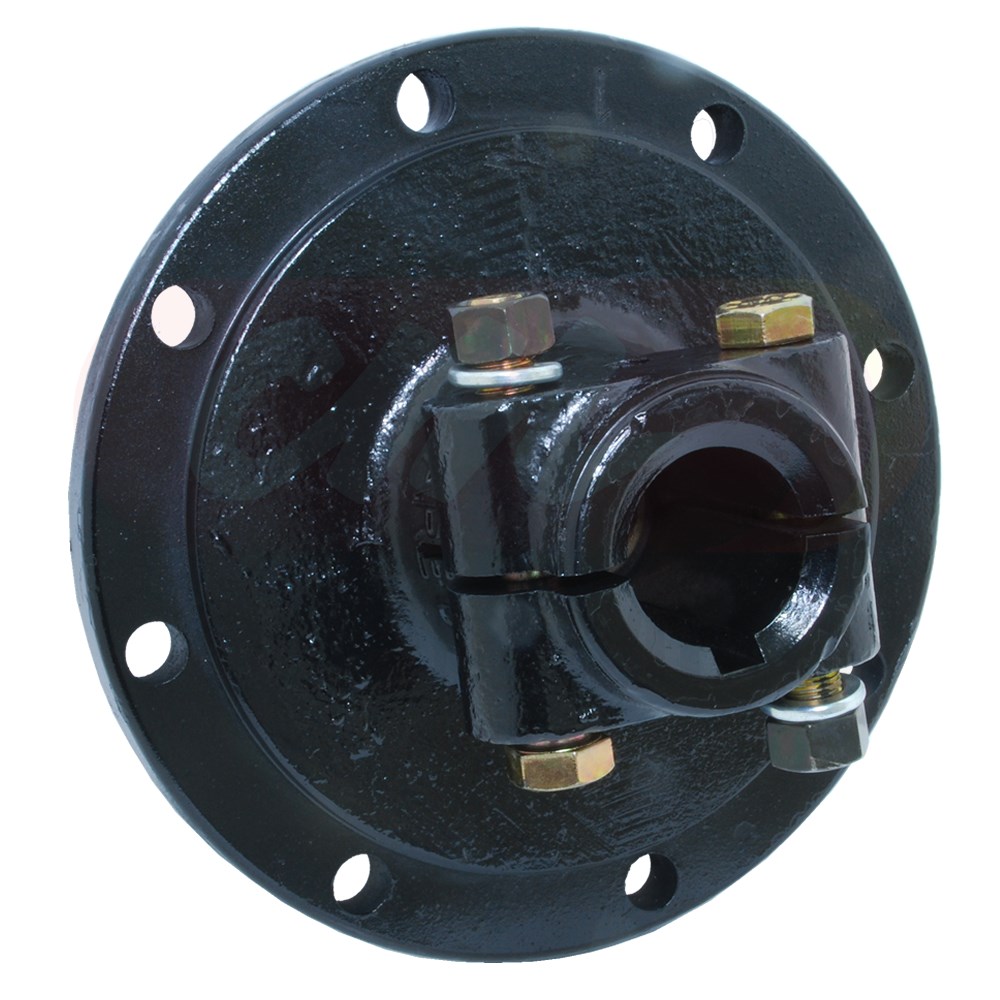

Friction clutch base assembly to fit all common Bare Co. 8" diameter friction clutches. Supplied ready to assemble this part is fitted with the bronze bush ready to accept the drive plate spigot.
Specifications
- Fits all 8" Bare Co. friction clutches
- Diameter = 8"
- Bolt holes = 8 x 13mm (accepts 1/2" diameter bolts)
- 1-1/2" Bore x 3/8" key female
- Double Clamp Bolt
PTO SHAFT SLIDING DRIVE TUBES
* Drive tubes MUST be greased every 20 hours. Excessive end thrust due to lack of grease will shear clamping bolts.
