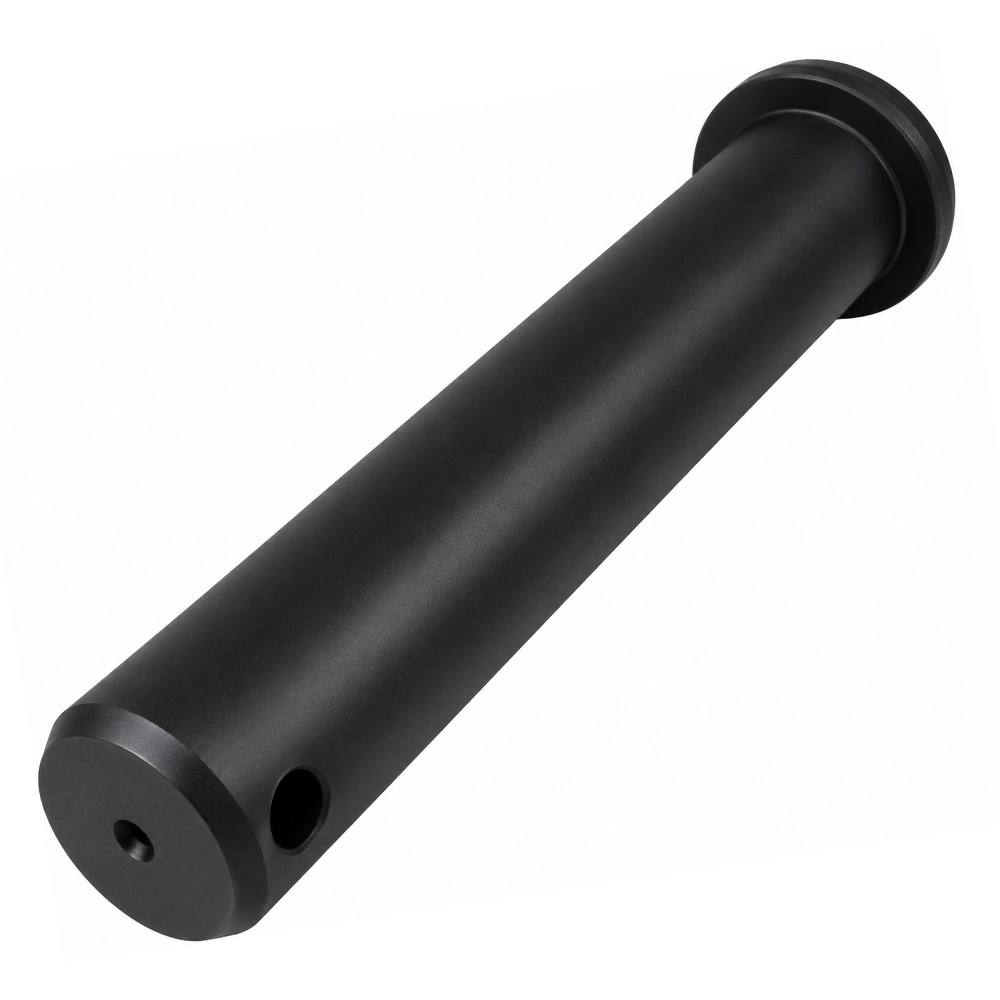

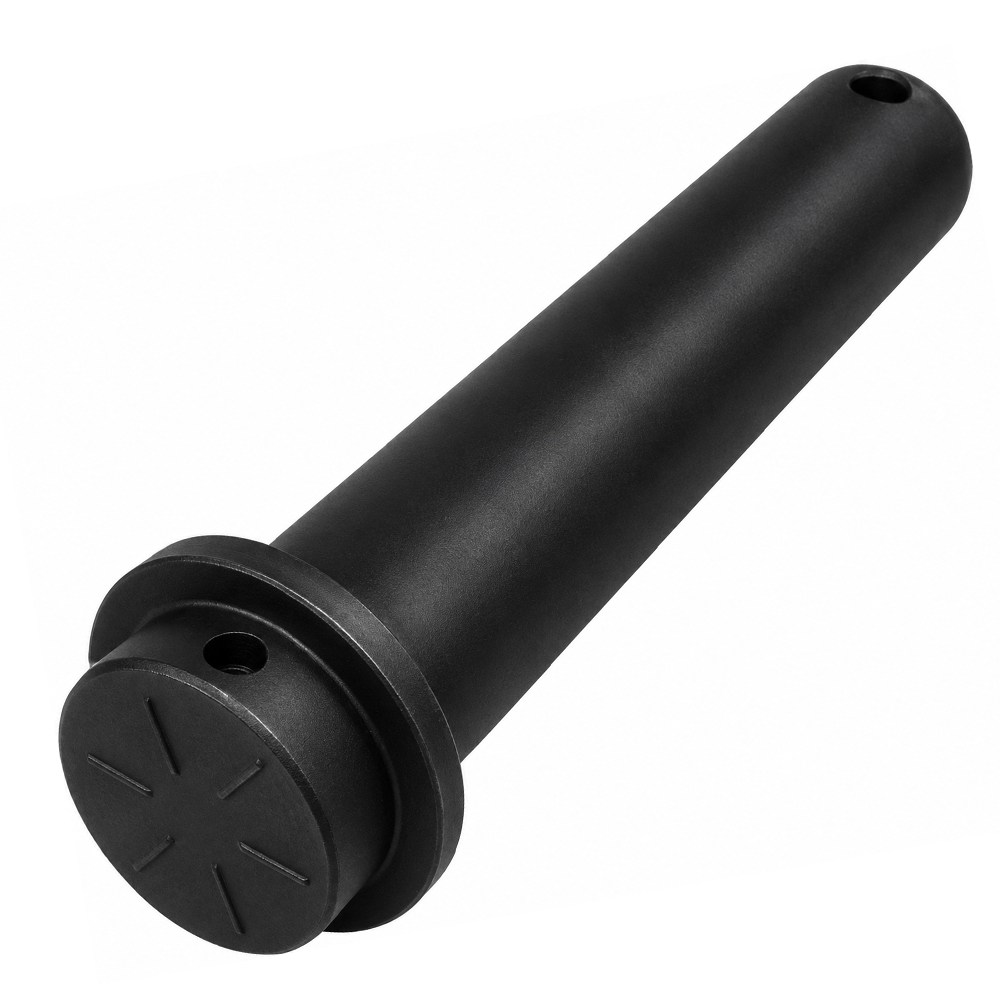

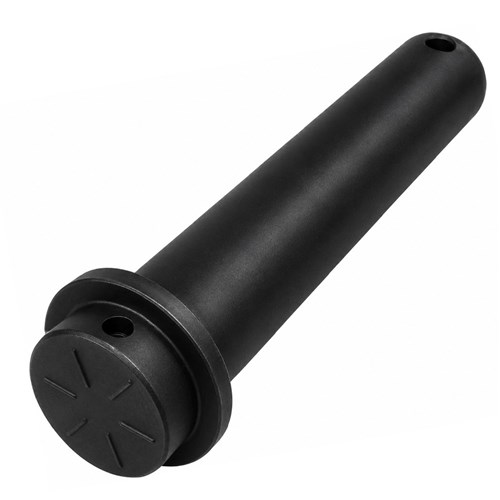

Category 4 Top Link Pin – Grade 8 High Tensile 45mm × 235mm (B6593)
Restore the strength and reliability of your tractor's three-point linkage with the Category 4 Top Link Pin B6593. Manufactured from Grade 8 high tensile steel, this heavy-duty replacement pin is designed for Category 4 top link applications and provides a secure connection between the tractor and implement when operating under high draft and heavy load conditions.
Featuring a 45mm diameter and an overall length of 235mm, this precision-manufactured top link pin delivers an accurate fit for Category 4 linkage systems. Designed to withstand the demanding conditions encountered in broadacre farming, it is ideal for deep ripping, cultivation, seeding, transport and other heavy-duty agricultural applications.
Part Number
Key Features
- Heavy-duty Category 4 top link pin.
- Manufactured from Grade 8 high tensile steel.
- Precision-machined for accurate fit.
- 45mm Category 4 pin diameter.
- 235mm overall length.
- Suitable for high-horsepower tractors and heavy agricultural implements.
- Designed for demanding agricultural applications.
- Direct replacement for worn or damaged top link pins.
Technical Specifications
- Part Number: B6593
- Linkage Category: Category 4
- Pin Diameter: 45mm
- Overall Length: 235mm
- Material: Grade 8 High Tensile Steel
- Application: Tractor top link pin
Compatibility
Suitable for tractors and agricultural implements fitted with Category 4 three-point linkage systems requiring a 45mm top link pin. Commonly used on large high-horsepower tractors operating deep rippers, air seeders, heavy cultivators, offset discs, transport equipment and other heavy-duty implements.
Benefits of Replacing Worn Top Link Pins
Worn or damaged top link pins can introduce excessive movement into the hitch assembly, accelerating wear on linkage components and reducing implement stability. Replacing worn pins helps restore a secure connection, improves implement control and contributes to safer operation in both field and transport conditions.
Installation Tip
Inspect the top link ball, retaining hardware and implement mounting points before installation. Replacing worn linkage components together will maximise service life and maintain correct hitch alignment.
The C&M Difference
Collier & Miller supplies a comprehensive range of premium tractor linkage components for professional agricultural applications. Our heavy-duty replacement parts are manufactured to deliver dependable fit, exceptional durability and reliable performance in Australia's toughest farming conditions.
