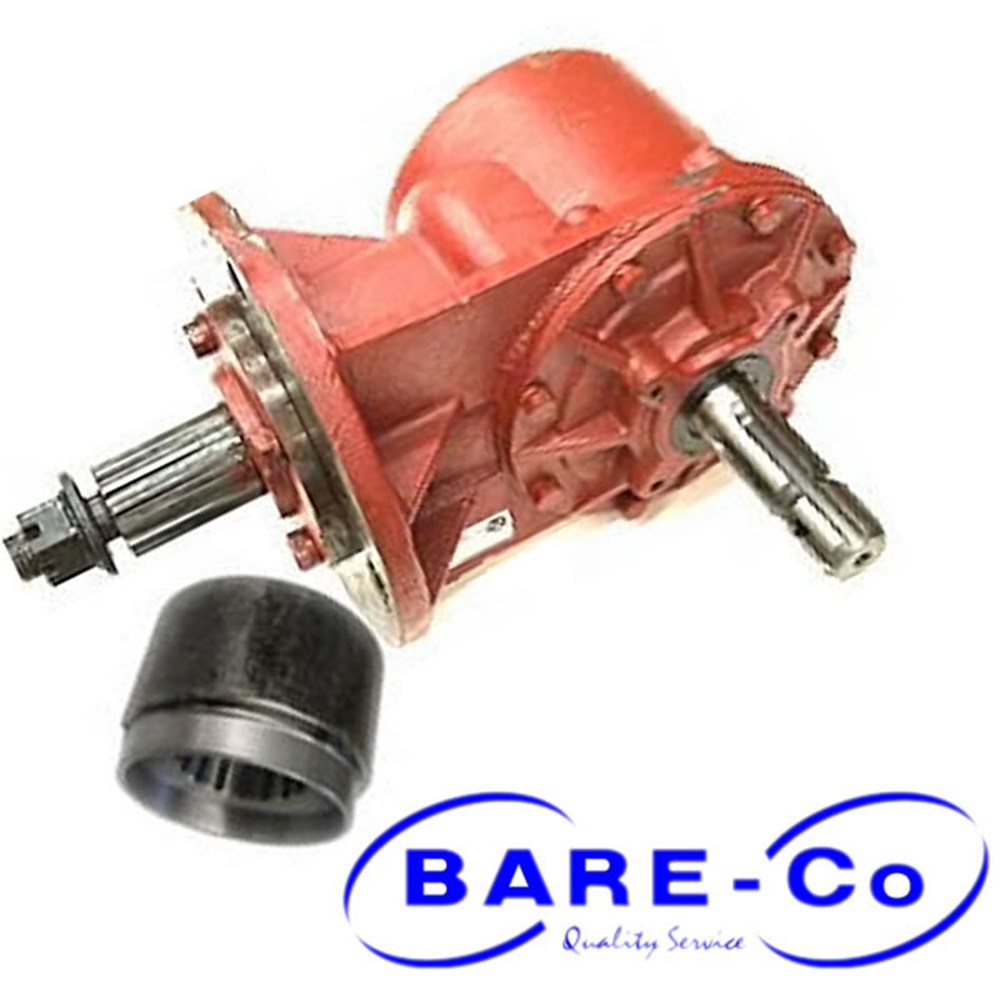

Slasher Gearbox 70Hp (Ratio Increase 1: 1.46)
Bare Co. slasher gearboxes are suited for a wide range of standard agricultural slashers. When installing gearbox in severe application reduce rated input Hp by 40%.
Model B2666, 40Hp slasher gearbox. Commonly used in agricultural applications such as slashers these slasher gearboxs are manufactured from a nodular cast-iron.
| Specifications |
|
| Model |
B6667 |
| Ratio |
1:1.46 (Increases Speed) |
| Rated Input RPM |
540 RPM |
| Rated Input HP |
52Kw @ 540 RPM (70Hp) |
| Seals |
Triple Lipped Spring Loaded |
| Input Shaft |
1-3/8" x Z6 Spline |
| Outpit Shaft |
Spline with weld-hub. Slotted 1" x 14 Tpi |
| Oil |
EP140 |
| Bearings |
Cup & Cone |
- Reduce HP rating by 40% for severe applications
- Increase HP rating by 60% for 1000 RPM input speed
- Gearbox is supplied with no oil
- You must fill gearbox with recommended type and capacity before operation
- Use EP140 oil
