Chain & Lever Blocks

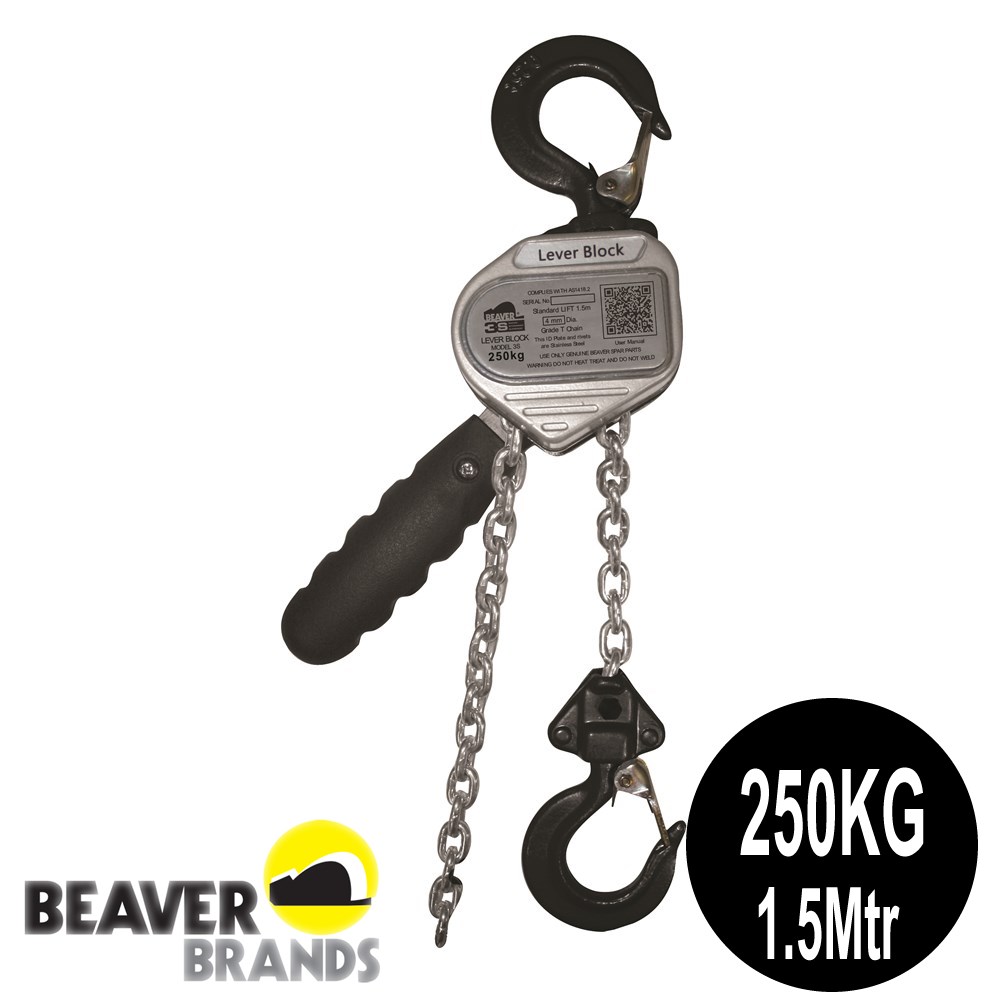

LEVER BLOCK 250KG SILVER

Product Code: BE506025
$181.50
Per EACH inc GST
Afterpay Logo
4 payments of $45.38
In Stock Low Stock Out Of Stock Please See Attributes 7
Increase value Decrease value



  • Product Detail
  • Downloads
General Purpose

Beaver 250Kg and 500Kg 3S Lever Block are designed for small to medium size lifting and pulling applications. The design combines strength and compact design into one, to provide a high quality and versatile Lever Block. The load chain is made of high resistance Grade 80 zinc plated finish, calibrated and marked according to ISO 3077 and ISO 1834

Product Code Rated Capacity Colour Code Standard Lift Testing Load Effort on lever to lift full load No. load chain falls Load chain diamter
BE506025 .25t Grey 1.5m 4.9kN 210N 1 4mm
BE506050 .50t Grey 1.5m 9.8kN 320N 1 4mm

Every Beaver 3S industrial level block is operationally tested to its rated capacity and is supplied with a test certificate, relating to its stamped identification side plate. This lever block complies to AS 1418.2 and approved Colour Coded to Match International Lifting Standard.

For technical drawings of these lever blocks, please see the linked data.
