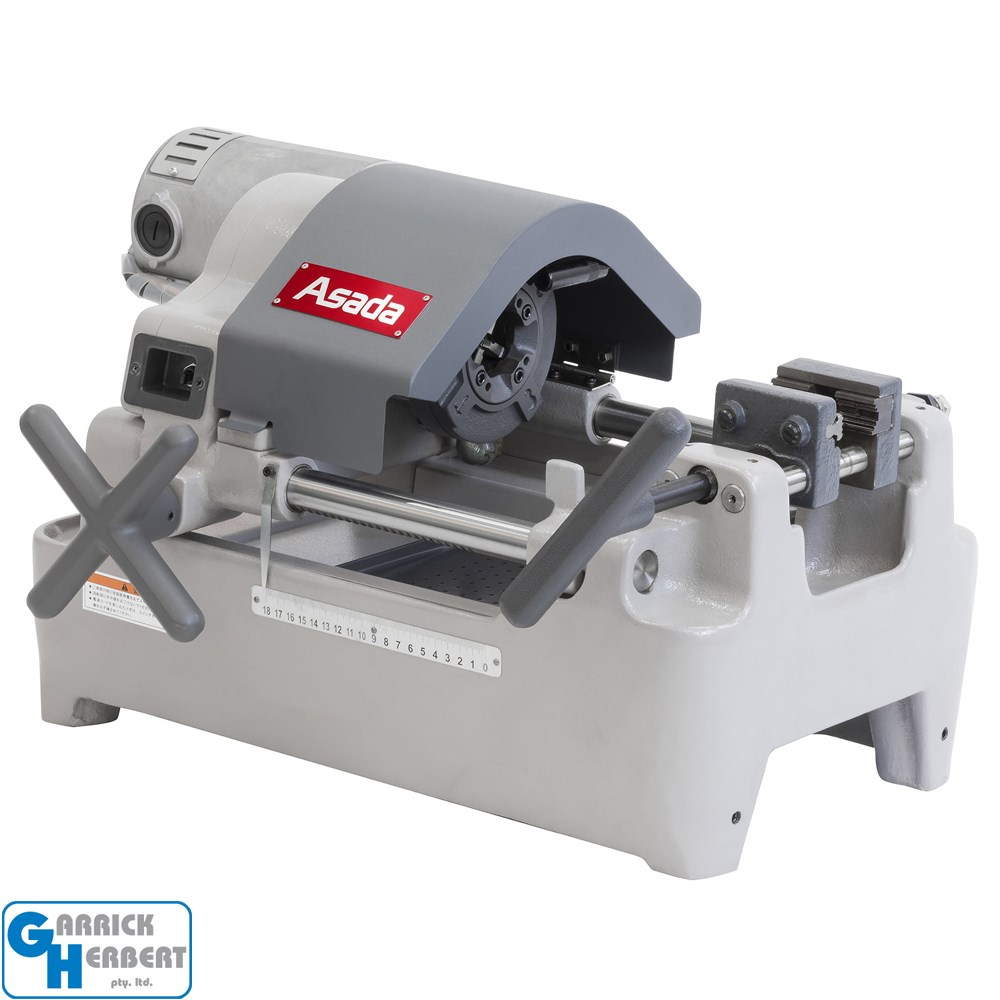

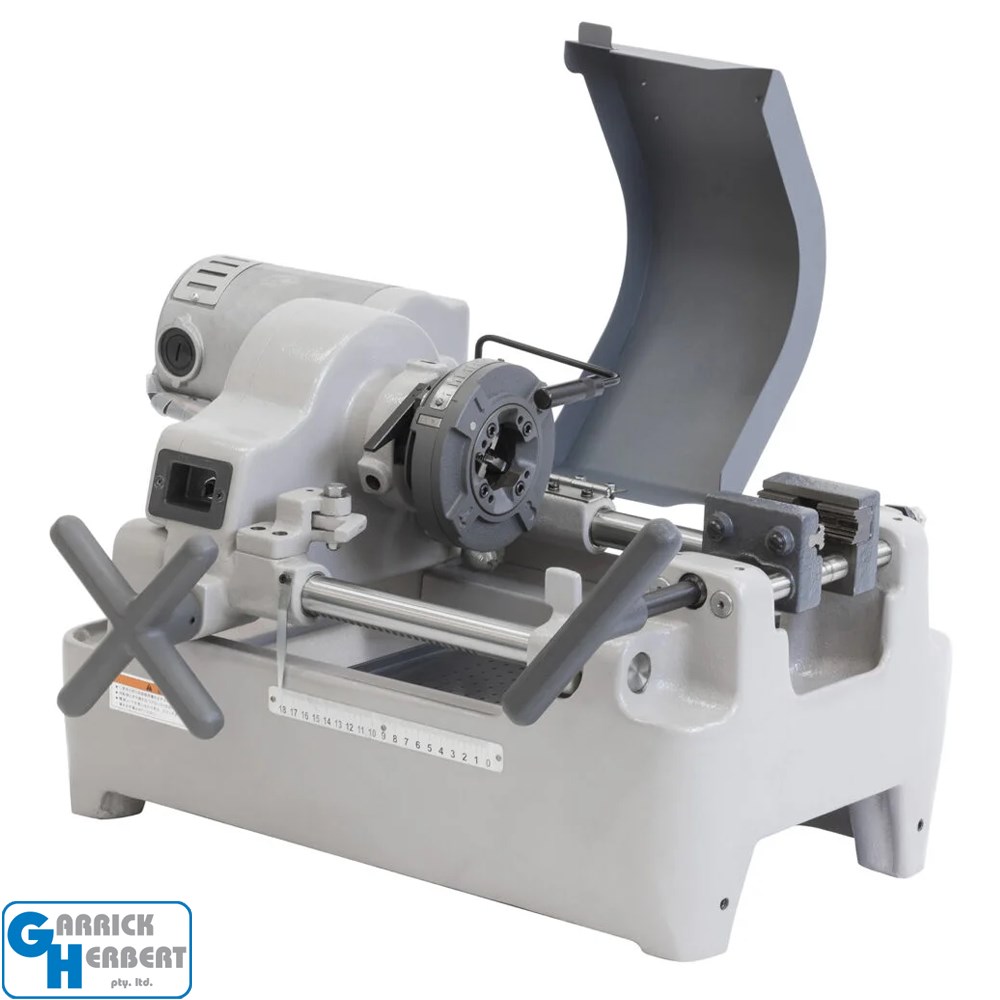

Garrick Herbert ASADA Bolt Threading Machine
The Garrick Herbert ASADA Bolt Threading Machine is a dedicated tool designed specifically for threading bolts and rods with precision and efficiency. It features a faster spindle speed than traditional pipe threading machines, making it ideal for high-speed threading operations. The machine holds the rod securely in a vice, allowing for the threading of long lengths or bent materials with ease. Designed for right-hand threading, a separate machine for left-hand threading is also available. With a standard thread capacity of 8-24mm and a 1.5HP motor, this machine delivers reliable performance at a spindle speed of 80rpm (no load). It comes standard with M12 and M14 – M16 dies, with additional sizes such as M8 – M24, BSW, UNC, and UNF available.
Features
- Thread Capacity: 8-24mm (standard), M8 – M24, BSW, UNC, UNF (optional)
- Motor: 1140W (1.5HP)
- Spindle Speed: 80rpm (no load) for faster threading
- Rod Holding: Secure vice to thread long or bent materials
- Threading Type: Right-hand threading
- Standard Dies: M12, M14 – M16 (with other sizes available)
NOTE: This product is available exclusively online and ships directly from the supplier's warehouse
