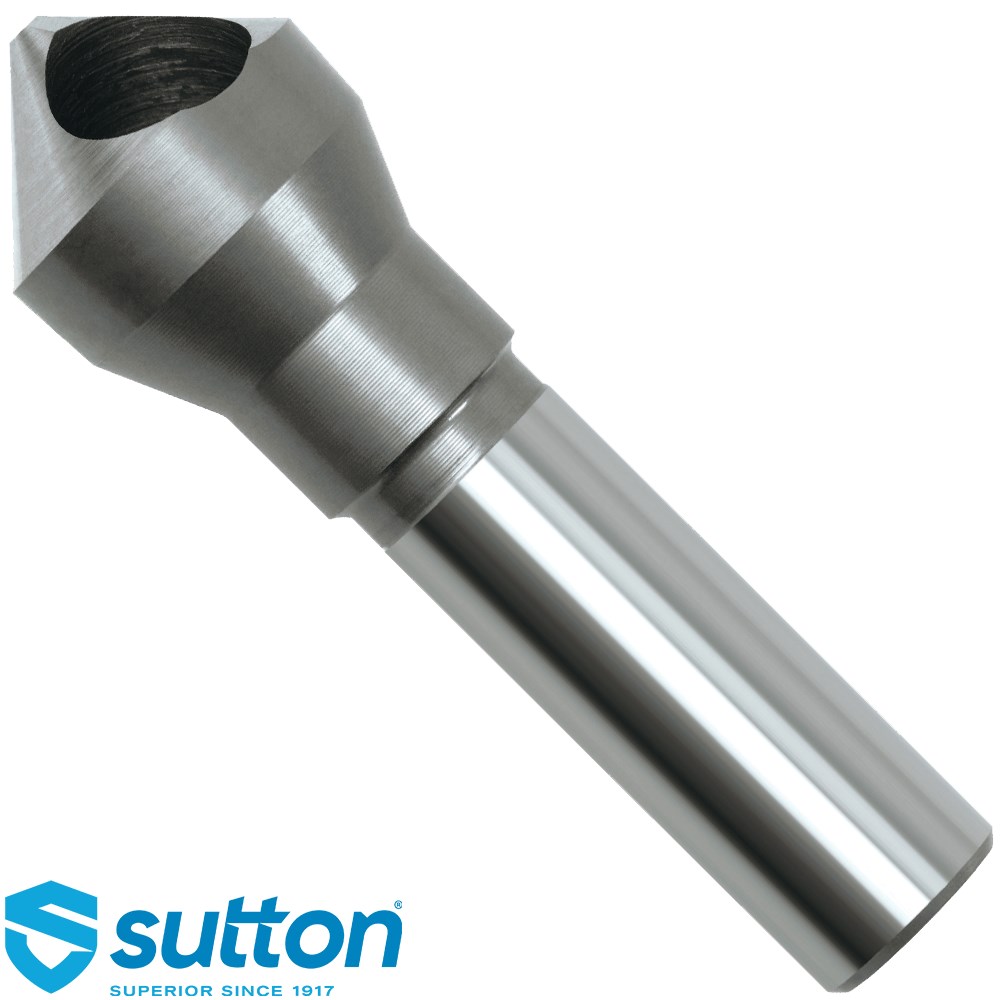

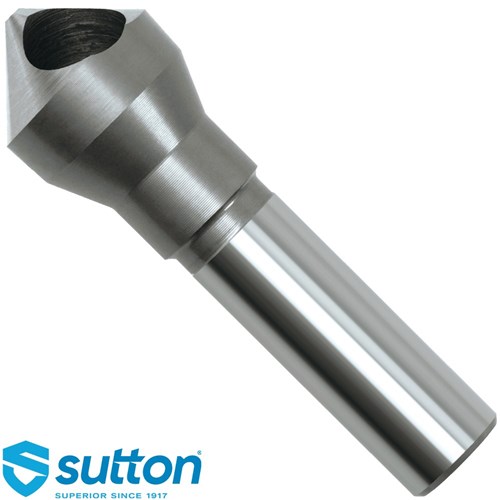

Sutton Deburring Countersink Bit – 90° Cross Hole

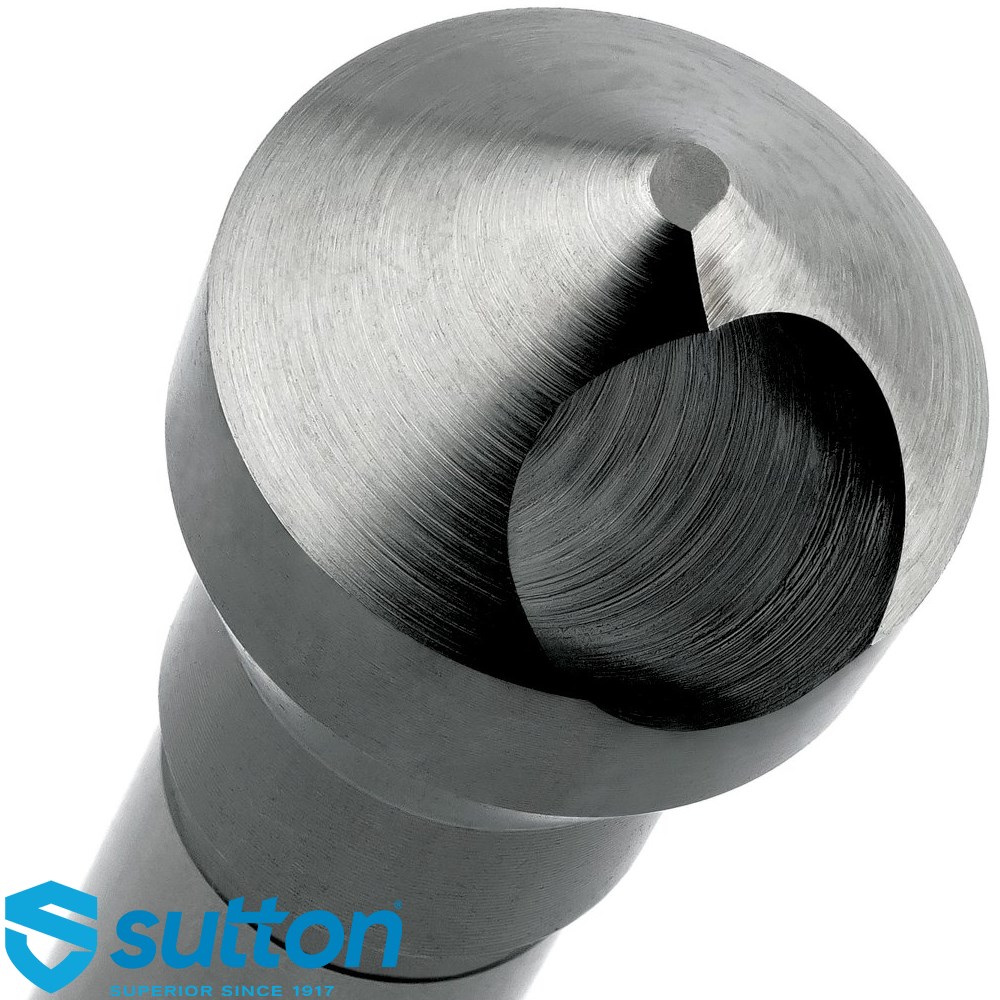

A deburring countersink bit with a 90° cross hole is typically used for removing burrs and sharp edges from drilled or machined holes. The deburring process is crucial in manufacturing to ensure that the edges of holes are smooth and free from any imperfections. The 90° cross hole in the bit allows for additional functionality, as it can be used to create a countersink or chamfer around the hole.
|

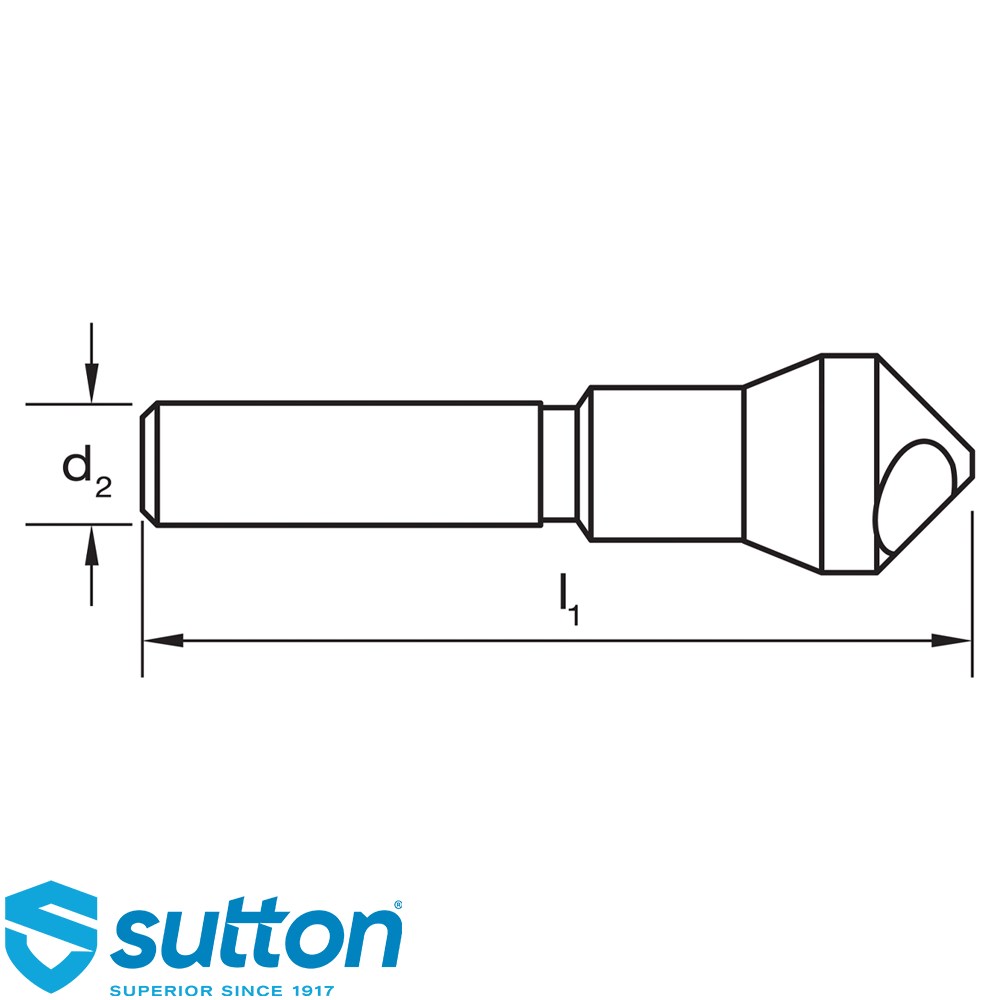

Part Number
|
Diameter (D1) mm
|
Diameter (D2) inch
|
Length (L1) mm
|
Range
|
|
C1010901
|
6
|
1/4
|
45
|
3 - 6
|
|
C1010902
|
10
|
1/4
|
43
|
4 - 10
|
|
C1010903
|
13
|
1/4
|
48
|
5 - 13
|
|
C1010904
|
20
|
1/2
|
67
|
8 - 20
|
|
C1010905
|
28
|
1/2
|
72
|
14 - 28
|
|
C1010906
|
37
|
1/2
|
89
|
13 - 37
|
