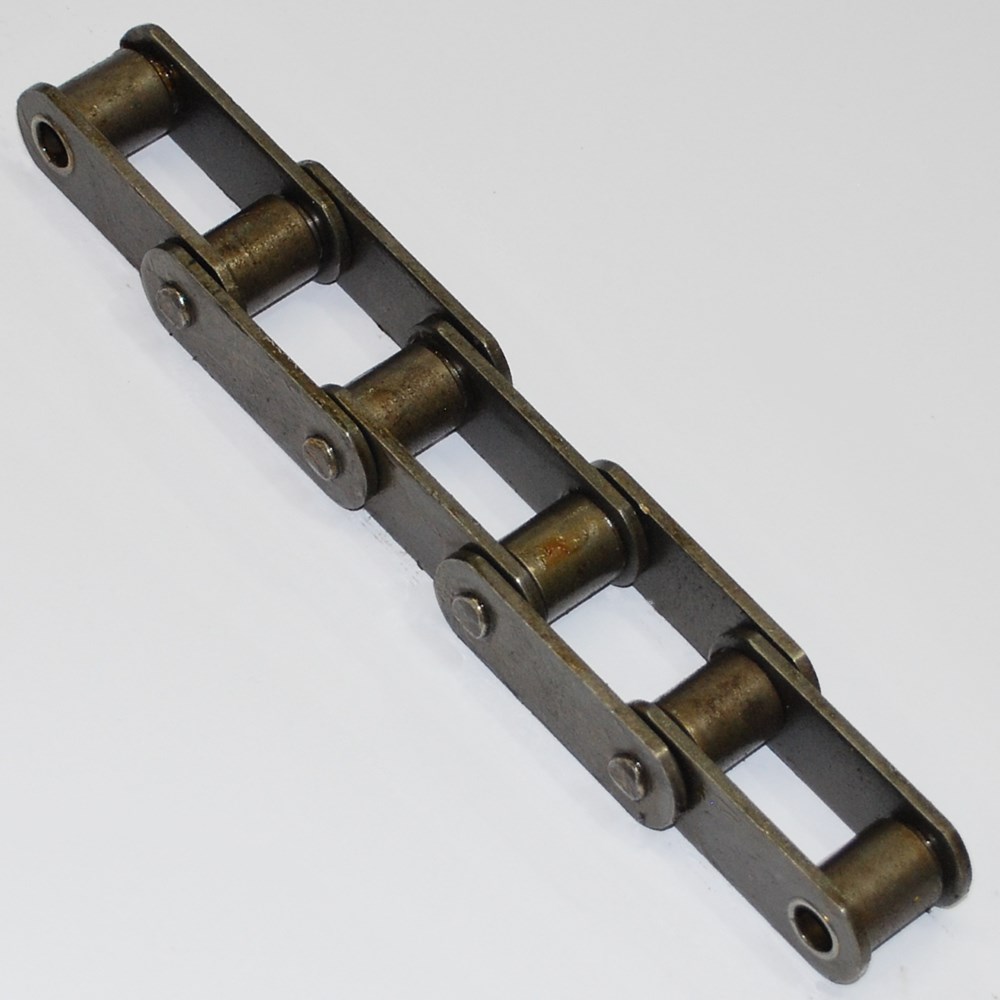

CA512 agricultural conveyor chain is a 38.4mm pitch popular chain used on european agricultural industry. We supply this product as an premium chain suitable for a wide variety of applications. The primary brand supplied is TIMKEN, however this may be substituted by an equivalent brand depending on availability. If brand is critical please contact us to confirm the brand currently in stock.
Chain Dimensions |
|
Specification |
Ref |
Dimension |
Chain Size |
|
CA512 38.4VB |
Pitch |
P |
38.4mm |
Roller Width |
W |
19.05mm |
Roller Diameter |
D |
15.88mm |
Pin Length |
C |
36.1mm |
Link Plate Height |
H |
20.50mm |
Link Plate Thickness |
T |
3.00mm |
Pin Diameter |
E |
8.28mm |
Attachment Dimensions
|
Specification |
Ref |
Dimension |
Attachment |
|
K1 |
Hole Spacing |
F |
2.250" |
Attachment Width |
W |
3.054" |
Hole Diameter |
d4 |
0.403" |
Hole Position |
K |
0.625" |
Vertical Postion |
h4 |
0.550" |
Pitch |
P |
1.500" |
