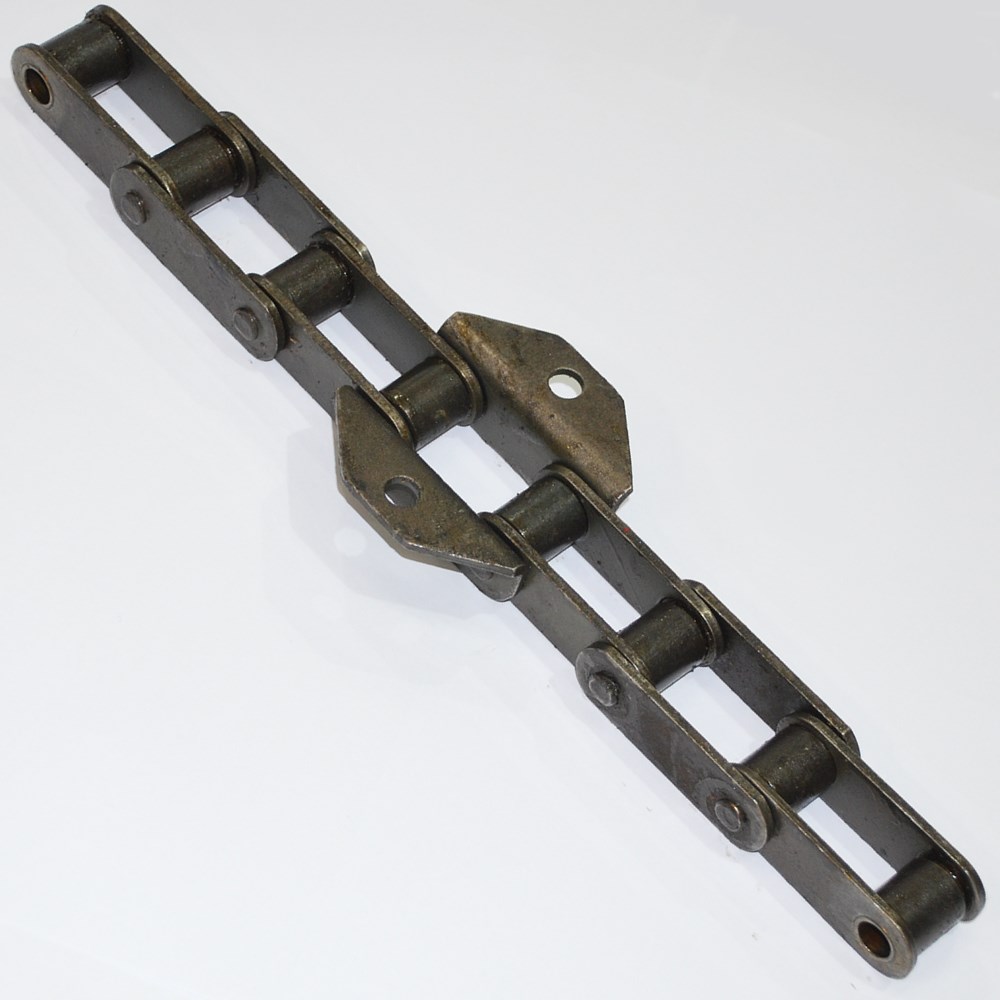

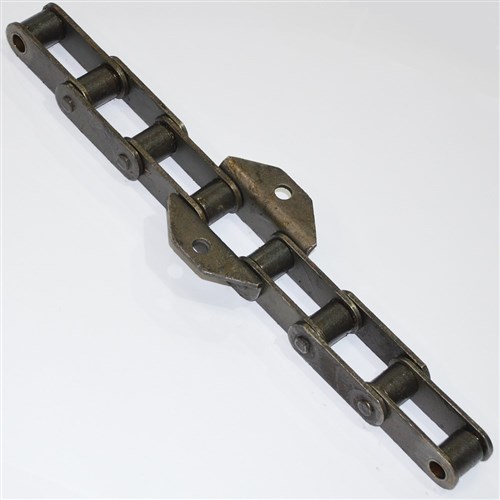

CA550HD with K1 attachment every 8th pitch. Agricultural conveyor chain is a popular chain used in the agricultural industry. We supply this product as an premium chain suitable for a wide variety of applications. The primary brand supplied is TIMKEN, however this may be substituted by an equivalent brand depending on availability. If brand is critical please contact us to confirm the brand currently in stock.
| Chain Dimensions |
|
| Specification |
Ref |
Dimension |
| Chain Size |
|
CA550HD |
| Pitch |
P |
1.630" |
| Roller Width |
W |
0.767" |
| Roller Diameter |
D |
0.656" |
| Rivet Pin Length |
C |
1.450" |
| Link Plate Height |
H |
0.780" |
| Link Plate Thickness |
T |
0.120" |
| Pin Diameter |
E |
0.326" |
| Attachment Dimensions |
|
| Specification |
Ref |
Dimension |
| Attachment Type |
|
K1 |
| Attachment Hole Spacing |
J |
2.126" |
| Attachment Width |
K |
2.815" |
| Hole Diameter |
N |
0.335 |
| Attachment Shoul;der Length |
M |
0.890" |
| Vertical Height |
L |
0.500" |
| Plate Thickness |
T |
0.120" |
