CASE IH CHAINS ONLY A557 8TH 2 ROW 76L 10B 2188

A557 8TH 2 ROW 76L 10B 2188

Product Code: CM033OEMCO

Detail
Technical
Interchange
Downloads

Case-IH® 1480 1680 1688 2188 Compatible

Feeder House Chains Only

60" FEEDER HOUSE

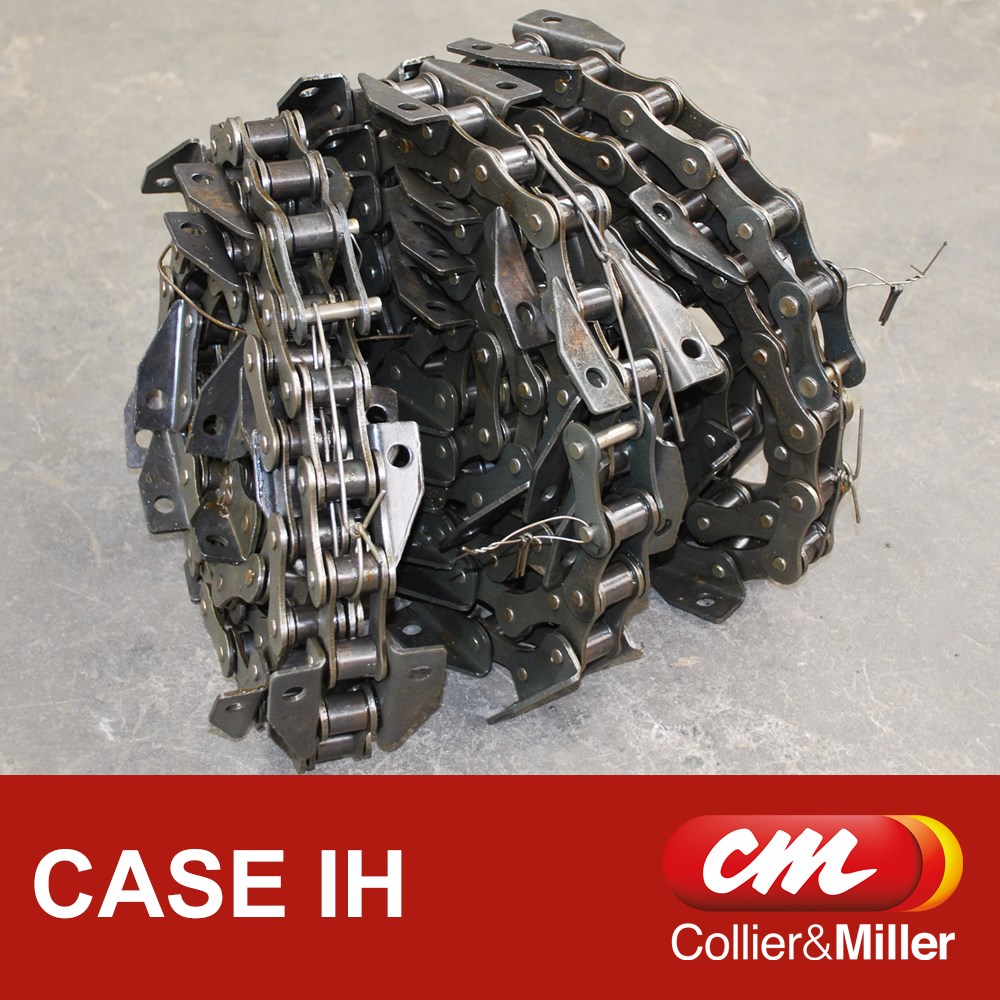

C&M replacement feeder house chains only to suit the front feeder house on CASE-IH® Mid-Series combine harvesters.This is a set of 2 replacement chains with the same spacing and attachment holes as the Case-IH® original chain.

You can re-chain your assembly using the original Case-IH® slats. This chains only assembly is supplied with connectors and half links for each strand. We supply these chains in Australia from premium grade black-pin chain. We guarantee the quality of these unit, however we recommend you fit new sprockets at the time of installation.

Part Numbers

117867A1

Series	Models	Serial/Year
Case-IH® 1400 Series	1480
Case-IH® 1600 Series	1680 1688
Case-IH® 2100 Series	2188

Features

C&M Assembled In Australia
Fits 60" feeder house
Premium grade pin chain
2 x Connectors & 4 x Half Links Included
Same spacing as CNH® OEM Assembly
No fasteners supplied - reuse your original bolts

C&M Technical Specifications

Item	Details	Notes
CM033OEMCO	Case-IH® Early Series	60" feeder
Chain Brand	AMEC	Stamped C&M

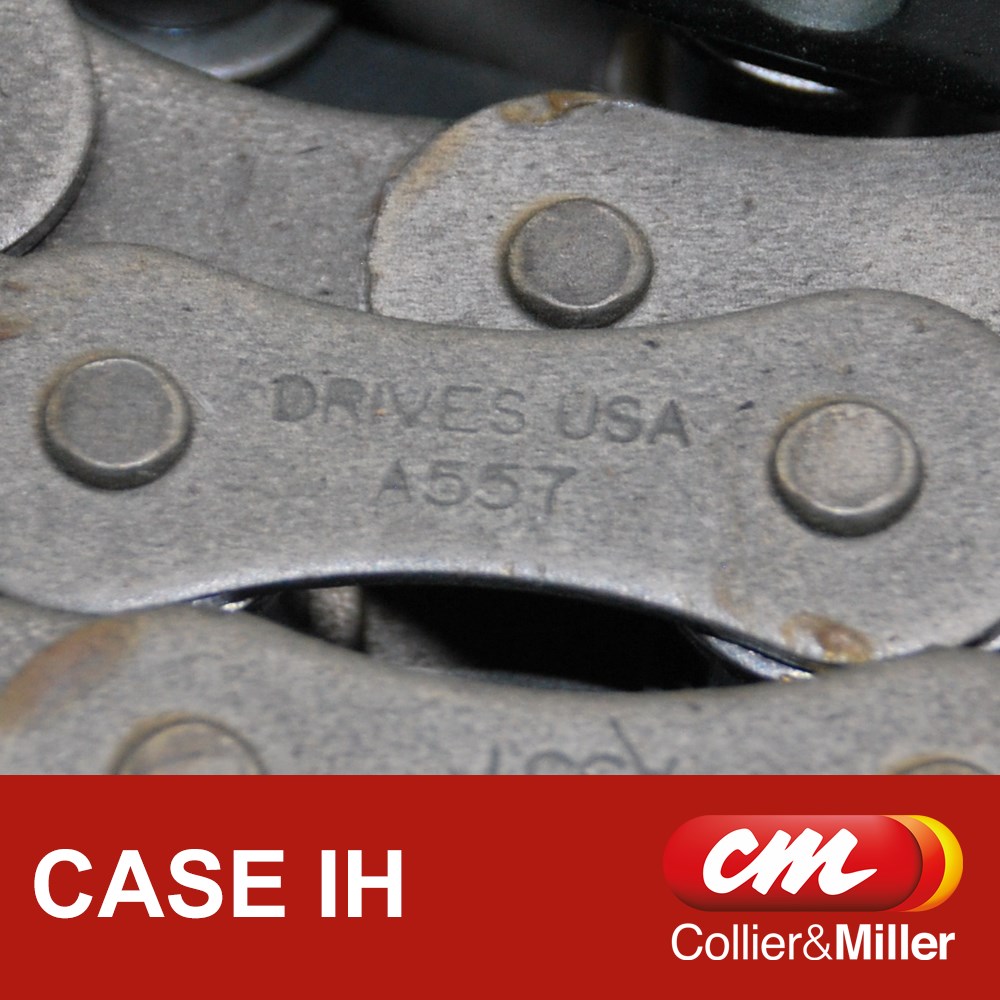

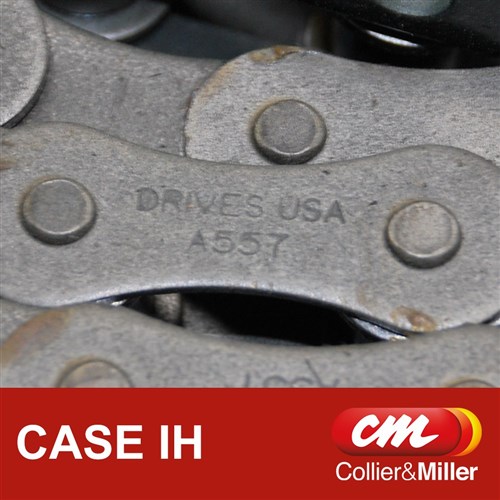

Chain Type	A557
Chain Assembly	2 Chain	No Bars

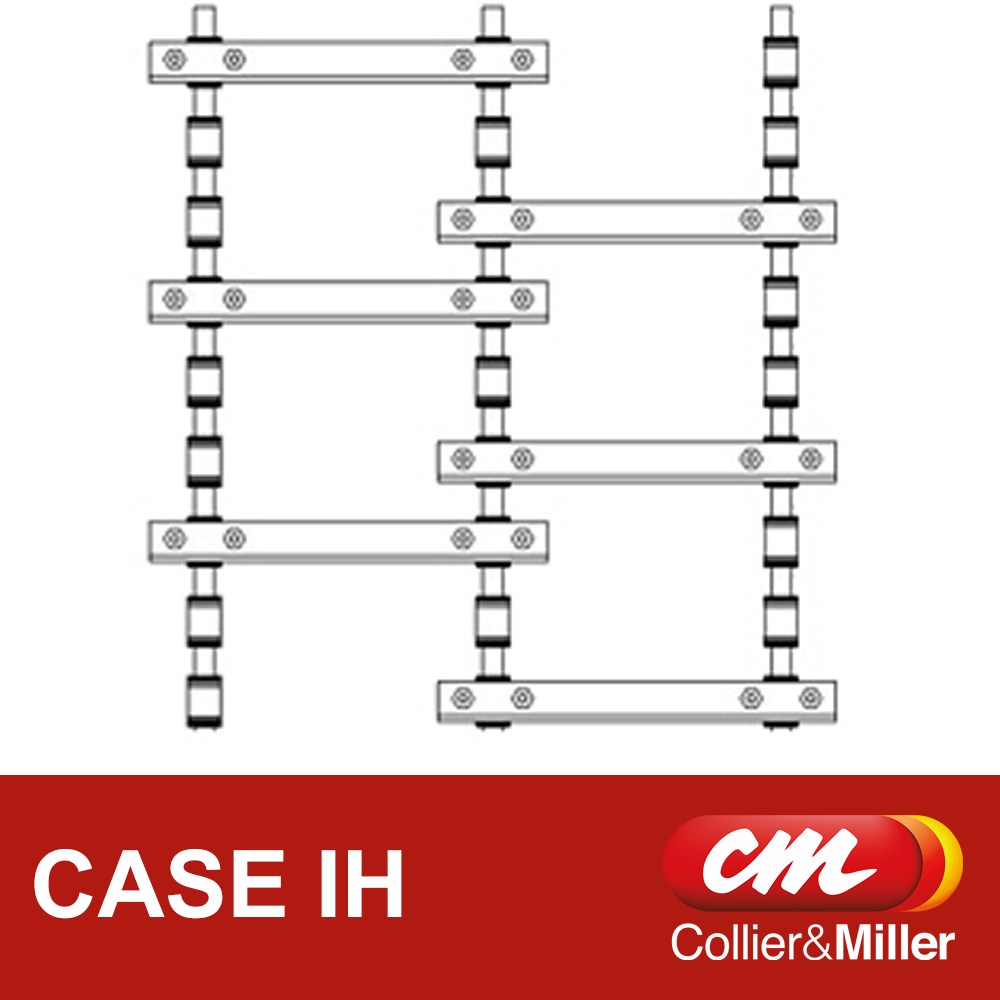

Attachment Pattern	8th	Same as Case-IH OEM
Number of Pitches	76	Plus Connectors
Supplied Connectors	2 x Conns 4 x Offset Links
Assembly Width (Overall)	1100MM
Number of bars	12
Chain centre to centre	925MM
Bar Type	6mm U-Bar G350	Not included
Bolts	48 x M10X25 Class 10.9	Not included
Nuts	48 x M10 Cone lock	Not included
