CASE IH FEEDER CHAIN ASSY A557 8-8 8-8 4 ROW 112L 28B CASE IH 7010 8010

A557 8-8 8-8 4 ROW 112L 28B CASE IH 7010 8010

Product Code: CM038OEM

Detail
Technical
Downloads

Case-IH® Compatible

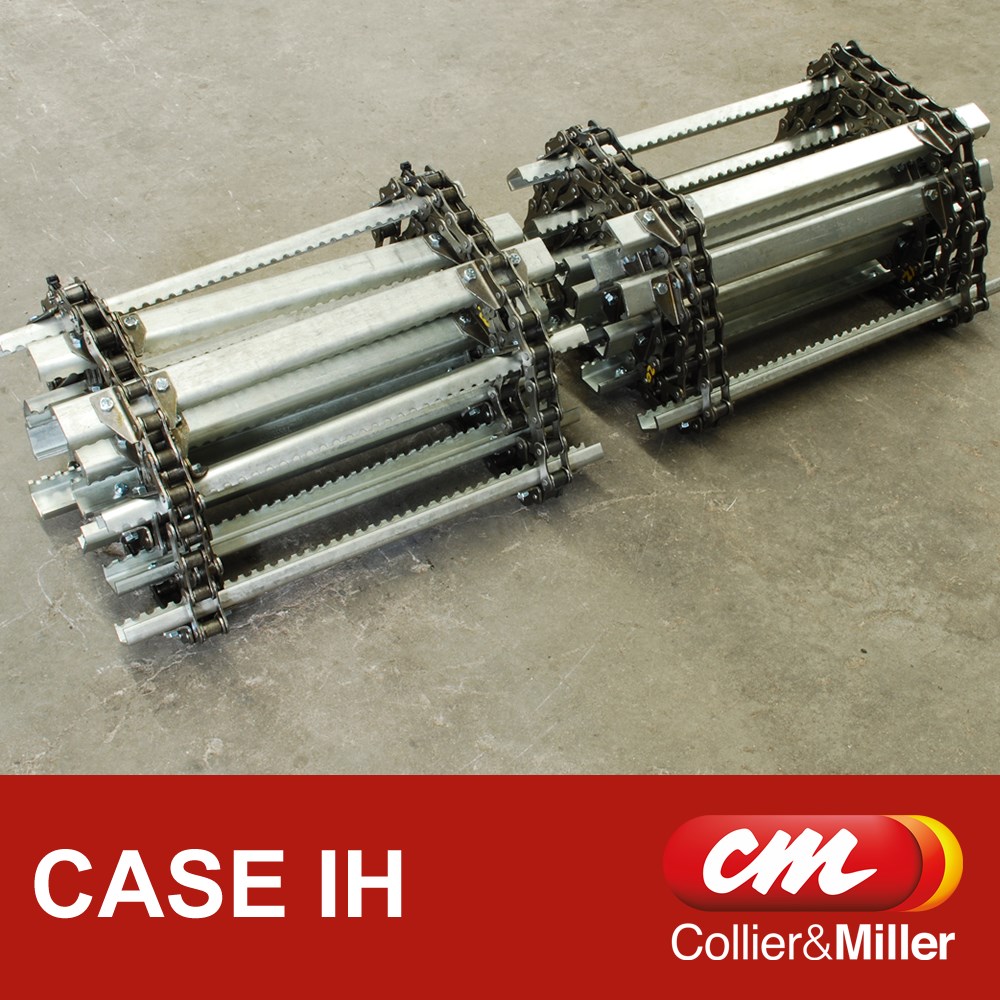

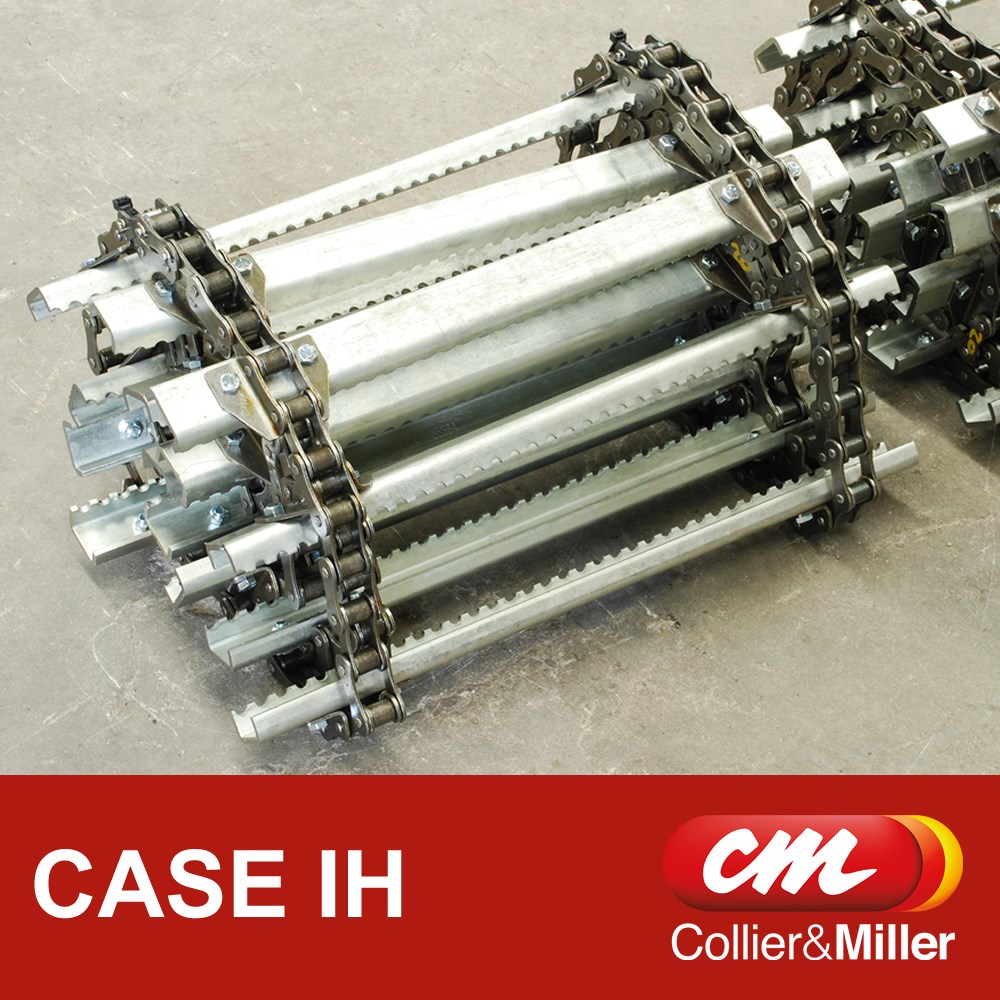

Feeder House Chain Assembly (2 x 2 Chain)

NON-ROCK-TRAP

C&M replacement complete feeder house chain assembly to suit the front feeder house on CASE-IH 10 Series combine harvesters. This is a set of 2 x 2 chains fiited with electroplated 6mm serrated U-Bar slats with the same spacing as the CNH original chain.

This complete chain assembly is supplied with connectors and half links for each strand. We supply these chains in Australia from premium grade chain and laser cut serrated 6mm U-Bar slats. We guarantee the quality of these unit, however we recommend you fit a new sprocket at the time of installation

Models

Series	Part Number	Models	Serial/Year
Case 10 Series	87283357, 87283359, 87397924	7010	02/07 - 09/08
	87625521	7010, 8010, AFX8010	Full width Slats - No Rock Trap

Features

Fits Feeder House without Rock-Trap
Premium grade pin chain
14 x electroplated 6mm seratted U-Bar per side
Connectors & Half Links Included
Bolted assembly ready to install
Supplied as 2 x 2 chain assemblies

Genuine References

111 Links x 41.4mm = 4636.8mm

C&M Technical Specifications

Item	Details	Notes
CM038OEM	Case-IH® Flagship 10 series 7010 8010 AFX8010	No Rock Trap
Chain Brand	AMEC	Stamped C&M
Chain Type	A557	Black Pin
Chain Assembly	2 x 2 Chain Assemblies with bars
Attachment Pattern	8	Same as Case-IH OEM
Number of Pitches	112	Including Connectors
Supplied Connectors	4 x Conns 8 x Offset Links	Threaded
Assembly Width (Overall)	625mm per chain
Number of bars	14 Per Chain - 28 Total
Chain centre to centre	460mm
Bar Type	6mm U-Bar G350	Roll serrated & electroplated
Bolts	112 x M10X25 Class 10.9	Threadlocker Pre-Treated
Nuts	112 x M10 Cone lock	Torque prevailing
