CASE IH FEED CHAIN ASSY R/TRAP

A557 8-6/2-6/2-8 4ROW 97L 36B 7120 7230 8120 8230 9120 CASE

Product Code: CM039OEMRTCP
  $3075.00
EACH inc GST
Afterpay Logo
Unavailable for this order
Manufactured to Order
Increase value Decrease value

  • Detail
  • Warranty
  • Parts & Codes

CASE-IH® Compatible

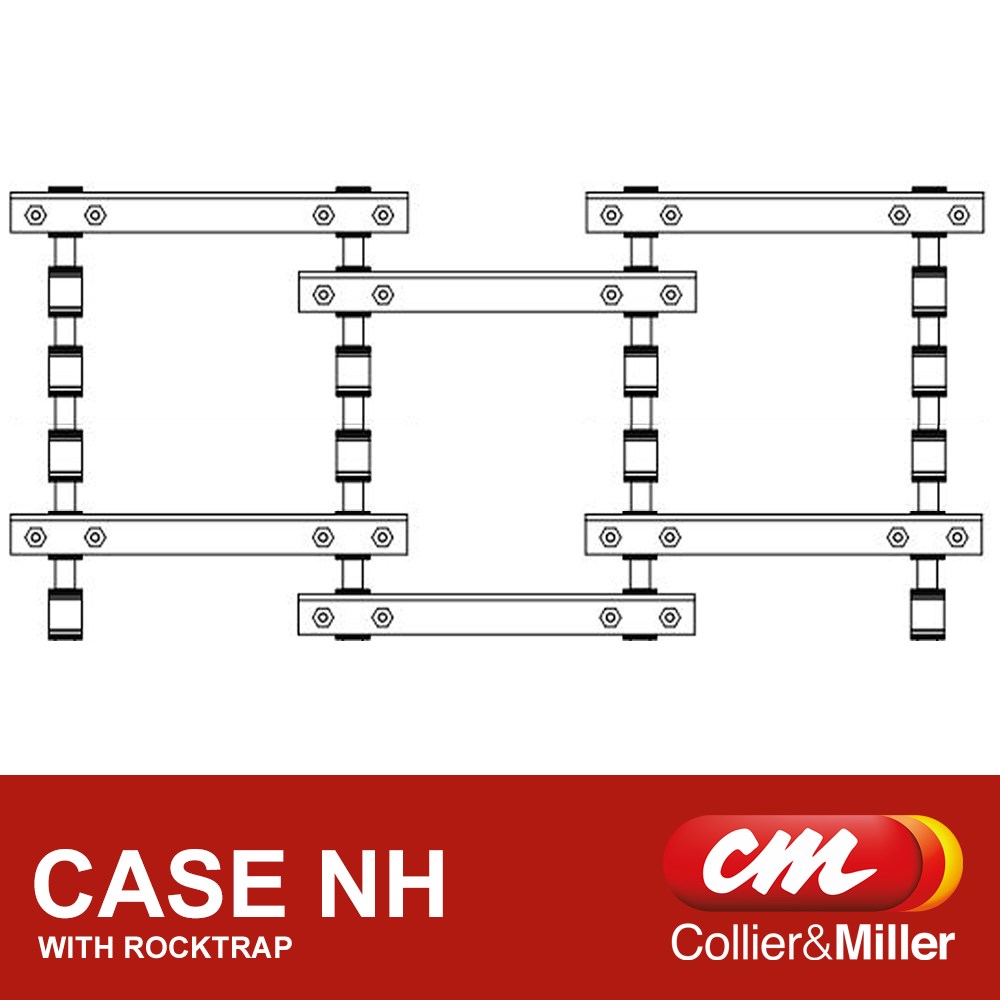

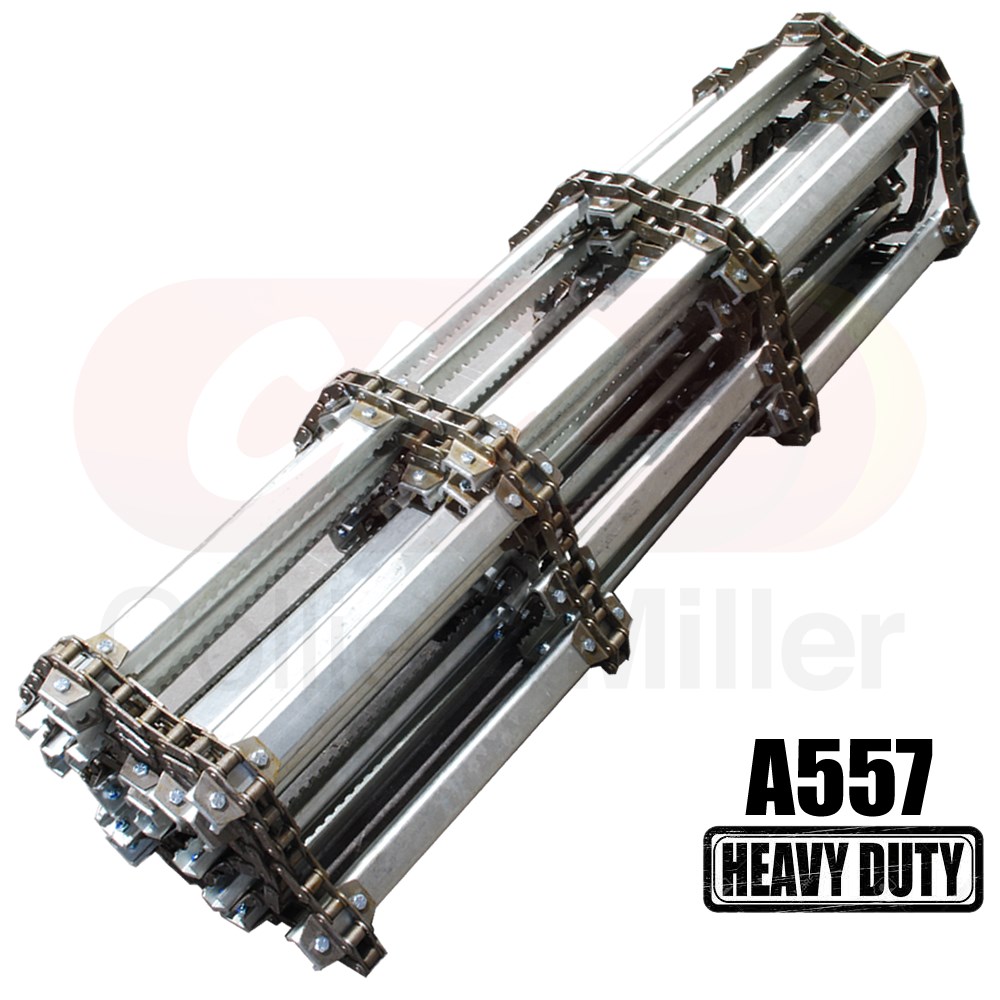

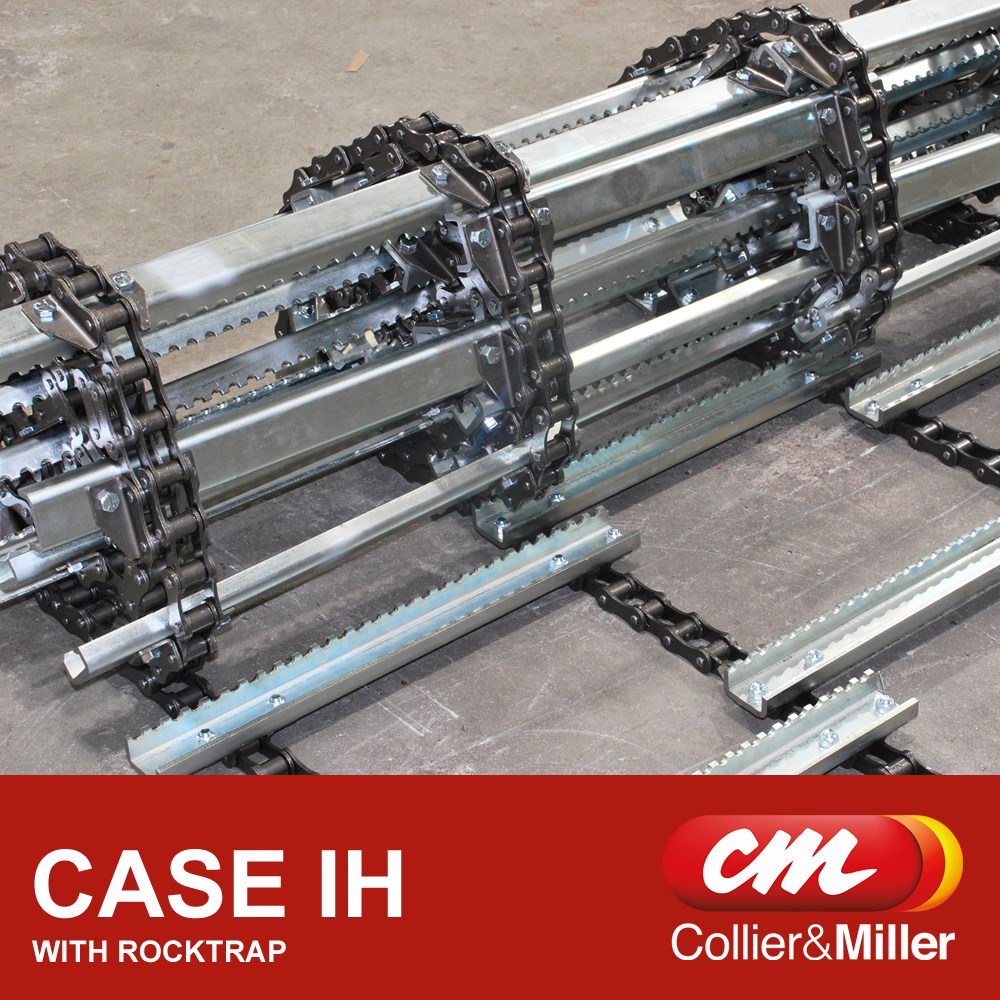

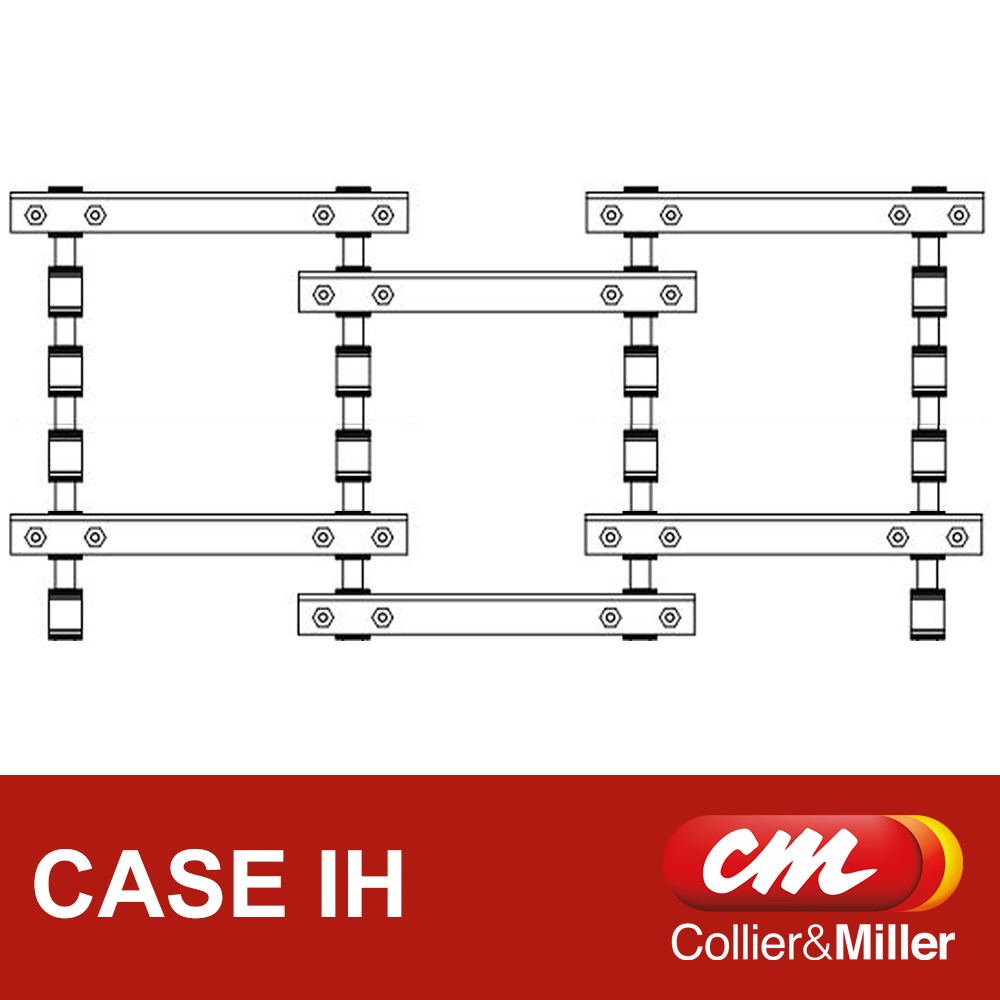

Feeder House Chain Assembly (Rock-Trap)


C&M replacement complete feeder house chain assembly to suit the front feeder house on CASE-IH® 120, 230 & 240 flagship series combine harvesters (with rock-trap). This is a set of four (4) replacement chains fiited with G350 electroplated 6mm roll-serrated u-bar slats with the same spacing as the CASE-IH® original chain.

This complete chain assembly is supplied with connectors and half links for each strand. We supply these chains in Australia from premium grade chrome pin chain and high performance roll-serrated 6mm U-Bar slats. We guarantee the quality of these unit, however we recommend you fit a new sprocket at the time of installation

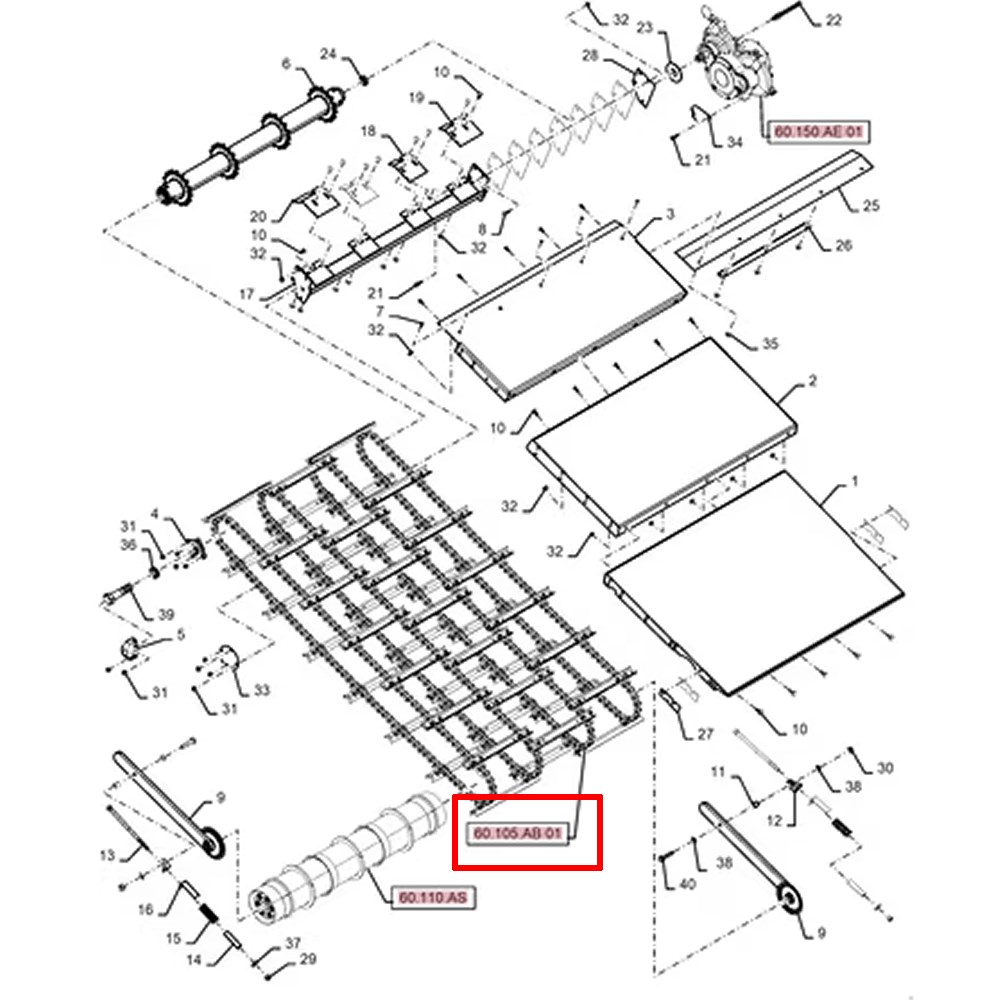

Part Numbers
  • Z Shaped Slats 87646015
  • U Shaped Slats 84179639
Series Models Serial/Year
Case 120 Series 7120, 8120, 9120
Case 230 Series 7230, 8230, 9230
Case 240 Series 7240, 8240, 9240

Features
  • Fits Feeder House without Rock-Trap
  • Premium grade chrome pin chain
  • Electroplated 6mm roll-seratted U-Bar
  • Connectors & Half Links Included
  • Bolted assembly ready to install

Warranty Policy

Collier & Miller’s warranty complies with the Australian Consumer law, this warranty and does not limit or replace your right Australian Consumer Guarantee. Collier & Miller warrants to the purchaser, that each material and workmanship for 12 months after delivery and installation.

This warranty is in lieu of all other warranties (except those of title), expressed or implied, and there are no warranties of fitness for the particular purpose. In no event shall Collier & Miller be liable for downtime expenses, loss of machine use, loss of crops, loss of profits, injury or damage arising from accident, direct or indirect loss, or other incidental, consequential or special damages.

Conditions of warranty


FEEDER HOUSE CHAINS ARE SUBJECT TO VARIABLE CONDITIONS. THESE INCLUDE FITMENT, SPROCKET CONDITION AND OPERATIONAL CONDITIONS. EACH CHAIN MUST BE FITTED TO EQUIPMENT THEY WERE DESIGNED FOR AND FITTED WITH NEW SPROCKETS. WEAR OF CHAIN OR FAILURE DUE TO FOREIGN OBLECTS IS NOT COVERED BY WARRANTY.


Process

In the event of a defect which may result in a warranty claim:
  1. The Owner must provide the Collier & Miller with written notice of the defect within 14 days of its occurrence, and allow reasonable time for replacement or repair.
  2. At Collier & Miller’s request, the owner will ensure any failed parts are freighted to the Collier & Miller or other location advised by an authorised representative.
  3. The Warranty is not transferable to any third party or subsequent purchaser.
11166816 84179639 87646015
Case-IH® Compatible ensures the C&M aftermarket part will fit the machine model stated based on our research and customer feedback. C&M parts are an aftermarket product and do not make a claim to be a genuine Case-IH® part. It is recommended prior to ordering you should verify the parts will fit your equipment. Case-IH® is a registered trademark of CNH Industrial America LLC
