New Holland® Compatible

Feeder House Chain Assembly CR9000 Series

22.25" CHAIN CENTRES

C&M replacement complete feeder house chain assembly to suit the front feeder house on New Holland® 9000 series combine harvesters. This is a set of three (3) replacement chains fiited with G350 electroplated 6mm roll-serrated u-bar slats with the same spacing as the New Holland® original chain.

This complete chain assembly is supplied with connectors and half links for each strand. We supply these chains in Australia from premium grade chain and high performance roll-serrated 6mm U-Bar slats. We guarantee the quality of these unit, however we recommend you fit a new sprocket at the time of installation


Part Numbers

• Complete Chain 86556411, 87372057, 86556410

Series	Models	Serial/Year
New Holland CR9000 Series	CR940, CR960, CR970, CR980	(10/01-09/06)
	CR960	EUROPE (01/05-12/06)
	CR980	EUROPE (01/05-12/06)
	CR9070 ELEVATION	(10/07-12-11)
	CR9080	EUROPE (09/06-12/09)
	CR9080	USA (03/09-12/11)
	CR9080 ELEVATION	(10/07-12/11)
	CR9090 ELEVATION	(01/09-12/11)

Features

• 112 Links Premium Grade A557 chain
• 36 x Grade 350 Zinc Plated 6mm Serrated U-Bars
• 1 x Connector per chain
• 2 x Offsetset links per chain
• Bolted assembly ready to install

Item	Details	Notes
CM060OEM	CR 9000 series	22.25" chain centres
Chain Brand	AMEC	Stamped C&M

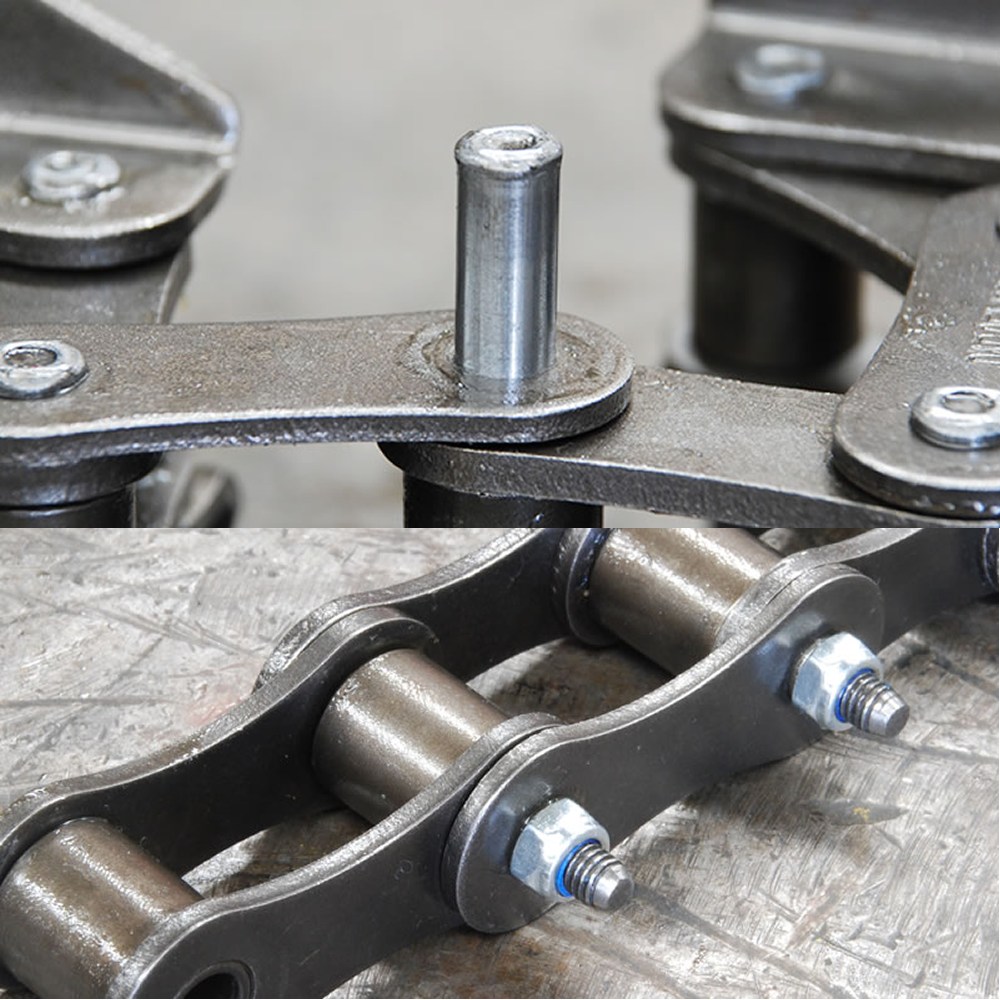

Chain Type	A557	Black Pin
Chain Assembly	3 Chain with bars

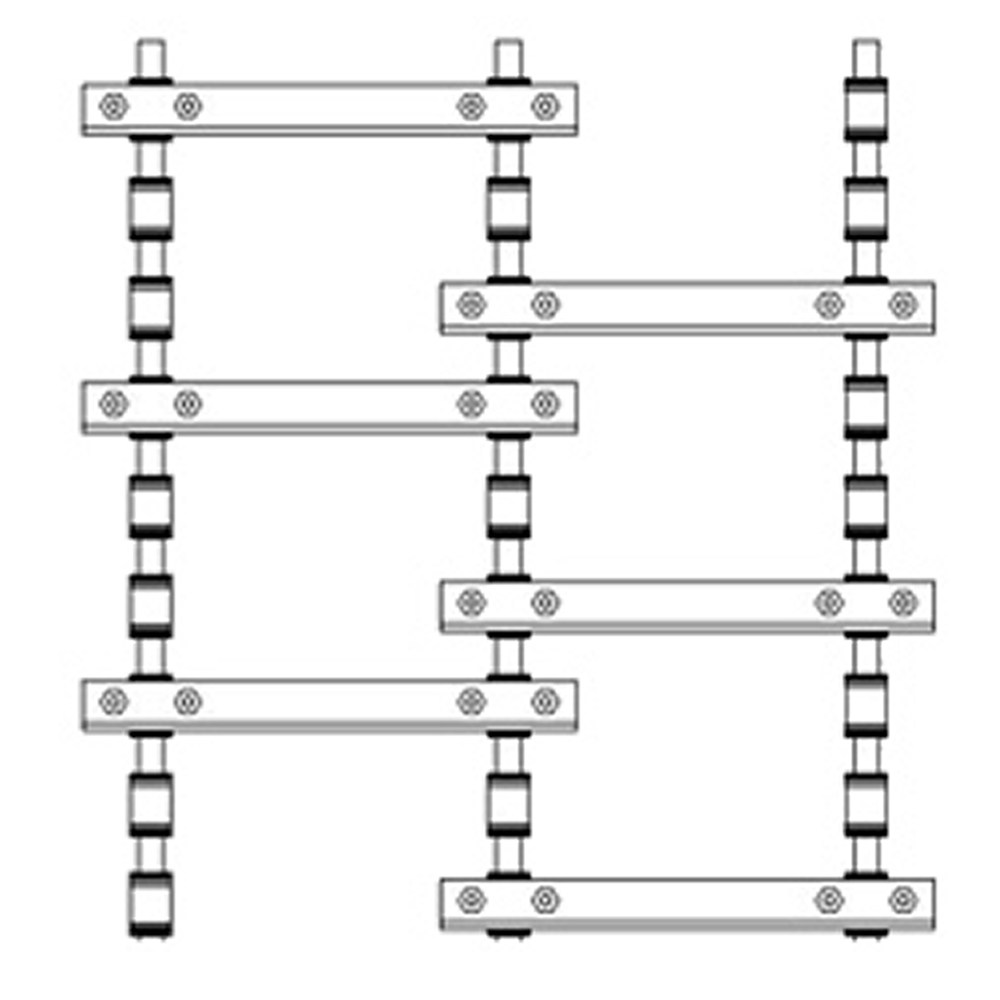

Attachment Pattern	6-2/4-6	Same as CNH OEM
Number of Links	112	Including Connectors
Supplied Connectors	3 x Conns 6 x Offset Links	Threaded
Assembly Width (Overall)	1210mm
Number of slats	36
Chain centre to centre	565mm / 565mm	22.25"

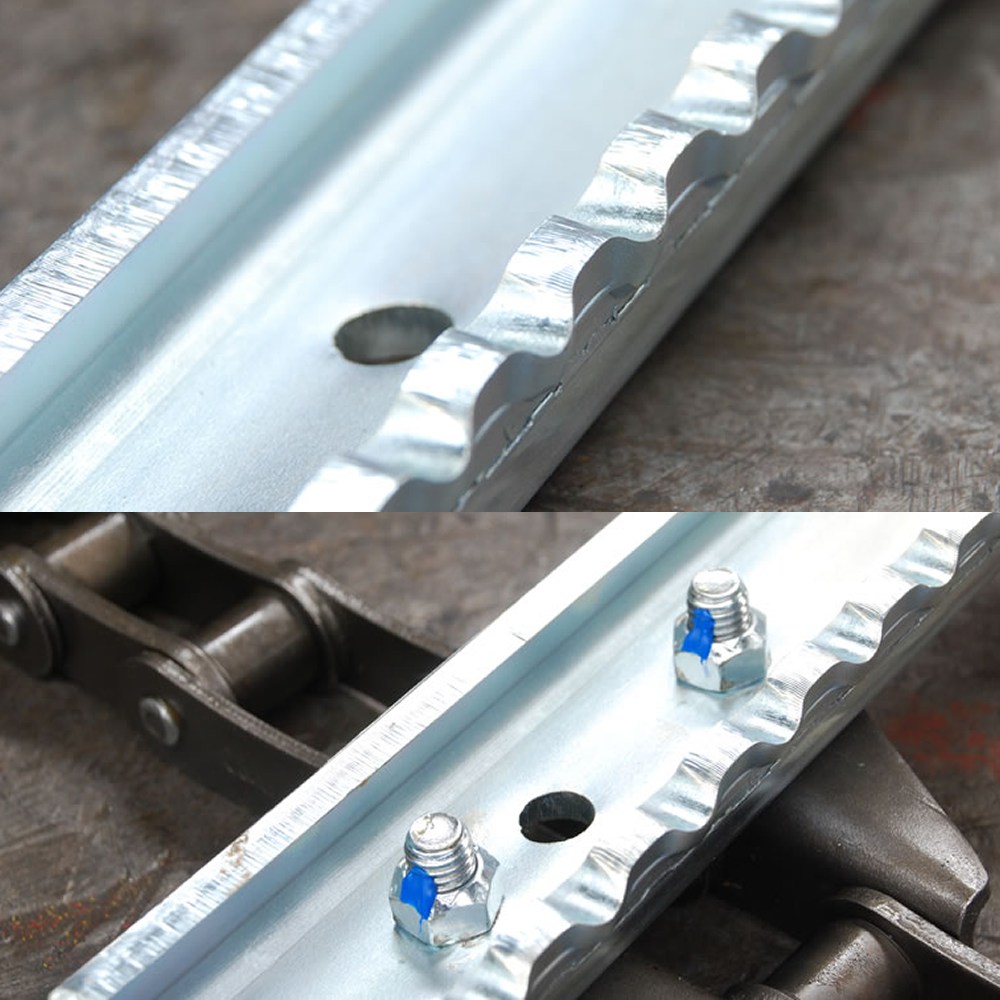

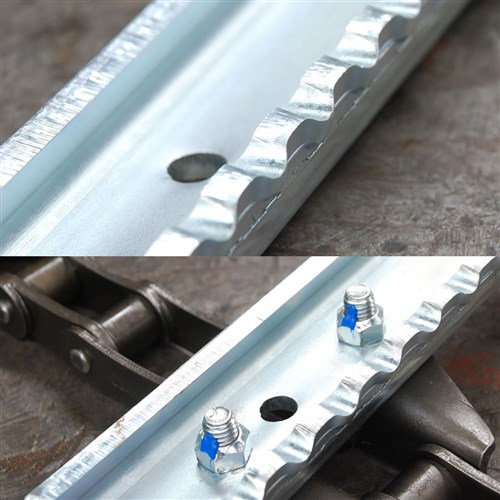

Slat Type	6mm U-Bar	Roll-Serrated & Electroplated
Bolts	144 x M10X25 Class 10.9	Threadlocker Pre-Treated
Nuts	144 x M10 Cone lock	Torque prevailing

Build Sheet

87372056 87372057

Product Warranty

The Collier & Miller warranty complies with the Australian Consumer law, this warranty and does not limit or replace your right Australian Consumer Guarantee. Collier & Miller warrant that it will repair or replace (whichever it deems advisable) any product manufactured or imported by Collier & Miller which proves to be defective in material or workmanship within a period on one (1) year from the date of the original purchase on the invoice. This warranty is in lieu of all other warranties (except those of title), expressed or implied, and there are no warranties of fitness for the particular purpose.

Conditions

1. The warranty covers normal use and does not cover damage or defect which is the result of alteration, accident , neglect, improper installation, operation or maintanance.
2. In no event shall Collier & Miller be liable for downtime expenses, loss of machine use, loss of crops, loss of profits, injury or damage arising from accident, direct or indirect loss, or other incidental, consequential or special damages.
3. Collier & Miller neither assumes or authorizes any other person to give any warranty or to assume any other obligation on its behalf

FEEDER HOUSE CHAINS ARE SUBJECT TO VARIABLE CONDITIONS. THESE INCLUDE FITMENT, SPROCKET CONDITION AND OPERATIONAL CONDITIONS. EACH CHAIN MUST BE FITTED TO EQUIPMENT THEY WERE DESIGNED FOR, FITTED WITH NEW SPROCKETS AND INSTALLED BY A SUITABLY QUALIFIED PERSON. WEAR OF CHAIN OR FAILURE DUE TO FOREIGN OBLECTS IS NOT COVERED BY WARRANTY.

Process

In the event of a defect which may result in a warranty claim:

1. The Owner must provide the Collier & Miller with written notice of the defect within 14 days of its occurrence, and allow reasonable time for replacement or repair.
2. At Collier & Miller’s request, the owner will ensure any failed parts are freighted to the Collier & Miller or other location advised by an authorised representative.
3. The Warranty is not transferable to any third party or subsequent purchaser.
