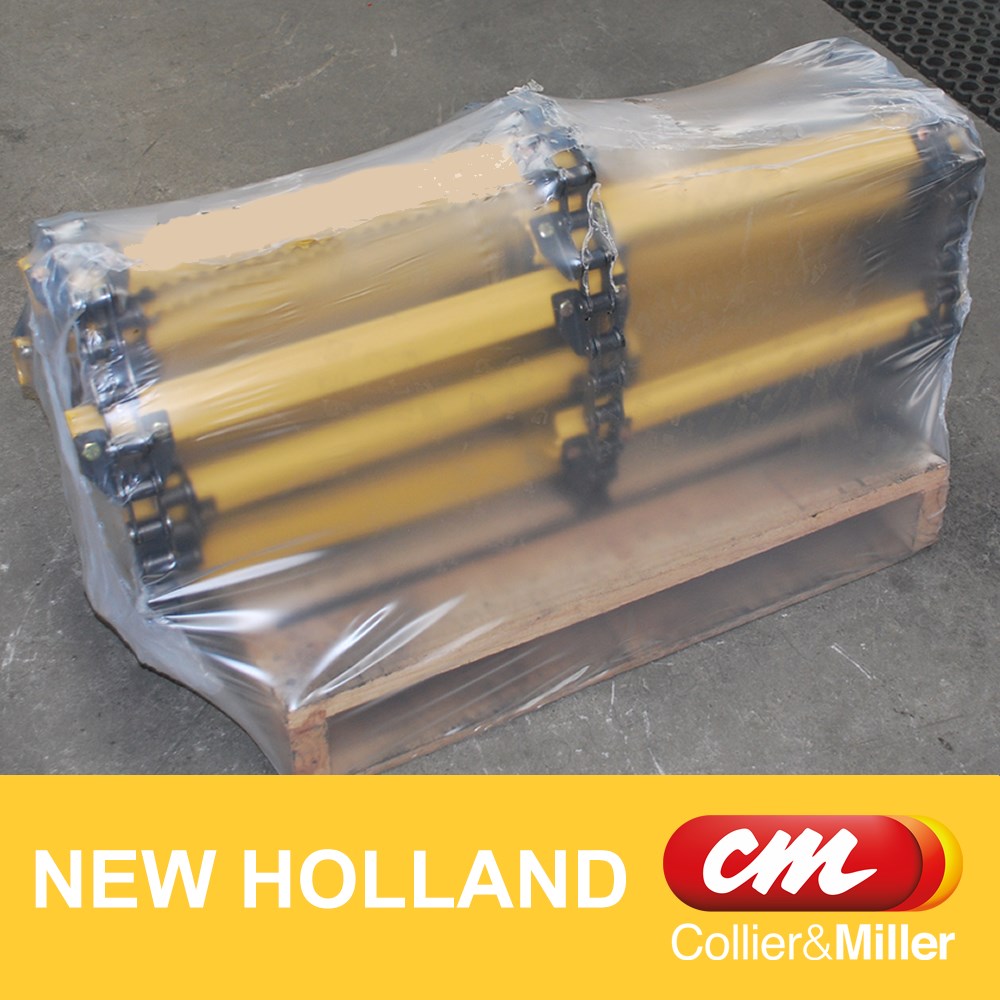

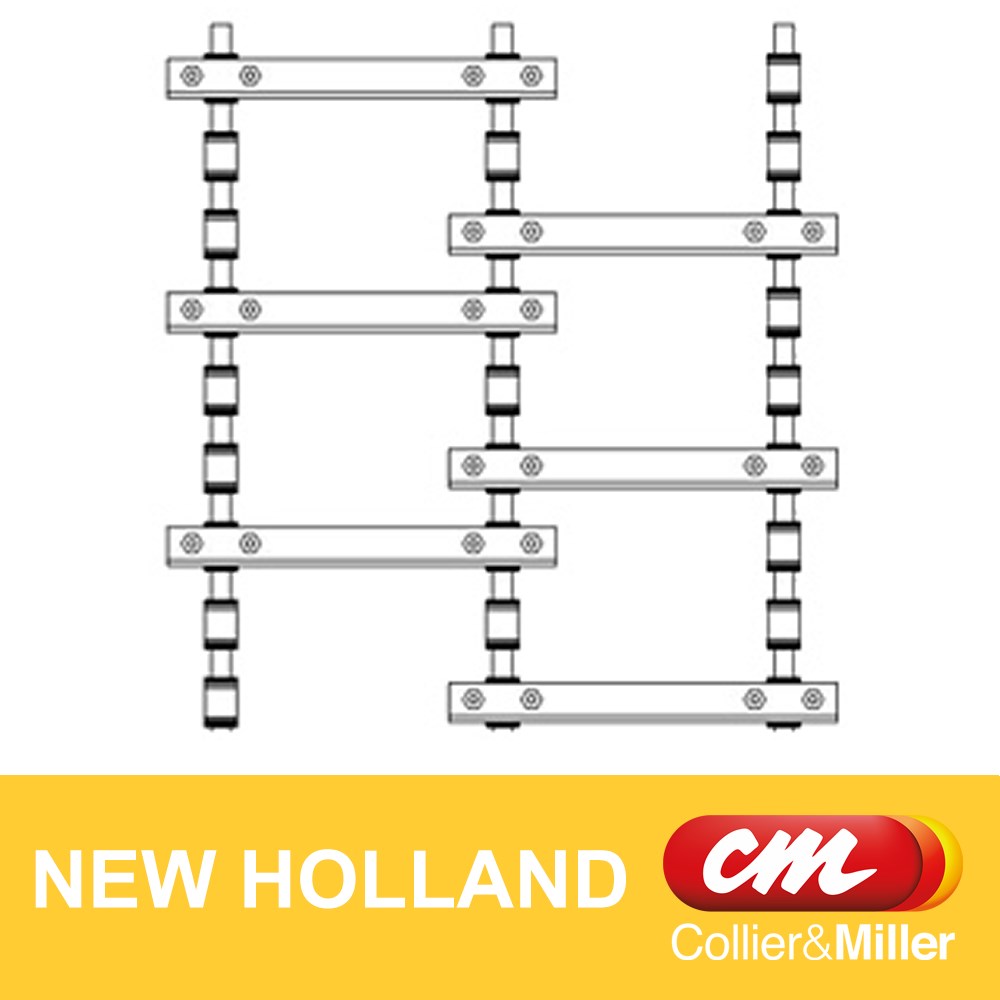

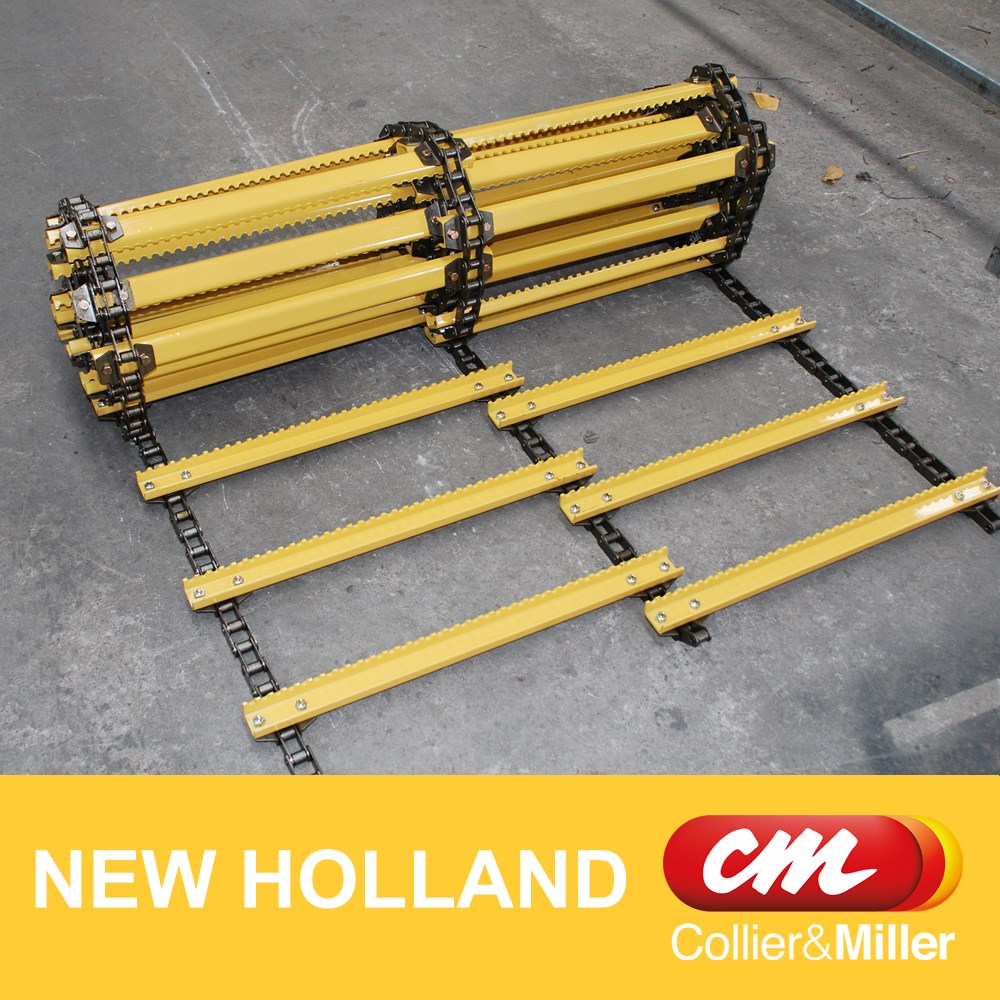

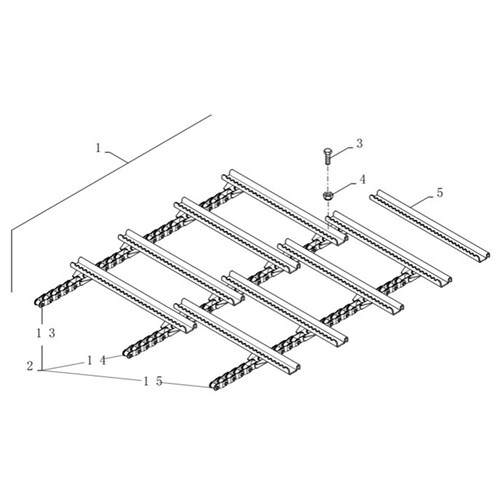

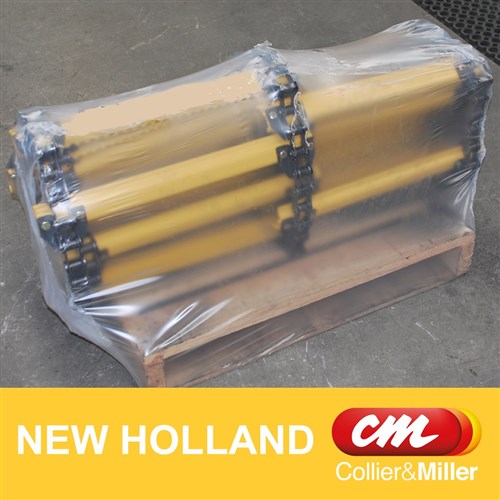

C&M replacement complete feeder house chain assembly to suit the front feeder house on New Holland combine harvesters.This is a set of three (3) replacement chains fitted with grade 350 electroplated 6mm serrated U-Bar slats with the same spacing as the New Holland original chain.
This complete chain assembly is supplied with connectors and half links for each strand. We supply these chains in Australia from premium grade chain and durable grade 350 zinc plated serrated 6mm U-Bar slats. We guarantee the quality of these unit, however we recommend you fit a new sprocket at the time of installation
Part Numbers
- Complete Chain 86556411, 87372057, 86556410
Models
Series |
Models |
Serial/Year |
New Holland CR 90 Series |
CR9040, CR9060, 9070 |
(09/06-12/11) |
|
CR9060 |
EUROPE (09/06-12/09) & (10/07-12/11) |
|
CR9070 ELEVATION |
(10/07-12-11) |
|
CR9080 |
EUROPE (09/06-12/09) |
|
CR9080 |
USA (03/09-12/11) |
|
CR9080 ELEVATION |
(10/07-12/11) |
|
CR9090 ELEVATION |
(01/09-12/11) |
|
|
|
New Holland CR9 Series |
CR940, CR960, CR970, CR980 |
(10/01-09/06) |
|
CR960 |
EUROPE (01/05-12/06) |
|
CR980 |
EUROPE (01/05-12/06) |
Features
- 112 Links Premium Grade A557 chain
- 36 x Grade 350 Zinc Plated 6mm Serrated U-Bars
- 1 x Connector per chain
- 2 x Offsetset links per chain
- Bolted assembly ready to install
