NEW HOLLAND FEEDER CHAIN ASSY

CHROME A557 8-6/2-6/2-8 4R 42B CR SERIES NO-DYNAMIC FEED ROLL

Product Code: CM061OEMCP
  $3350.00
EACH inc GST
Afterpay Logo
Unavailable for this order
Manufactured to Order
Increase value Decrease value

  • Detail
  • Parts & Codes
  • Downloads

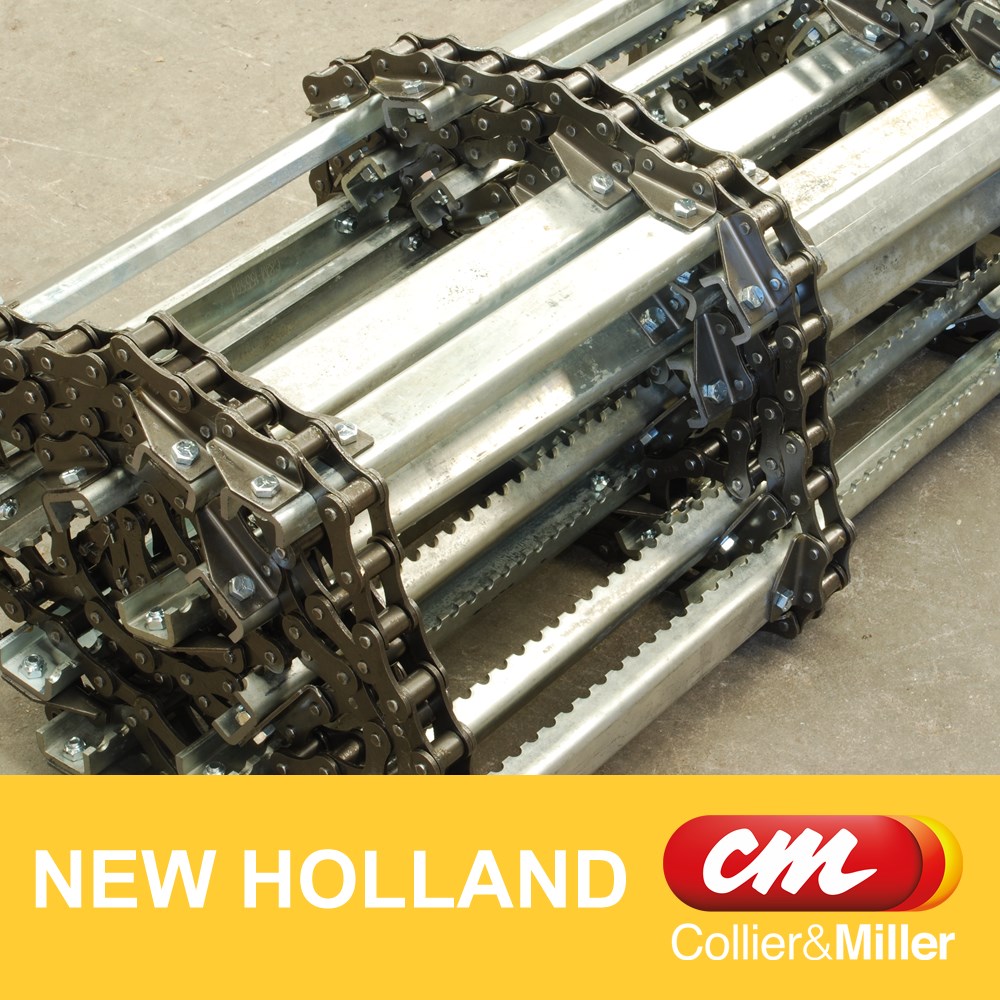

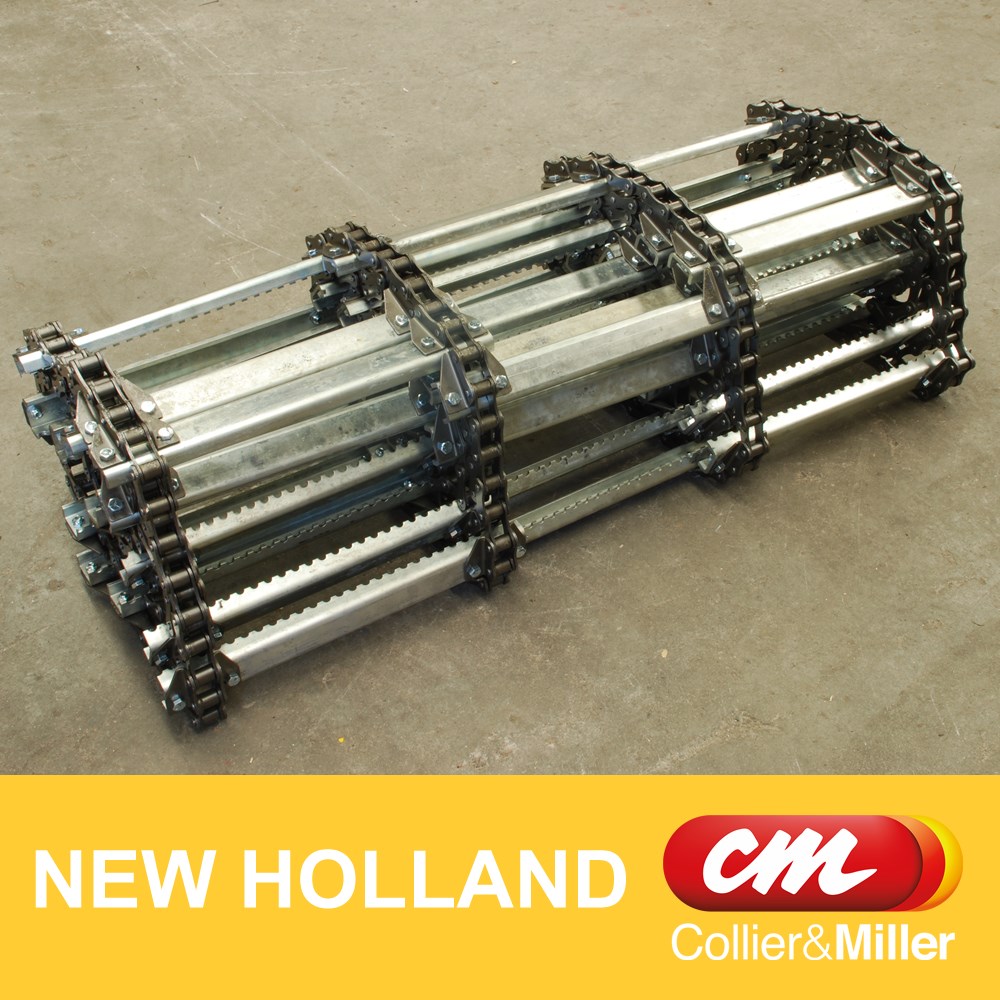

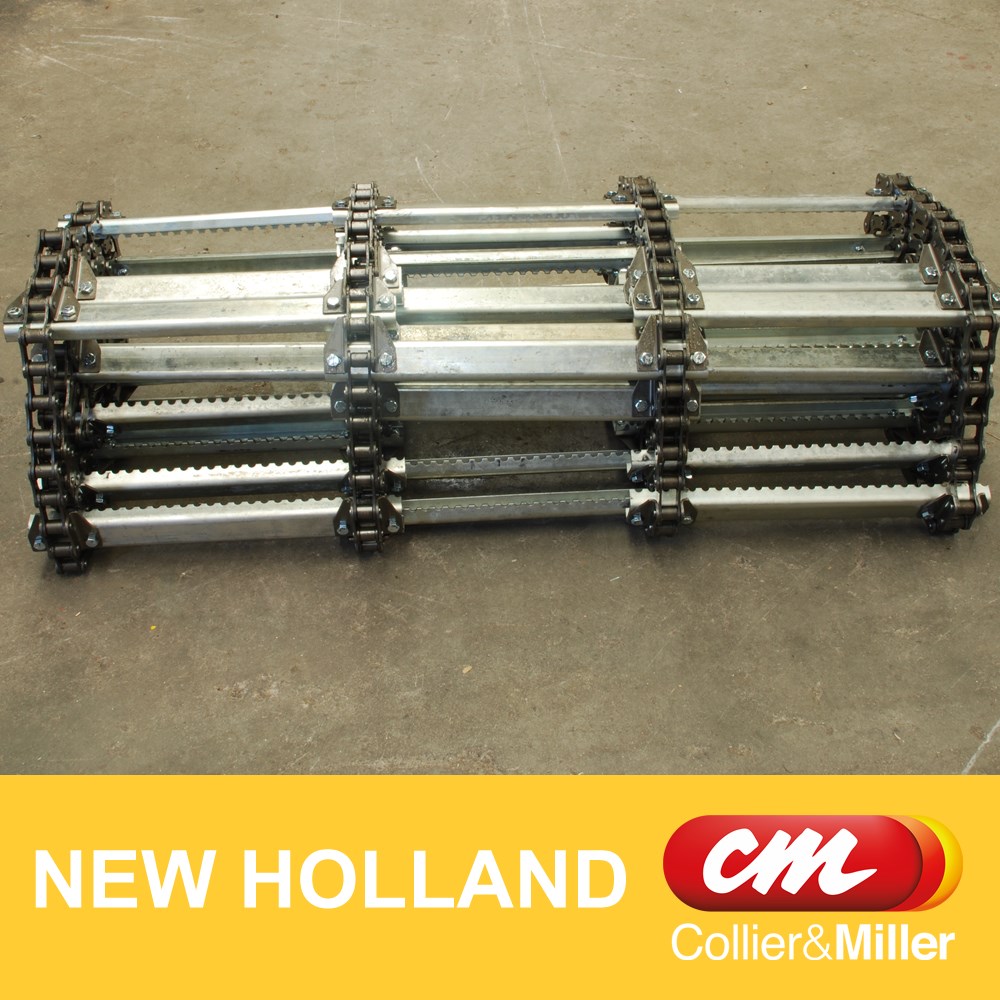

C&M complete feeder house chain to suit the front feeder house on New Holland combine harvesters (WITHOUT) dynamic feed roll. This is a complete set of four (4) replacement chains fitted with high performance rolled serration 6mm grade 350 u-bar slats.

This complete feeder house chain assembly is supplied with threaded connectors and cottered half links for each strand. We supply these chains in Australia from premium grade chrome pin chain. We guarantee the quality of these unit, however we recommend you fit a new sprocket at the time of installation.


* Please note this is fitted with 42 bars as used on combines fitted WITHOUT the dynamic feed roll (rock trap).

Part Numbers
  • 48103499 84285849 84396929 48103499
Fitment
Series Models Serial/Year
CR60 CR6090 A4 - TIER4 COMBINES  (12/11 - 10/13)
CR70 CR7090 A4 - COMBINE - TIER 4  (01/11 - 09/13)
CR7090 D4 - COMBINE - TIER 4 (01/14 - 12/14)
CR80 CR8070 E3 - TIER3 COMBINES - MADE IN EUROPE (12/11 - 02/15)
CR8090 A3 - COMBINE - TIER 3 (12/11 - 12/14)
CR8090 A4 - COMBINE - TIER 4   (12/11 - 12/13)
CR8090 D4 - COMBINE - TIER 4 (01/14 - 12/14)
CR8090 DTR4 - COMBINE - TIER  (01/14 - 12/14)
CR90 CR9070 - COMBINE  (09/06 - 12/11)
CR9070 - COMBINE - 10.3L ENGINE (09/06 - 12/11)
CR9070 TR4 - TRACKS TIER4 VERSION - MADE IN EUROPE (12/11 - 12/14)
CR9080 - COMBINE - 13L ENGINE (03/09 - 12/11)
CR9080 - COMBINE - MADE IN U.S.A.  (03/09 - 12/11)
CR9080 A3 - TIER3 COMBINES (12/11 - 12/14)
CR9080 E3 - COMBINE - TIER 3  (12/11 - 06/15)
CR9080 E4 - COMBINE - TIER 4  (12/11 - 12/14)
CR9080 TR3 - COMBINE, TRACKS - TIER 3 (12/11 - 07/13)
CR9080 TR4 - COMBINE, TRACKS - TIER 4 (12/11 - 12/14)
CR9090 - COMBINE - TIER 4 (NA) (12/11 - 12/13)
CR9090 - ELEVATION COMBINE (01/09 - 12/11)
CR9090 D4 - COMBINE - TIER 4 (01/14 - 12/14)
CR9090 D4 - COMBINE - TIER 4
  (01/14 - 12/14)
CR9090 DTR4 - COMBINE - TIER 4 (01/14 - 12/14)
CR9090 E4 - TIER4 COMBINES - MADE IN EUROPE  (12/11 - 02/15)
CR9090 ELEVATION - COMBINE - TIER 4 (NA) (12/12 - 12/14)
CR9090 TR4 - TRACKS TIER4 VERSION - MADE IN EUROPE (12/11 - 05/15)
CR7.80 CR7.80 E2 - REVELATION COMBINE - TIER 2 (EMEA) (10/18 - 12/18)
CR7.80 E4B - REVELATION COMBINE - TIER 4B (EMEA) (10/18 - 10/19)
CR7.90 CR7.90 A4A - REVELATION COMBINE - TIER 4A (NAFTA) (10/17 - 12/18)
CR7.90 D4 - COMBINE - TIER 4A (APAC)  (02/15 - 12/17)
CR7.90 E2 - REVELATION COMBINE - TIER 2 (EMEA) (10/18 - 09/19)
CR7.90 E2. - REVELATION COMBINE - TIER 2 (EMEA) (11/19 - )
CR7.90 E4B. - REVELATION COMBINE - TIER 4B (EMEA) (10/18 - 10/19)
CR7.90 I3 - COMBINE - TIER 3 (APAC) - 2014 (04/16 - 12/17)
CR7.90 I3 - REVELATION COMBINE - TIER 3 (APAC) (10/17 - 12/18)
CR8.80 CR8.80 E 4B - REVELATION COMBINE - TIER 4B (EMEA) (10/18 - 09/19)
CR8.80 E5. - REVELATION COMBINE - TIER 5 (EMEA) (11/19 - )
CR8.80 TR4B - COMBINE, TRACK - TIER 4B (EU)  (10/16 - 12/17)
CR8.80 TRE 4B - REVELATION COMBINE, TRACK - TIER 4B (EMEA) (10/18 - 09/19)
CR8.80 TRE 4B - REVELATION COMBINE, TRACK - TIER 4B (EMEA) (10/18 - 09/19)
CR8.80 TRE5. - REVELATION COMBINE, TRACK - TIER 5 (EMEA)  (11/19 - )
CR8.90 CR8.90 A4A - REVELATION COMBINE - TIER 4A (NAFTA) (10/17 - 12/18)
CR8.90 D4 - COMBINE, ELEVATION - TIER 4A (APAC/NA) (12/14 - 12/17)
CR8.90 E 4B - REVELATION COMBINE - TIER 4B (EMEA) (10/18 - 10/19)
CR8.90 E2 - REVELATION COMBINE - TIER 2 (EMEA) (10/18 - 06/19)
CR8.90 E2. - REVELATION COMBINE - TIER 2 (EMEA) (11/19 - )
CR8.90 E4B - COMBINE - TIER 4B (EU) - 2016 (03/16 - 12/17)
CR8.90 E4B - REVELATION COMBINE - TIER 4B (EMEA) (10/17 - 12/18)
CR8.90 E5. - REVELATION COMBINE - TIER 5 (EMEA) (11/19 - )
CR8.90 TR4 - COMBINE, TRACK - TIER 4A (APAC) (12/14 - 12/17)
CR8.90 TRA4A - REVELATION COMBINE, TRACK - TIER 4A (NAFTA) (10/17 - 12/18)
CR8.90 TRE 4B - REVELATION COMBINE, TRACK - TIER 4B (EMEA (10/18 - 10/19)
CR8.90 TRE2 - REVELATION COMBINE, TRACK - TIER 2 (EMEA) (10/18 - 07/19)
CR8.90 TRE2. - REVELATION COMBINE, TRACK - TIER 2 (EMEA)  (11/19 - )
CR9.80 CR9.80 E 4B - REVELATION COMBINE - TIER 4B (EMEA) (10/18 - 06/19)
CR9.80 E2 - REVELATION COMBINE - TIER 2 (EMEA) (10/18 - 10/19)
CR9.80 E2. - REVELATION COMBINE - TIER 2 (EMEA) (11/19 - )
CR9.80 E4 - COMBINE - TIER 4A (EU)  (12/14 - 01/16)
CR9.80 I3 - COMBINE - TIER 3 (APAC) - 2014 (12/14 - 12/17)
CR9.80 I3 - REVELATION COMBINE - TIER 3 (APAC) (10/17 - 12/18)
CR9.80 TR3 - COMBINE, TRACK - TIER 3 (APAC) - 2014 (12/14 - 05/16)
CR9.80 TR3 - REVELATION COMBINE, TRACK - TIER 3 (APAC) (10/17 - 12/18)
CR9.80 TRE 4B - REVELATION COMBINE, TRACK - TIER 4B (EMEA) (10/18 - 09/19)
CR9.80 TRE2 - REVELATION COMBINE, TRACK - TIER 2 (EMEA) (10/18 - 12/18)
CR9.90 CR9.90 A4A - REVELATION COMBINE - TIER 4A (NAFTA) (10/17 - 12/18)
CR9.90 D4 - COMBINE - TIER 4A (APAC)
(03/15 - 12/17)
CR9.90 E 4B - REVELATION COMBINE - TIER 4B (EMEA) (10/18 - 06/19)
CR9.90 E2 - REVELATION COMBINE - TIER 2 (EMEA) (10/18 - 07/19)
CR9.90 E2. - REVELATION COMBINE - TIER 2 (EMEA) (11/19 - )
CR9.90 E4B - COMBINE - TIER 4B (EU) - 2016 (01/16 - 12/17)
CR9.90 E4B - REVELATION COMBINE - TIER 4B (EMEA) (10/17 - 12/18)
CR9.90 TR4 - COMBINE, TRACK - TIER 4A (APAC) (03/15 - 12/17)
CR9.90 TRA4A - REVELATION COMBINE, TRACK - TIER 4A (NAFTA)  (10/17 - 12/18)
CR9.90 TRE 4B - REVELATION COMBINE, TRACK - TIER 4B (EMEA)  (10/18 - 07/19)
CR9.90 TRE2 - REVELATION COMBINE, TRACK - TIER 2 (EMEA)  (10/18 - 09/19)
CR9.90 TRE2. - REVELATION COMBINE, TRACK - TIER 2 (EMEA) (11/19 - )
CR9.90 TRE4B - REVELATION COMBINE, TRACK - TIER 4B (EMEA)  (10/17 - 12/18)
CR9.90 TRE5. - REVELATION COMBINE, TRACK - TIER 5 (EMEA) 11/19 - )
CR10.90 CR10.90 A4B - REVELATION COMBINE - TIER 4B (NAFTA) (10/17 - 12/18)
CR10.90 TRA4B - REVELATION COMBINE, TRACK - TIER 4B (NAFTA) (10/17 - 12/18)

Features
  • Premium grade chrome-pin chain
  • Electroplated rolled serration 6mm u-bar
  • U-bar material grade 350 350MPa yield strength
  • Connectors & Half Links Included
  • Bolted assembly ready to install - All nuts treated with threadlocker and checked prior to delivery.

Quality Feature C&M Quality Process & Materials
Consistent fastener tensioning All assemblies are fitted with torque prevailing nuts and treated with threadlocker during installation. Every fastener assembly is checked and marked during assembly.
Electroplated slat coating Slats are electroplated with a zinc coating to enure consistent fastener tensioning during assembly
Rolled Serrations Slats are manufacutured using cold rolling and pressing of u-bar and serrations  to eliminate stress points and cracking
Grade 350 slat material Slats are rolled from grade 350 material ensuring resistance to bending and cracking
84396929 48103499
